AR42.10-P-1600WA Remove/Check/Install Front Axle Brake Pads

AR42.10-P-1600WA Remove/Check/Install Front Axle Brake Pads

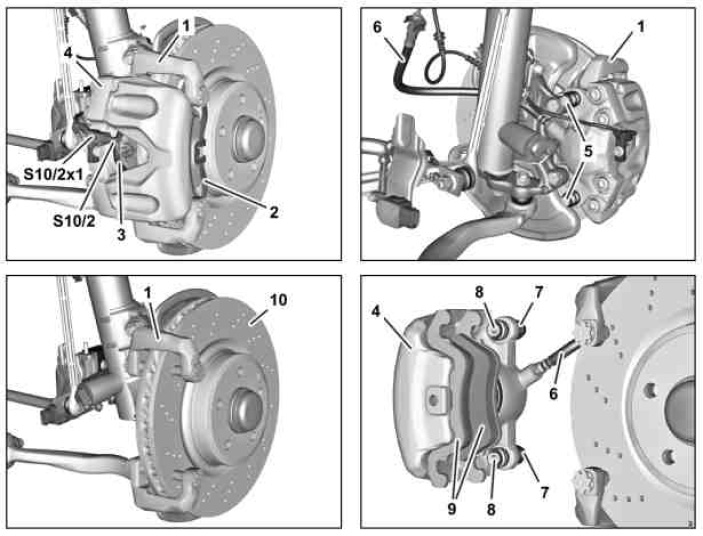

MODEL 172 (except 172.475) with divided brake caliper support





1 Caliper support
2 Spring
3 Dust boot
4 Brake caliper
5 Bolts
6 Brake hose
7 Seal boot
8 Guide sleeve
9 Brake pads
10 Brake disk

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector

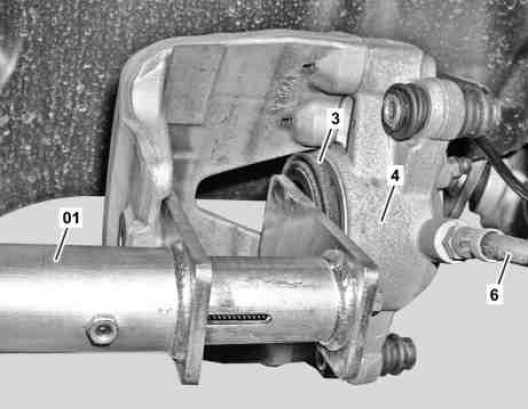

01 pusher tool
3 Dust boot
4 Brake caliper
6 Brake hose














000 589 52 43 00
Pusher tool
