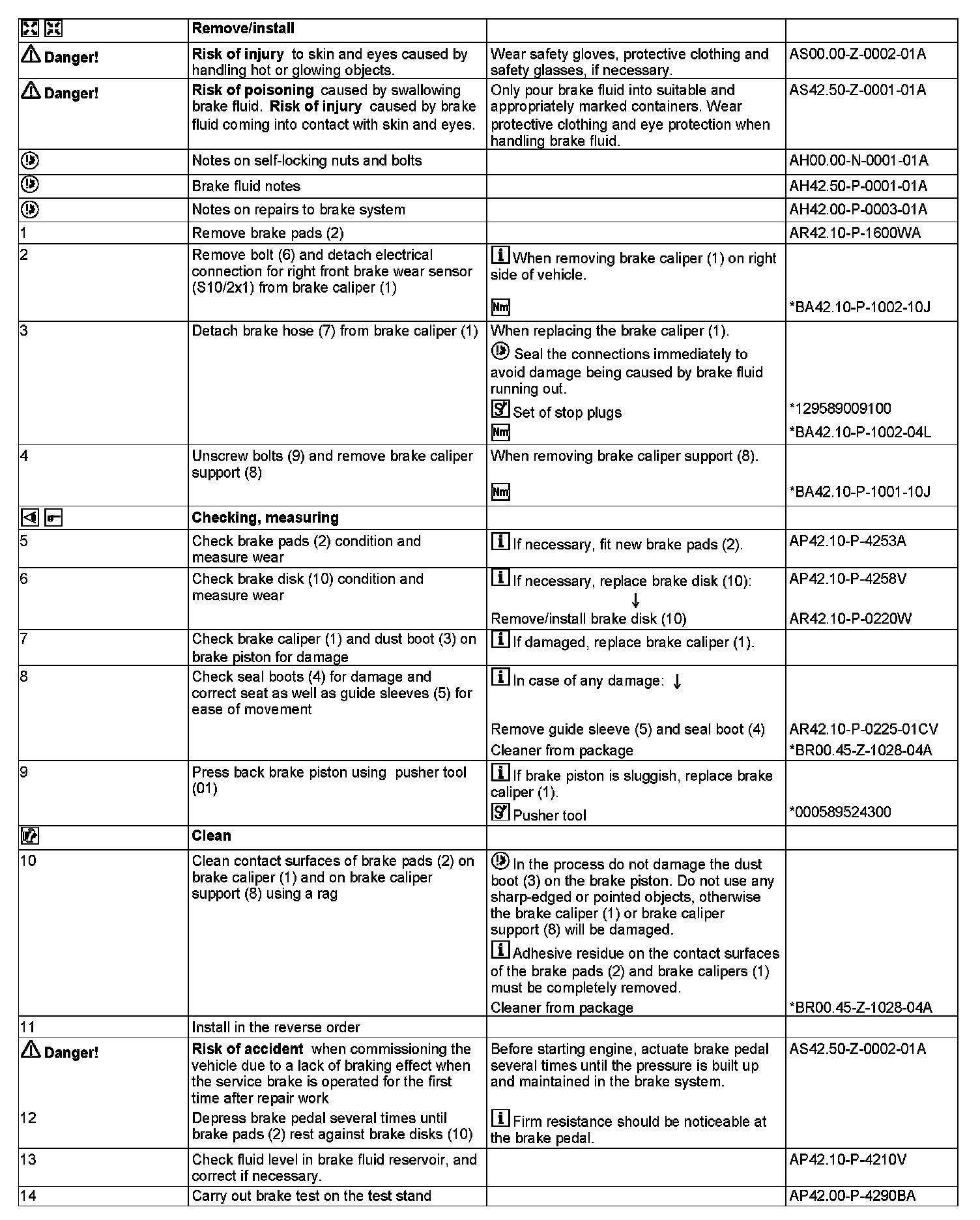

AR42.10-P-0070WA Remove/Install Front Axle Brake Caliper

AR42.10-P-0070WA Remove/Install Front Axle Brake Caliper
MODEL 172 (except 172.475) with divided brake caliper support

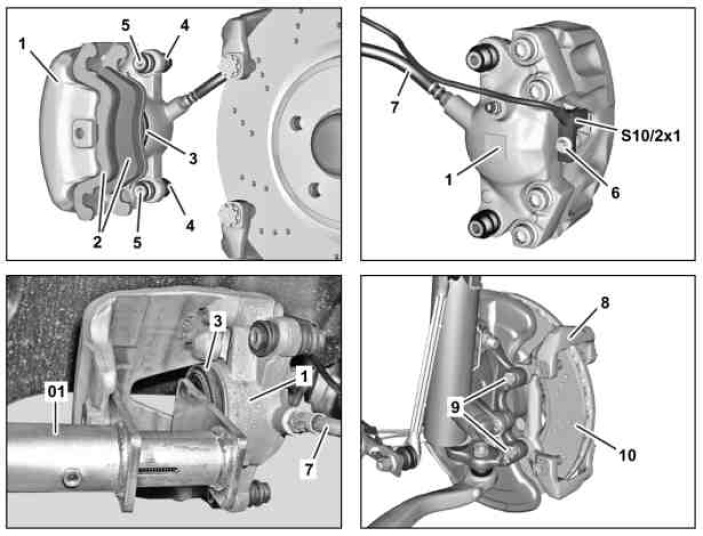

01 pusher tool
1 Brake caliper
2 Brake pads
3 Dust boot
4 Seal boot
5 Guide sleeve
6 Screw
7 Brake hose
8 Caliper support
9 Bolts
10 Brake disk

S10/2x1 Electrical connector Right front brake wear sensor

















000 589 52 43 00
Pusher tool





129 589 00 91 00
Set of stop plugs
