GF42.45-P-4810RD Component Description For Yaw Rate Sensor For Lateral and Longitudinal Acceleration

GF42.45-P-4810RD Component Description For Yaw Rate Sensor For Lateral and Longitudinal Acceleration
MODEL 172.4





B24/15 Yaw rate, lateral and longitudinal acceleration sensor

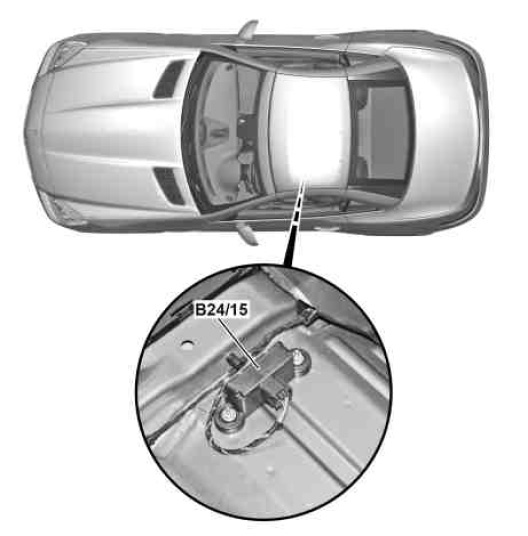

Location
The yaw rate, lateral and longitudinal acceleration sensor is located below the driver's seat on the vehicle floor.

Task
The yaw rate, lateral and longitudinal acceleration sensor measures the rotational speed about the vertical axis.
The integrated lateral acceleration sensor (AY sensor) measures the lateral acceleration.
The integrated longitudinal acceleration sensor (AX pickup) determines the pitching motion.
The signals are read in by the Electronic Stability Program control unit (N30/4) over the vehicle dynamics CAN (CAN H).
