Interior - Noises From Front Seat Paneling
Noises caused by contact between backrest and rear wall panelingTopic number LI91.10-P-054241
Version 1
Design group 91.10 Front seats
Date 09-17-2012
Validity Model series 172 up to VIN 049628
Reason for change
Complaint:
Noises caused by contact between backrest and rear wall paneling.
Cause:
Unfavorable material pairing between stop buffer and rear wall paneling.
Remedy:
Installation of flocked stop buffers.

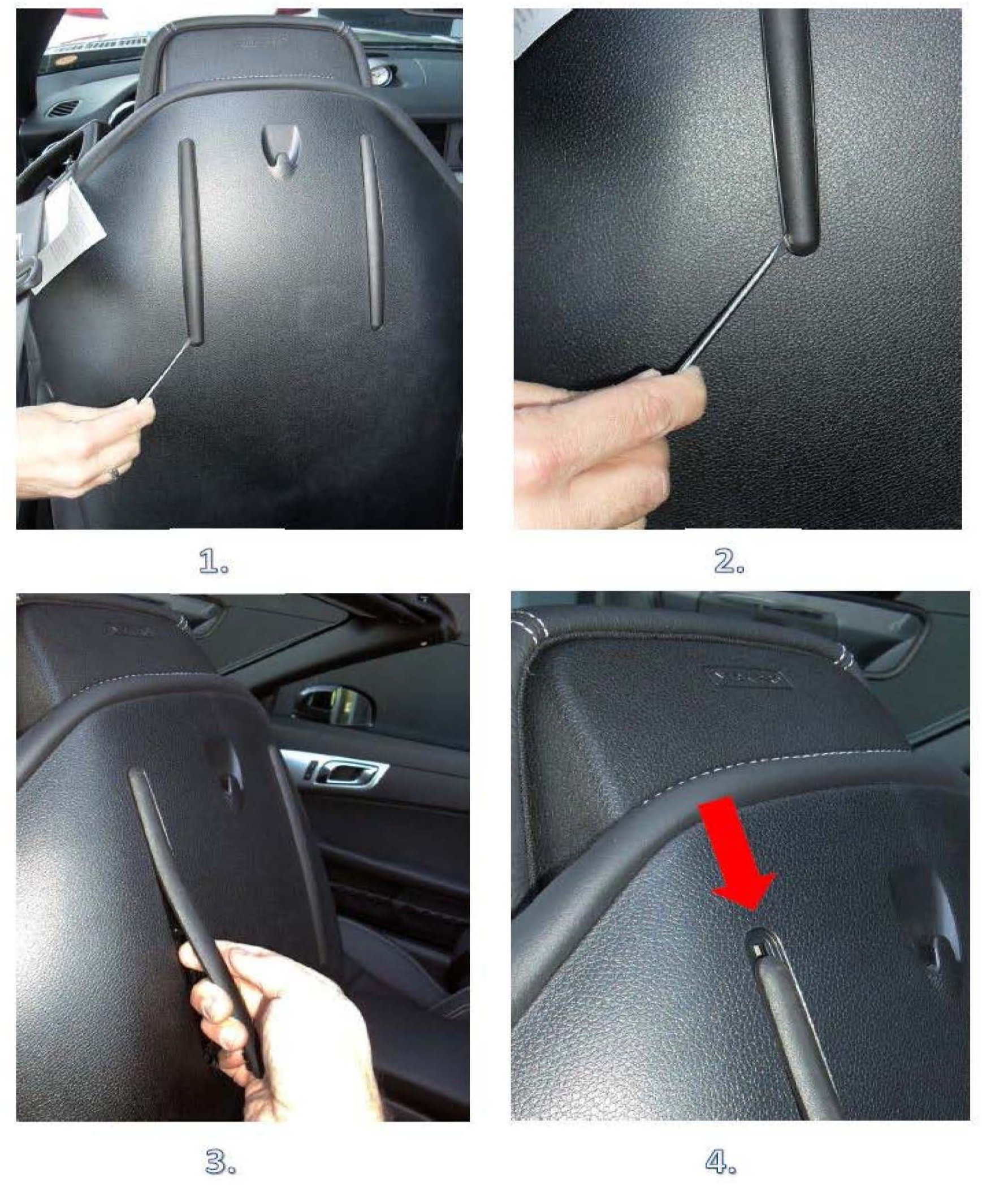

Removal (see instructions):
^ Unclip bottom of stop buffer using a small screwdriver
^ Using your hand, also unclip center part
^ Remove buffer by pulling downward
Installation:
^ Install flocked stop buffers in reverse order

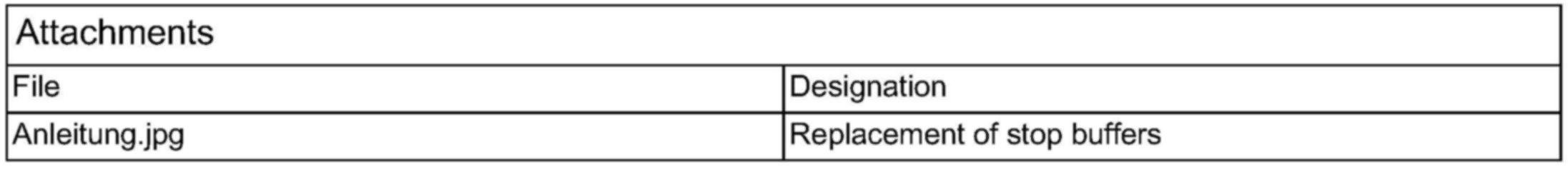

Attachments

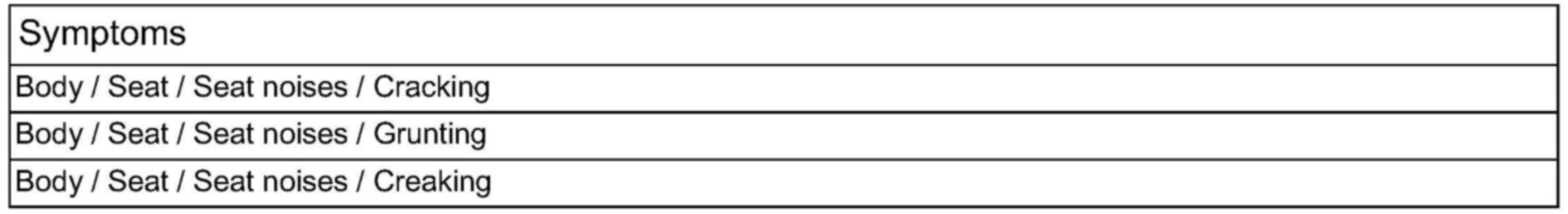

Symptoms

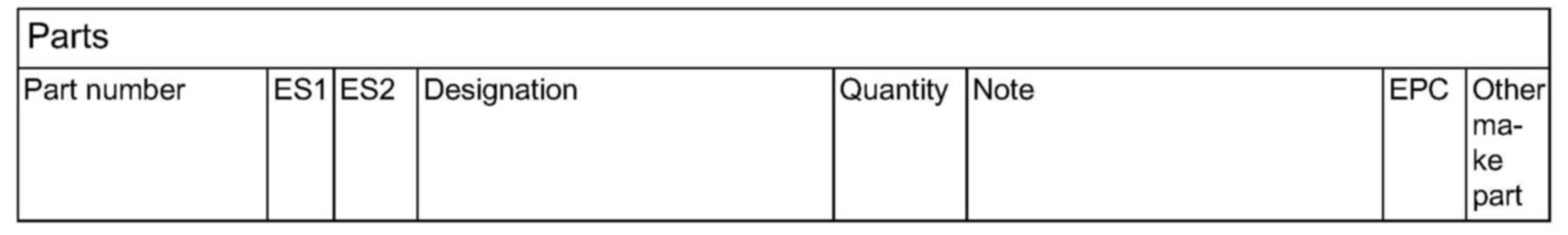

Parts
Work units
Attachment
