AR91.18-P-1820W Remove/Install Front Seat Backrest Cover

AR91.18-P-1820W Remove/Install Front Seat Backrest Cover
MODEL 172.4

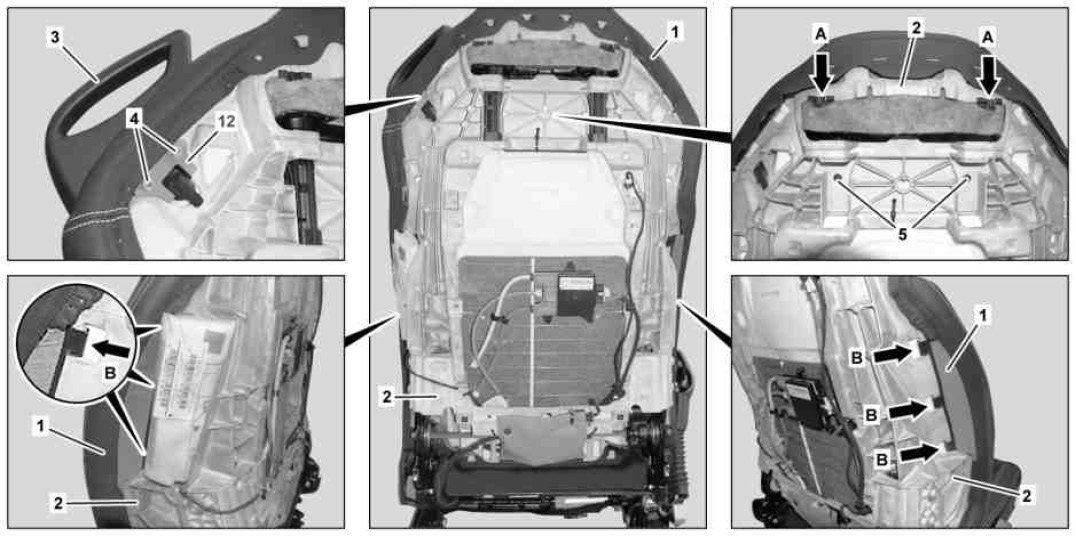

1 Cover
2 Backrest frame
3 Seat belt guide
4 Bolts
5 Bolts
12 Support plate

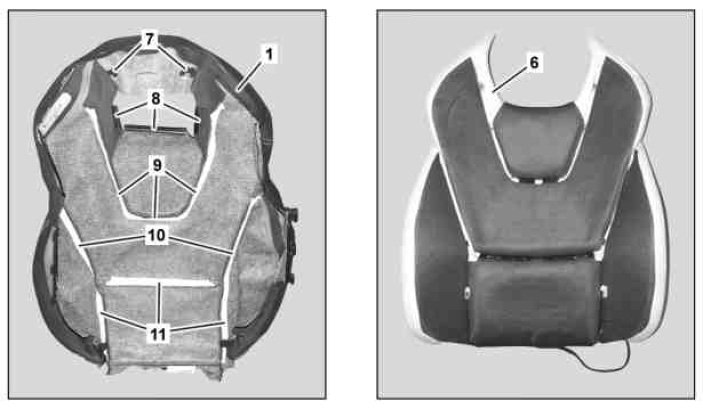

1 Cover
6 Padding
7 Hook
8 Terminal strips
9 Staple wires
10 Staple wires
11 Staple wires
