AR91.18-P-1800W Remove/Install Front Seat Cushion Cover

AR91.18-P-1800W Remove/Install Front Seat Cushion Cover
MODEL 172.4

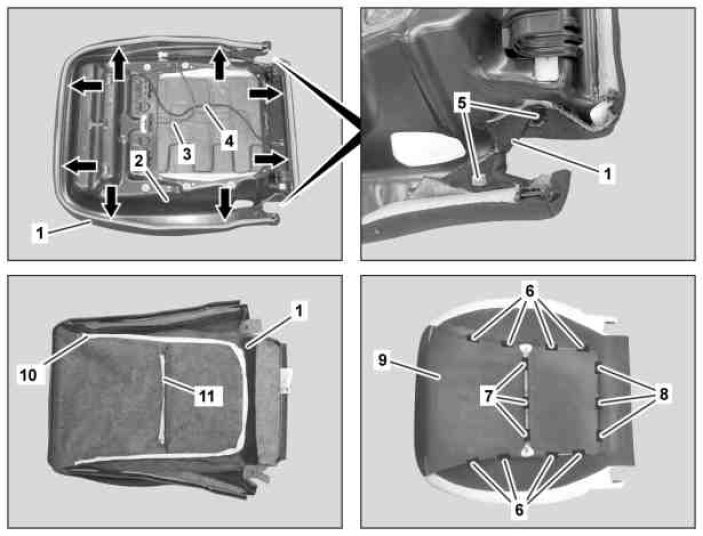

Shown on front passenger seat cushion with code (873) Left and right front seat heaters

1 Cover
2 Seat cushion frame
3 Electrical line (passenger side only)
4 Electrical line (only with code (873) Left and right front seat heaters)
5 Retaining tabs
6 Staple clips
7 Staple clips
8 Staple clips
9 Seat cushion upholstery
10 Staple wire
11 Staple wire
