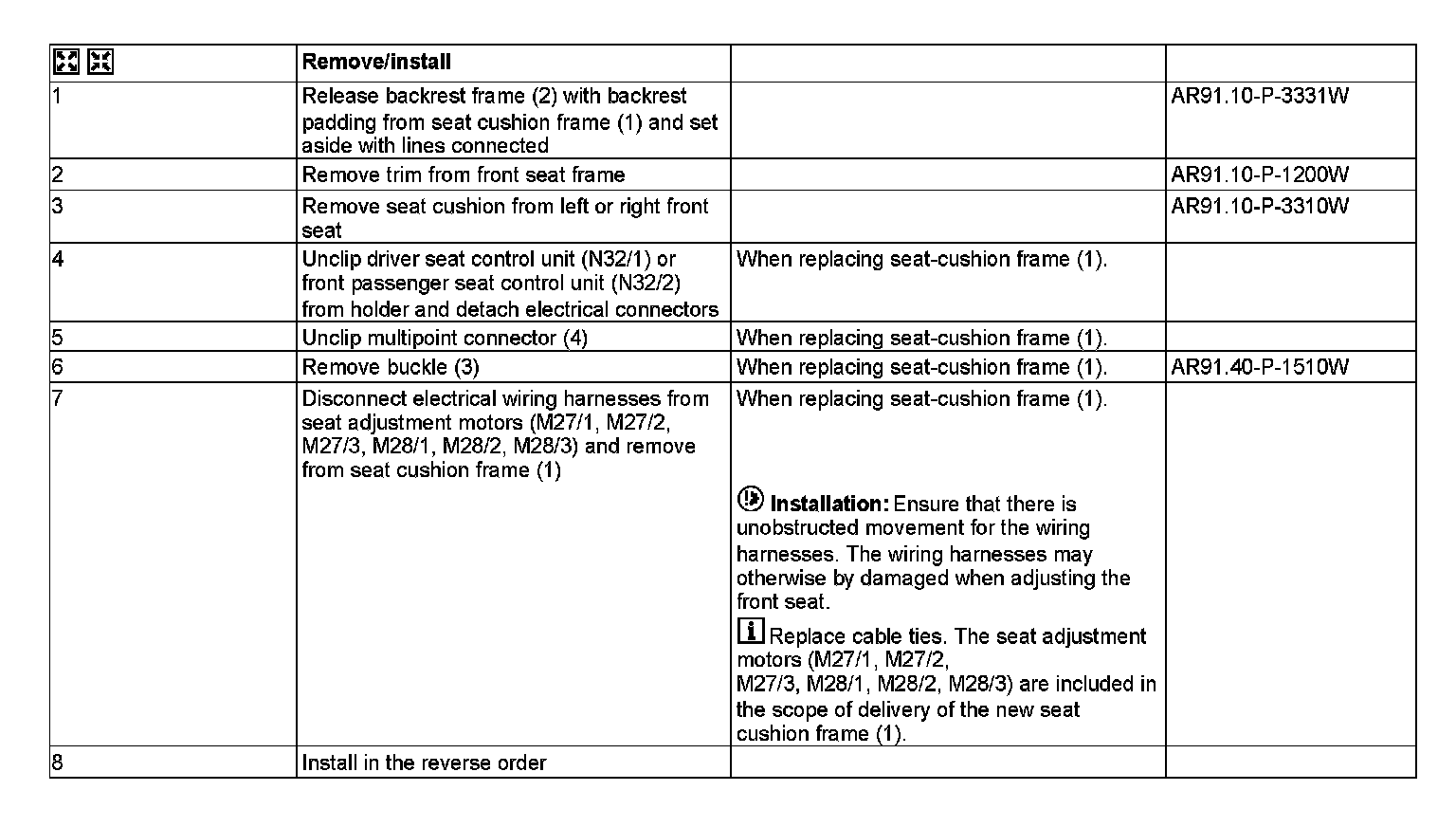

AR91.10-P-3334W Remove/Install Seat Cushion Frame

AR91.10-P-3334W Remove/Install Seat Cushion Frame
MODEL 172.4
- with CODE (275) Memory package for electrically adjustable front seats





Shown on left seat cushion frame (1) without backrest padding

1 Seat cushion frame
2 Backrest frame
3 Seat belt buckle
4 Multipoint connector

M27/1 Driver seat fore/aft adjustment motor
M27/2 Driver seat height adjustment motor
M27/3 Driver seat inclination adjustment motor
M28/1 Front passenger seat fore/aft adjustment motor
M28/2 Front passenger seat height adjustment motor
M28/3 Front passenger seat inclination adjustment motor
N32/1 Driver seat control unit
N32/2 Front passenger seat control unit
