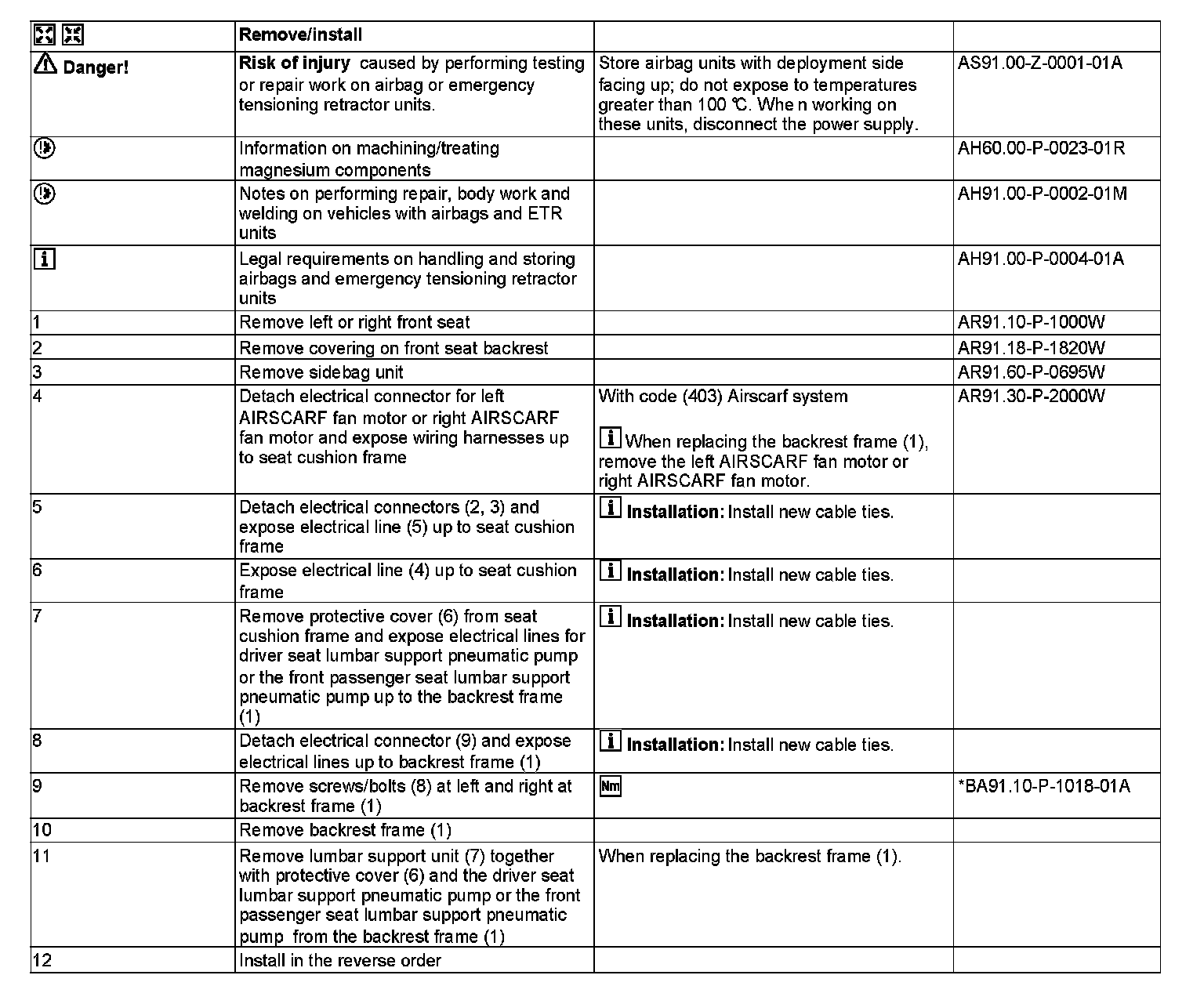

AR91.10-P-3331W Remove/Install Front Seat Backrest Frame

AR91.10-P-3331W Remove/Install Front Seat Backrest Frame
MODEL 172.4
- with CODE (275) Memory package for electrically adjustable front seats

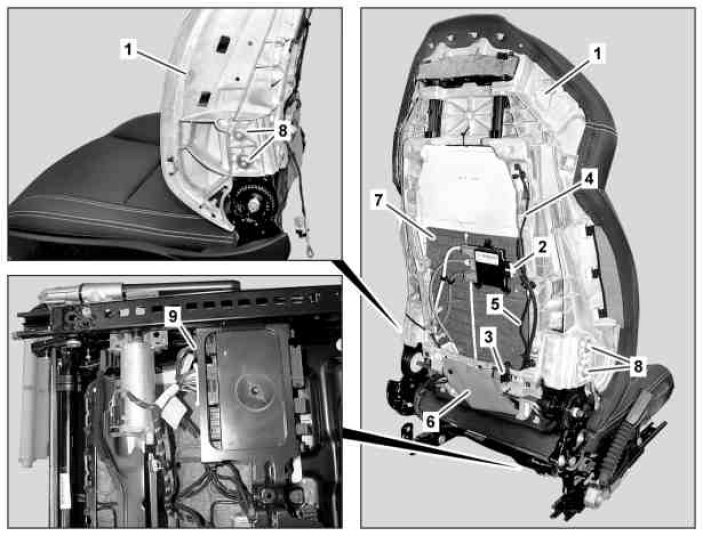

1 Backrest frame
2 Electrical connector
3 Electrical connector
4 Electrical line
5 Electrical line
6 Protective cover
7 Lumbar support unit
8 Bolts
9 Electrical connector
