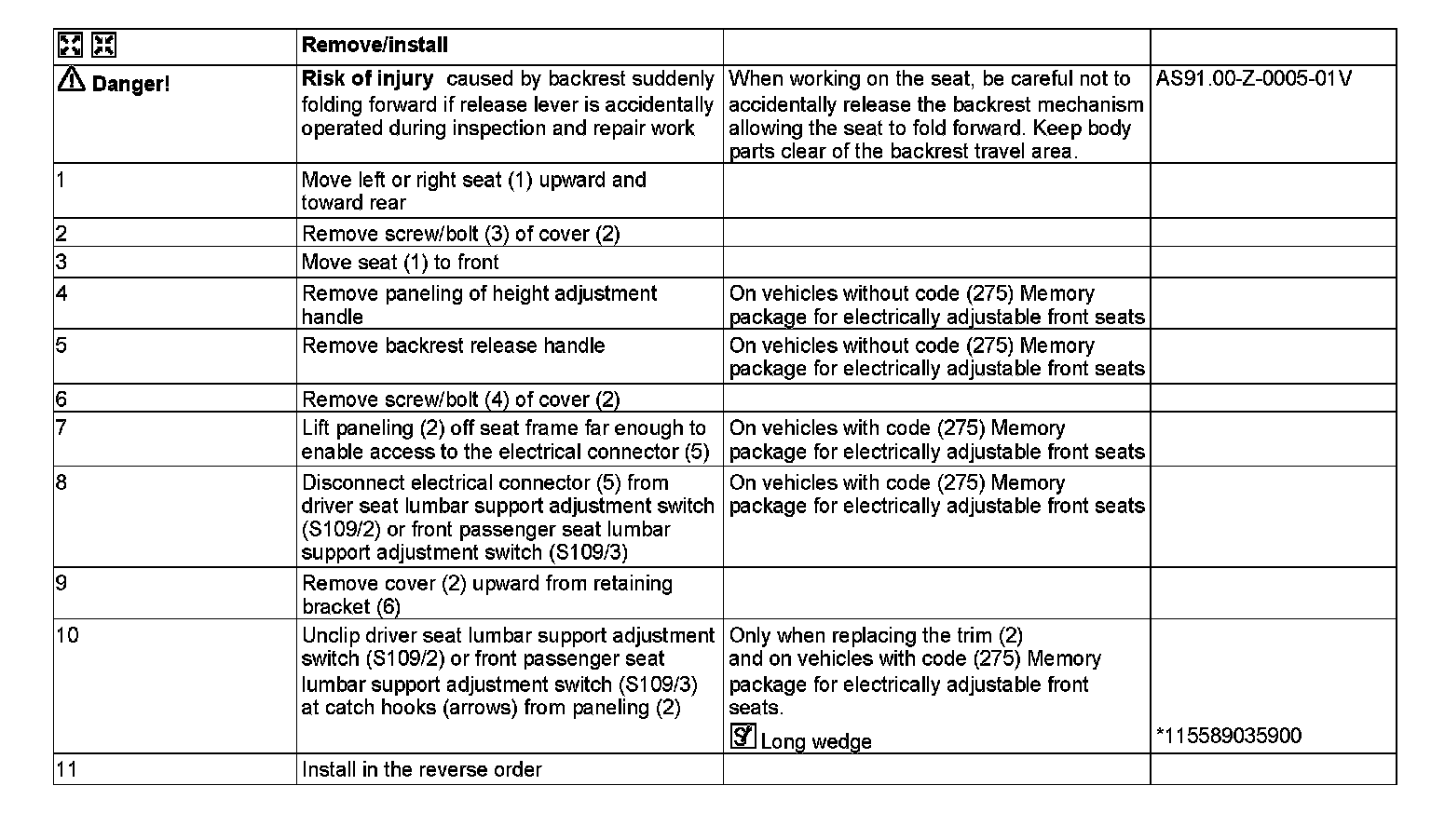

AR91.10-P-1200W Remove/Install Front Seat Frame Covers

AR91.10-P-1200W Remove/Install Front Seat Frame Covers
MODEL 172.4

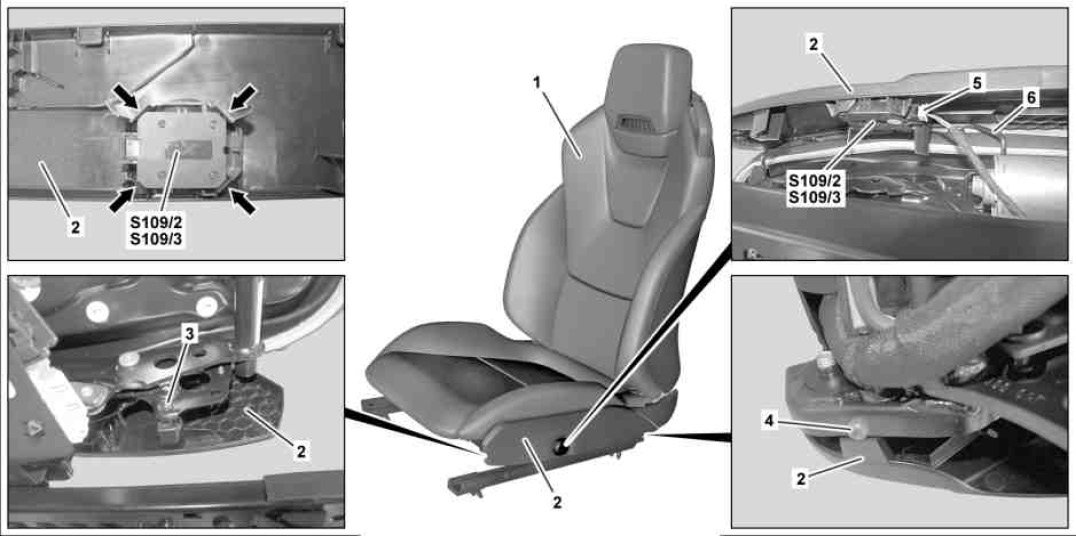

Shown on driver seat with code (275) Memory package for electrically adjustable front seats

1 Seat
2 Cover
3 Screw
4 Screw
5 Electrical connector (with code (275) Memory package for electrically adjustable front seats)
6 Retaining clip

S109/2 Driver seat lumbar support adjustment switch (with code (275) Memory package for electrically adjustable front seats)
S109/3 Front passenger seat lumbar support adjustment switch (with code (275) Memory package for electrically adjustable front seats)








115 589 03 59 00
Long wedge
