Seat Fan: Service and Repair

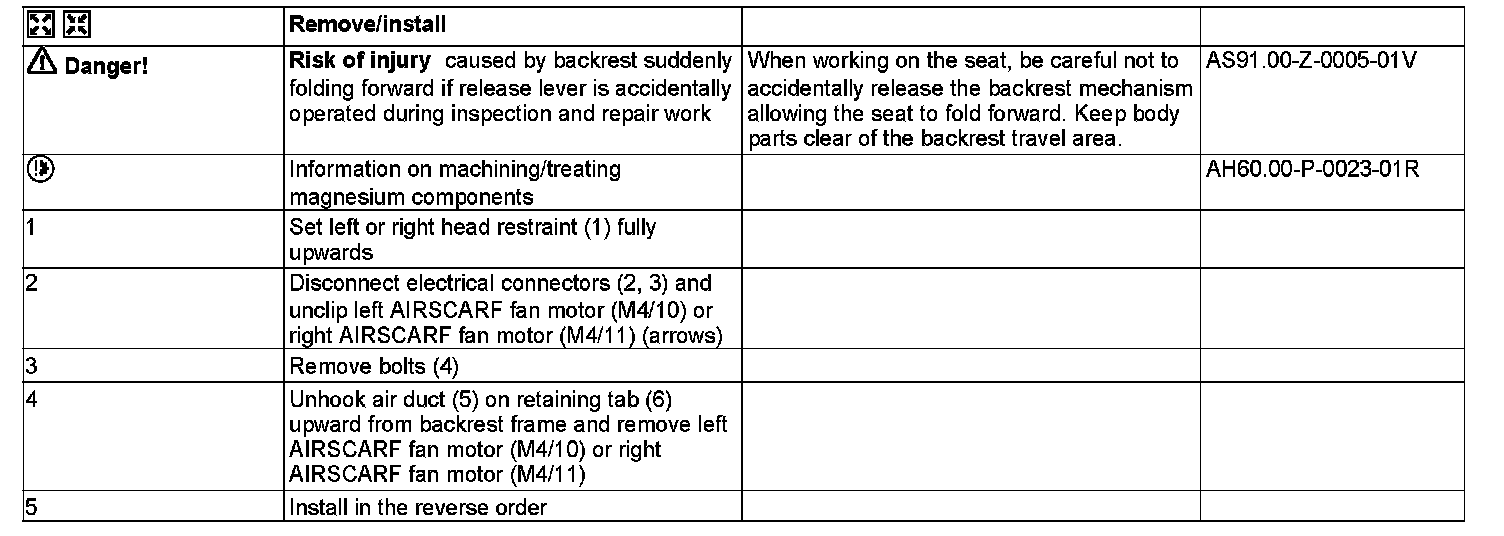

AR91.30-P-2000W Remove, Install AIRSCARF System Blower
MODEL 172.4
- with CODE (403) AIRSCARF system

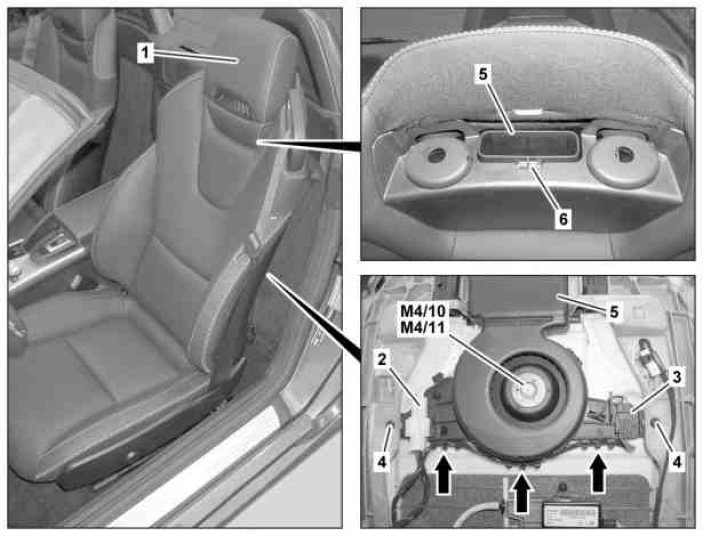

1 Head restraint
2 Electrical connector
3 Electrical connector
4 Screw
5 Air duct
6 Retaining tab

M4/10 Left AIRSCARF fan motor
M4/11 Right AIRSCARF fan motor
