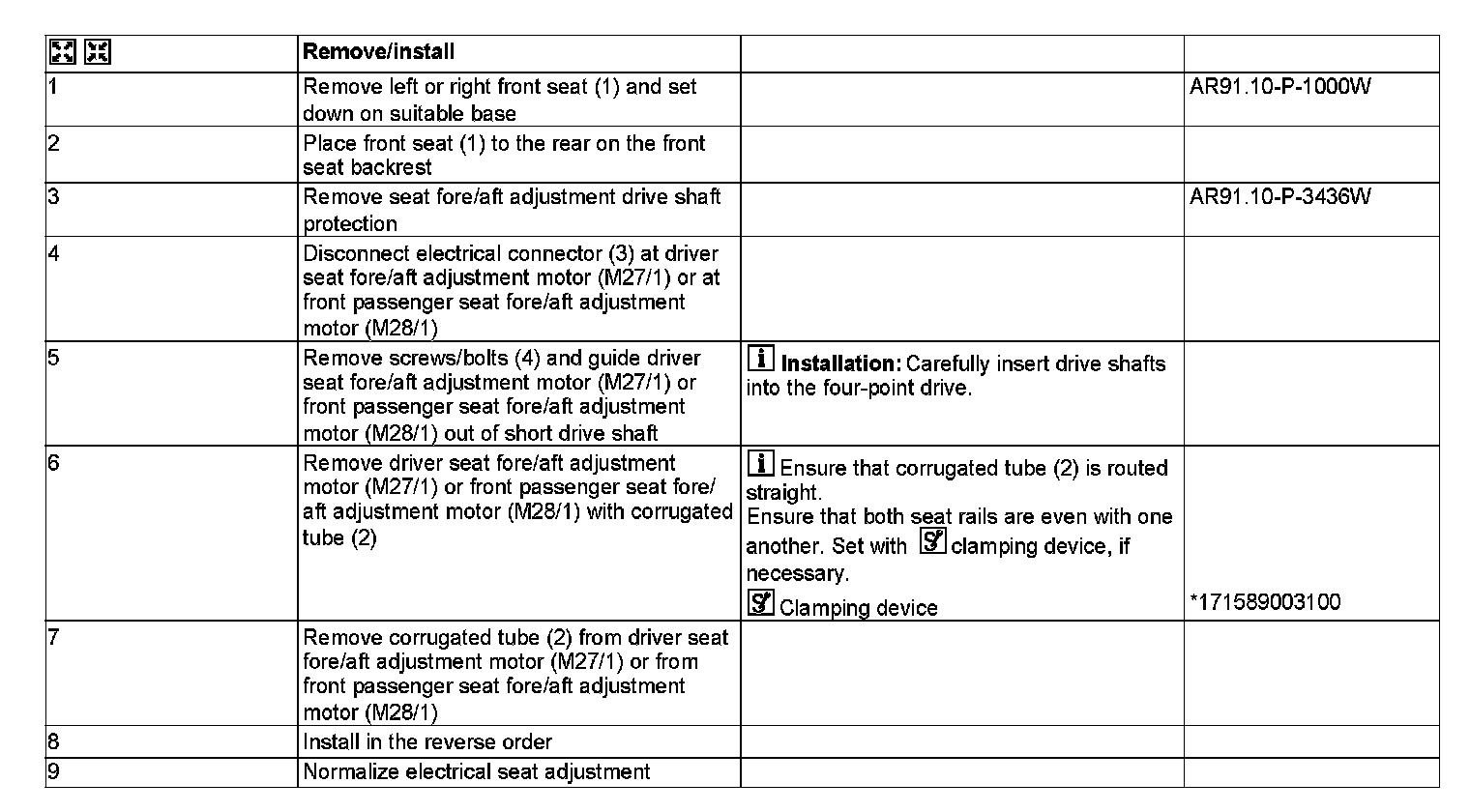

AR91.29-P-1425W Remove/Install Seat Adjustment Drive Motor (Forward/Back)

AR91.29-P-1425W Remove/Install Seat Adjustment Drive Motor (forward/Back)
MODEL 172.4
- with CODE (275) Memory package for electrically adjustable front seats

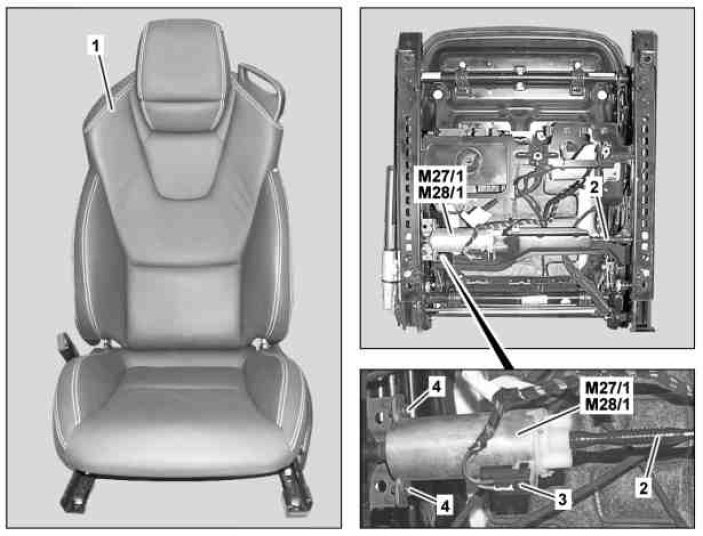

Shown on left front seat (1)

1 Front seat
2 Corrugated tube
3 Electrical connector
4 Screw

M27/1 Driver seat fore/aft adjustment motor
M28/1 Front passenger seat fore/aft adjustment motor








171 589 00 31 00
Clamping device
