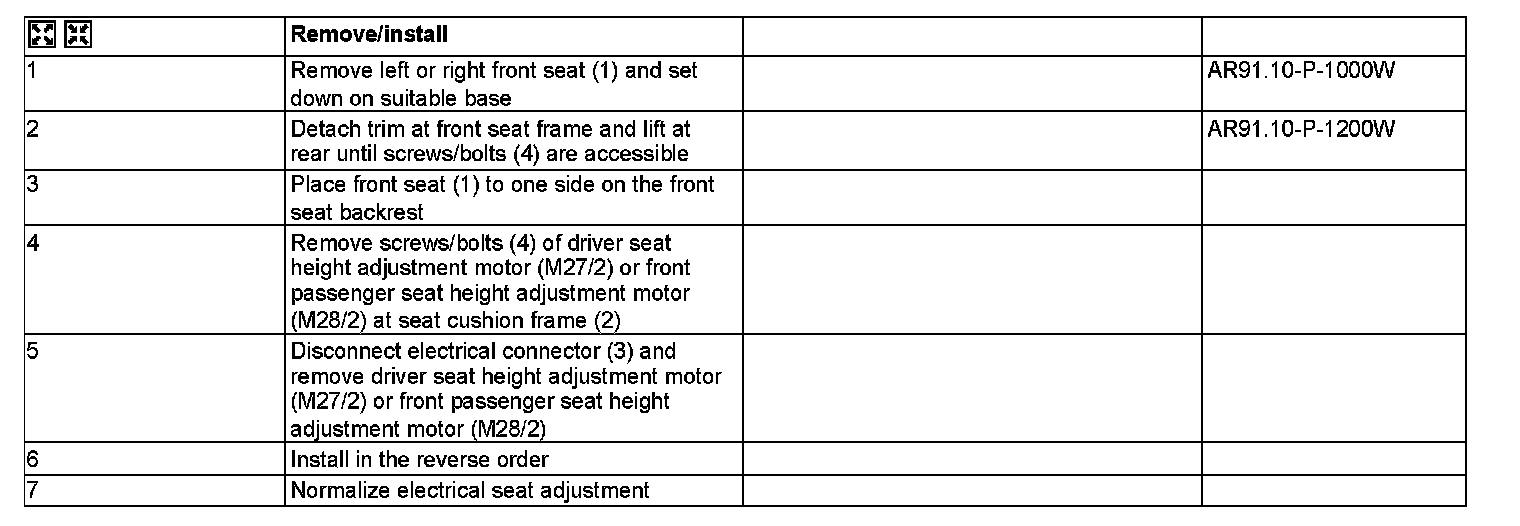

AR91.29-P-1423W Remove/Install Front Seat Height Adjustment Drive Motor (Rear, Raise/Lower)

AR91.29-P-1423W Remove/Install Front Seat Height Adjustment Drive Motor (rear, Raise/Lower)
MODEL 172.4
- with CODE (275) Memory package for electrically adjustable front seats





Shown on left front seat (1)

1 Front seat
2 Seat cushion frame
3 Electrical connector
4 Screw

M27/2 Driver seat height adjustment motor
M28/2 Front passenger seat height adjustment motor
