Mercedes Benz
>>
2012
>>
SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Specifications
>>
BA77.37-P-1000-01A Soft Top Hydraulic System
BA77.37-P-1000-01A Soft Top Hydraulic System
BA77.37-P-1000-01A Soft Top Hydraulic System

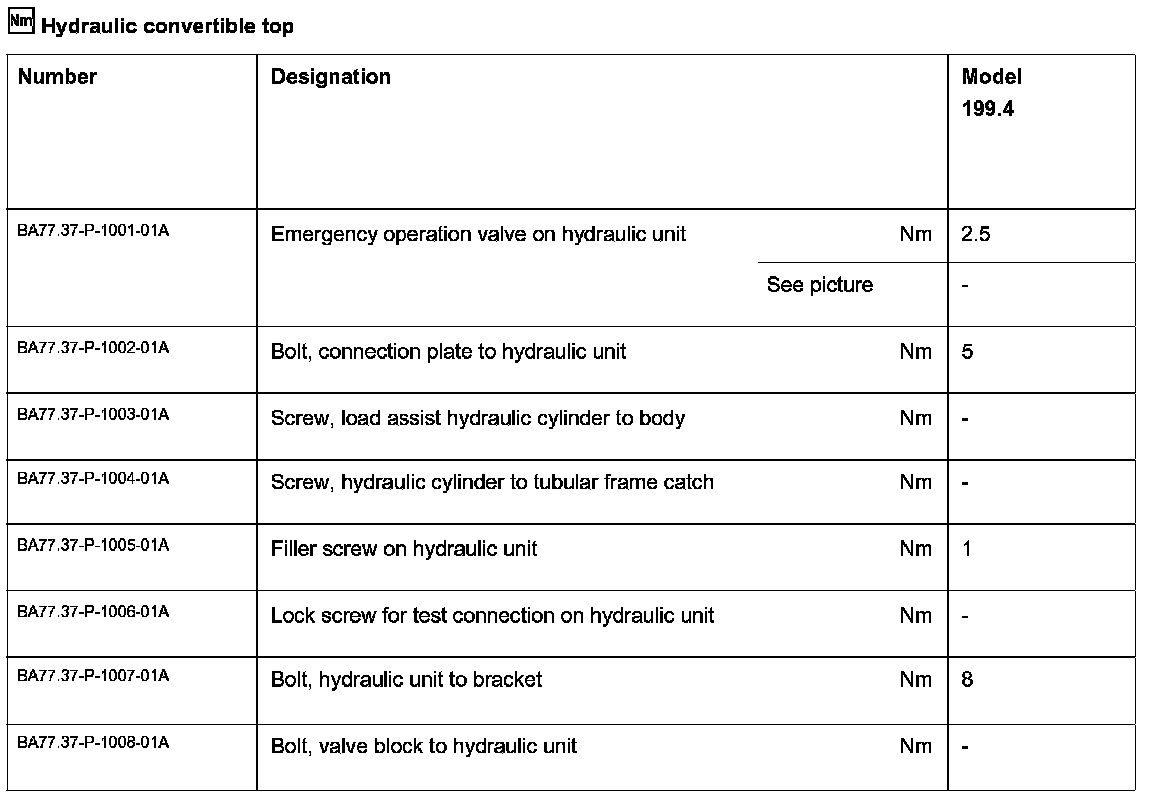

Hydraulic Convertible Top:

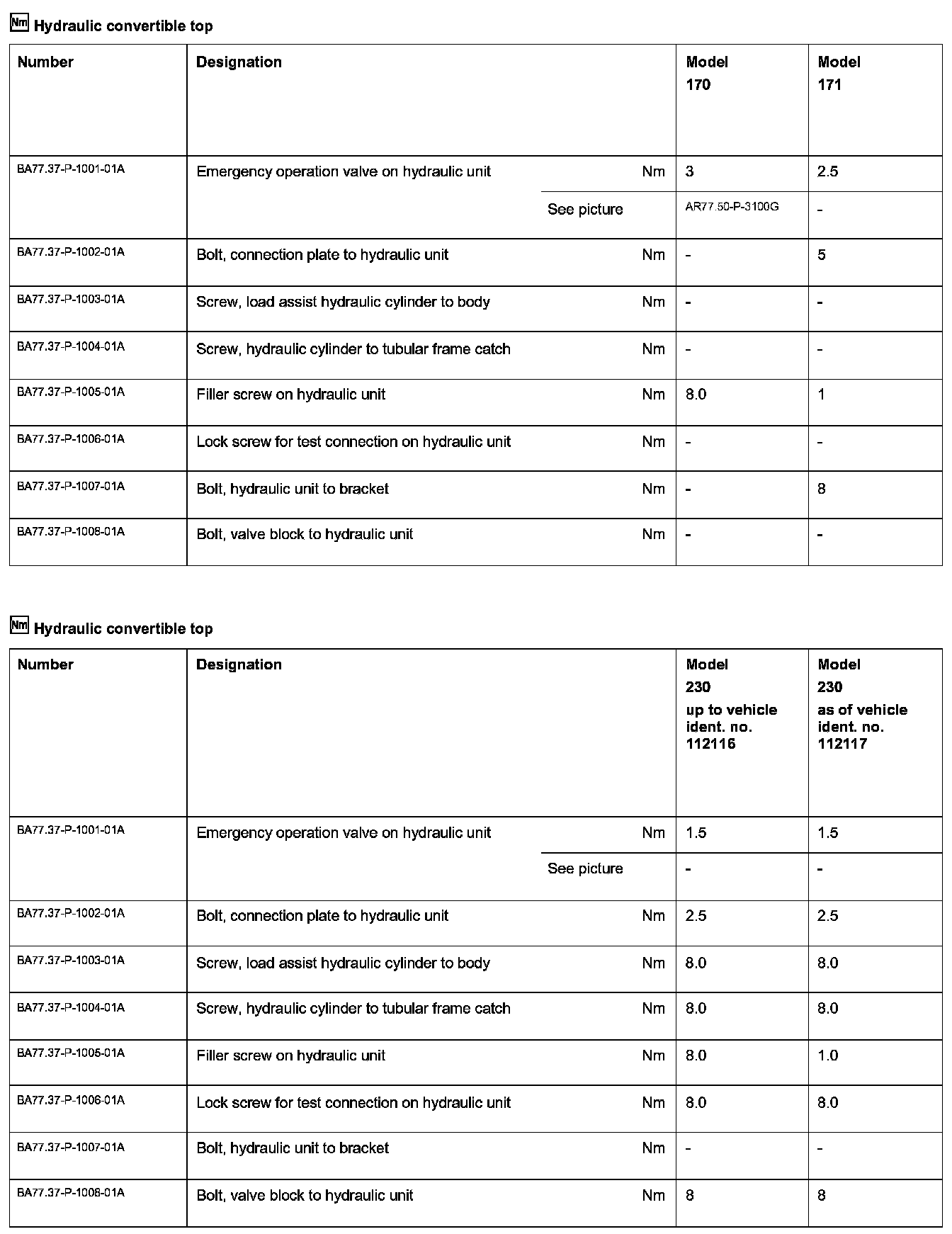

Hydraulic Convertible Top:
