AR77.50-P-6763W Remove/Install Paneling on C-Pillar Upper Section for Vario Roof

AR77.50-P-6763W Remove/Install Paneling on C-pillar Upper Section For Vario Roof
MODEL 172.4, 231

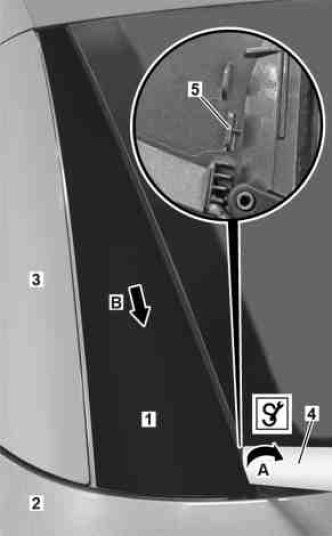

Illustrated on model 174.4

1 C-pillar cover
2 Trunk lid
3 C-pillar upper section
4 Assembly wedge
5 Catch lug








110 589 03 59 00
Mounting wedge
