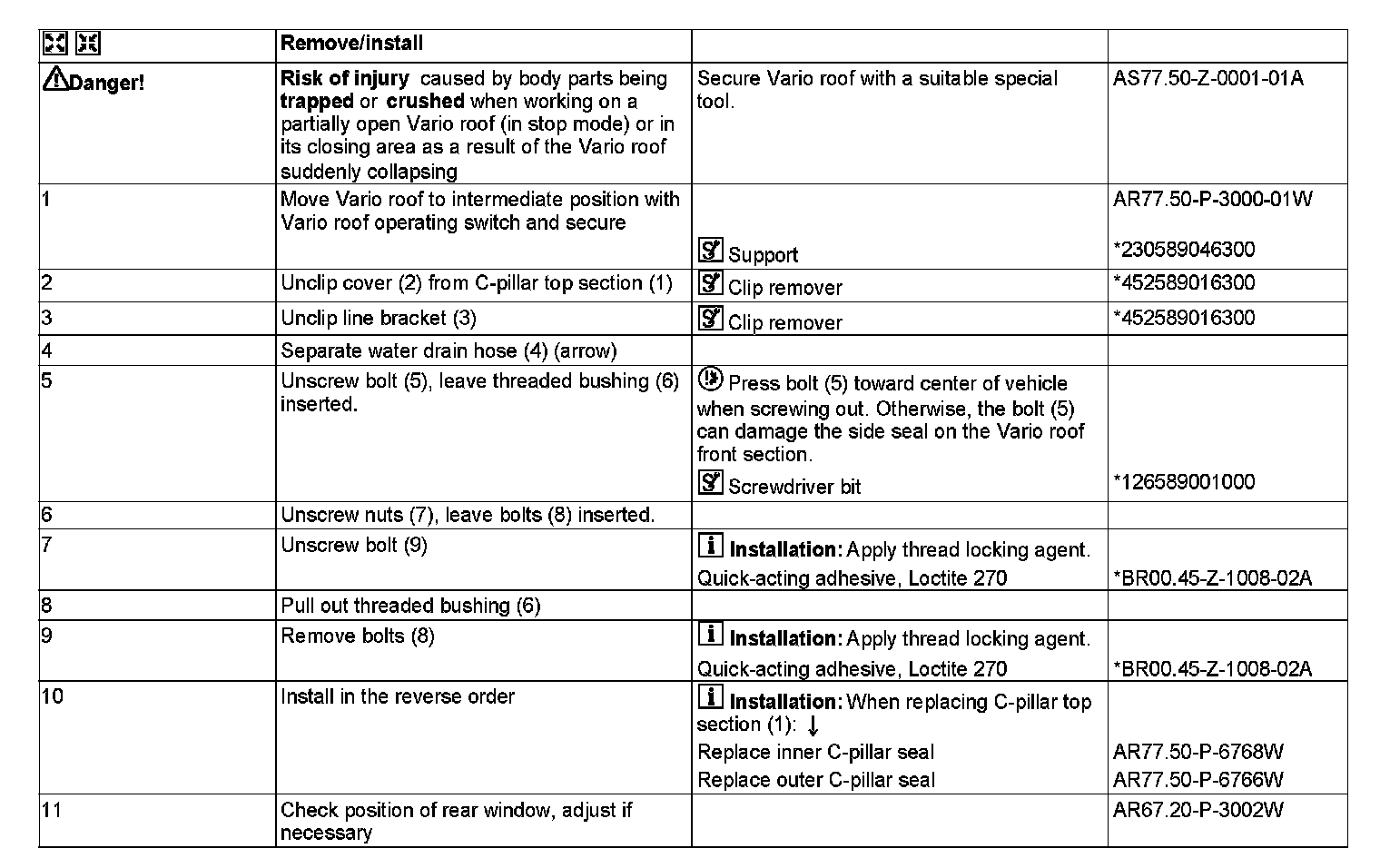

AR77.50-P-6760W Remove/Install C-Pillar Upper Section at Vario Roof

AR77.50-P-6760W Remove/Install C-pillar Upper Section At Vario Roof
MODEL 172.4

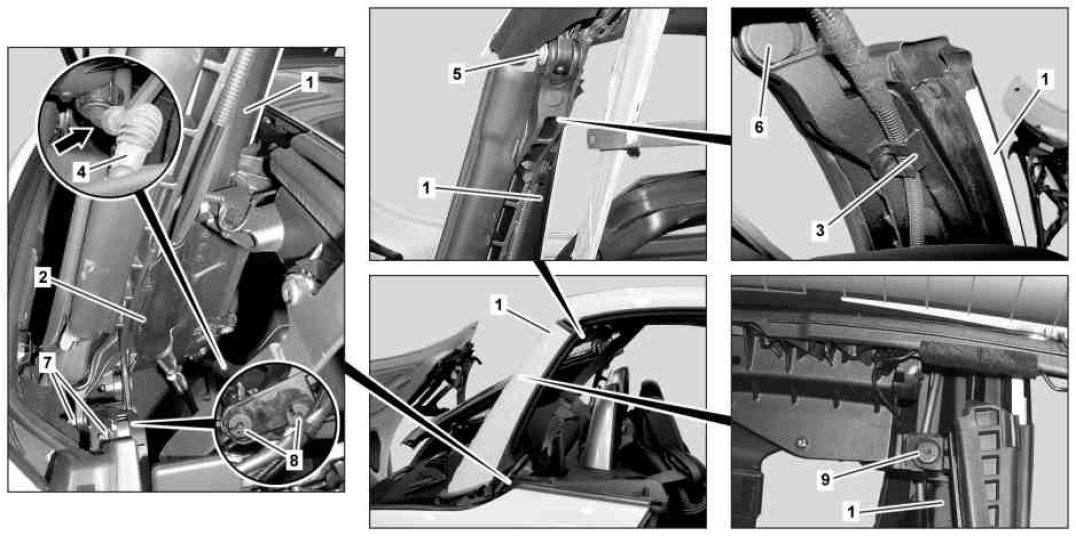

Shown on right
C-pillar top section (1)

1 C-pillar upper section
2 Cover
3 Line bracket
4 Water drain hose
5 Screw
6 Threaded bush
7 Nuts
8 Bolts
9 Screw








126 589 00 10 00
Screwdriver bit





230 589 04 63 00
Support





452 589 01 63 00
Snap-release tool
