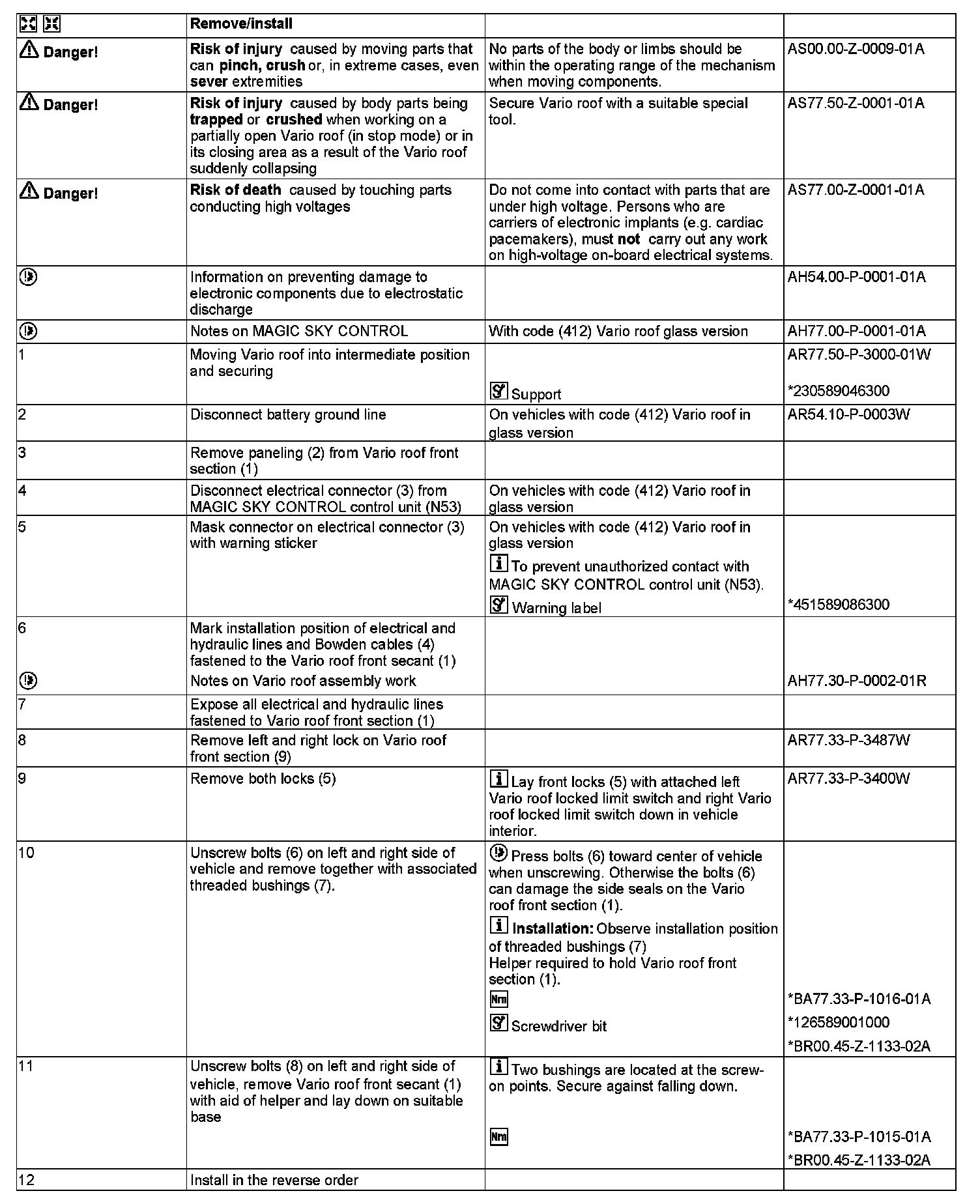

AR77.50-P-3100W Remove/Install Front Section of Vario Roof

AR77.50-P-3100W Remove/Install Front Section of Vario Roof
MODEL 172.4

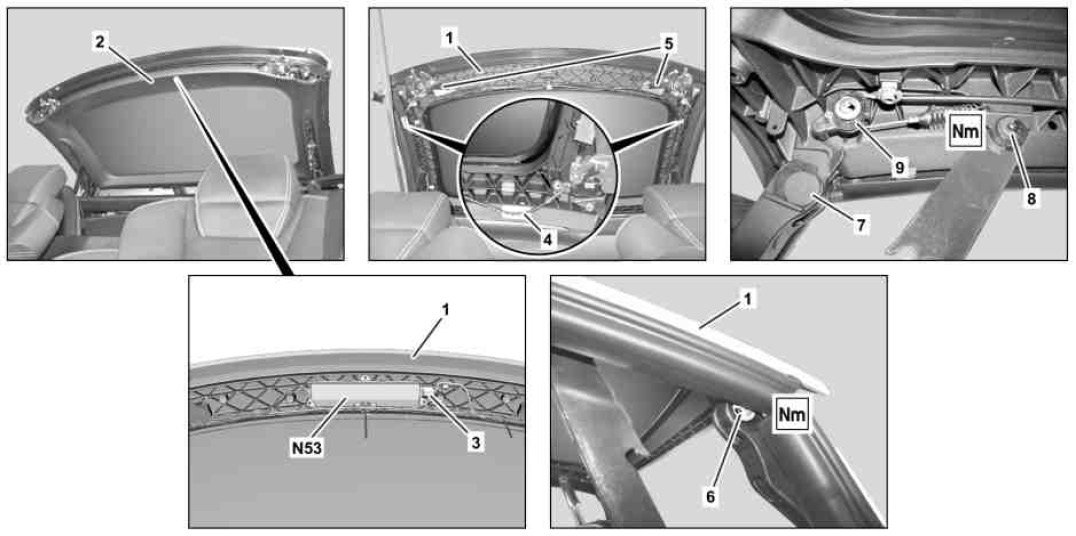

1 Vario roof front section
2 Cover
3 Electrical connector (with code (412) Vario roof in glass version)
4 Bowden cable
5 Front locks
6 Bolt
7 Threaded bush
8 Screw
9 Lock on Vario roof front section

N53 MAGIC SKY CONTROL control unit (with code (412) Vario roof in glass version)











126 589 00 10 00
Screwdriver bit





230 589 04 63 00
Support





451 589 08 63 00
Warning label
