AR77.50-P-3000W Remove/Install Vario Roof

AR77.50-P-3000W Remove/Install Vario Roof
MODEL 172.4

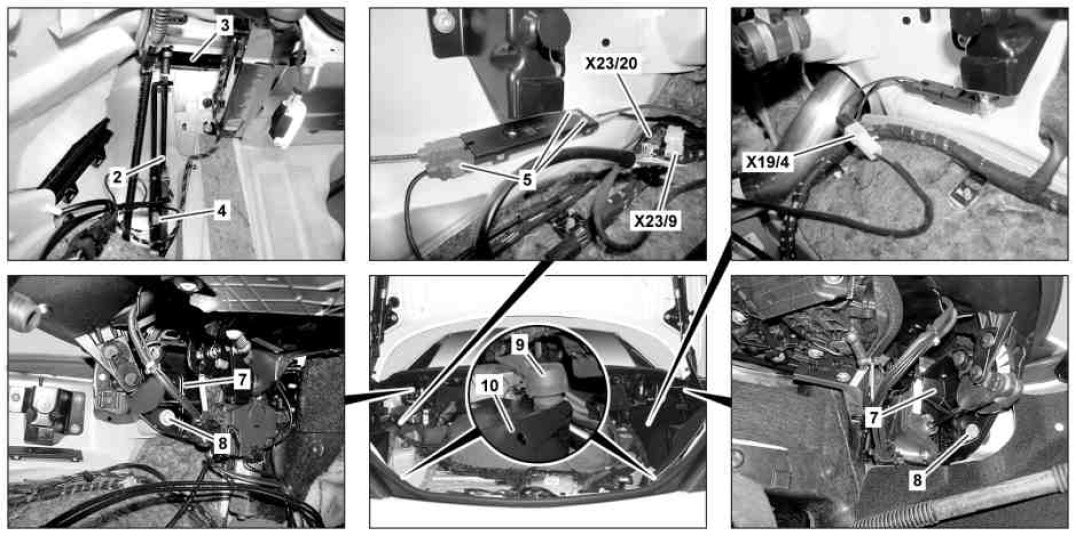

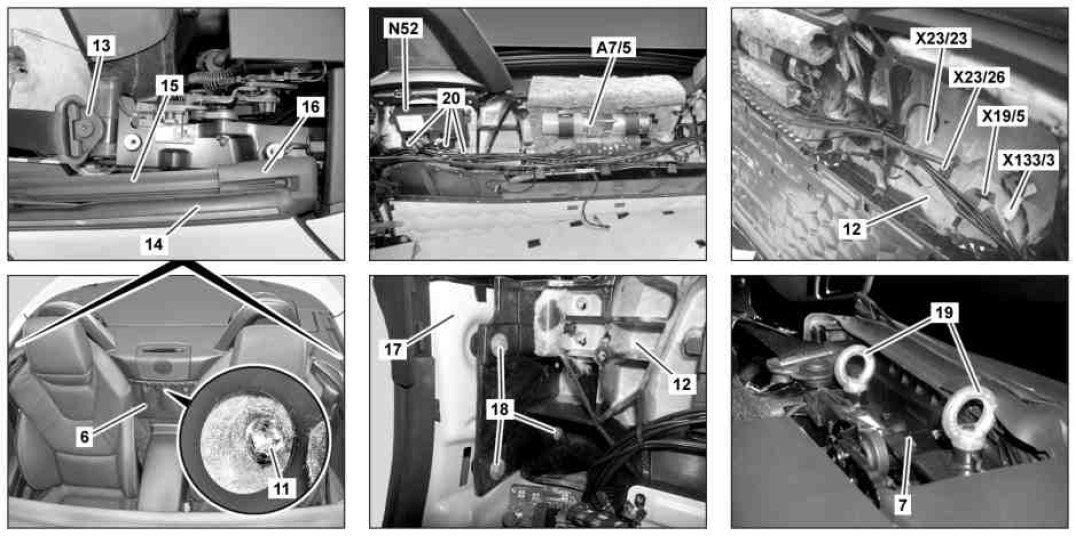

2 Trunk lid actuation hydraulic cylinder
3 Tubular frame
4 Electrical connector
5 Electrical connectors
7 Vario roof main bearing
8 Screw
9 Rubber pad
10 Support

X19/4 Heated rear window electrical connector (+)
X23/9 Rear shelf electrical connector
X23/20 Rear shelf limit switch electrical connector





6 Pocket
7 Vario roof main bearing
11 Emergency operation valve
12 Vario roof crossmember
13 Seat belt guide bracket
14 Outer sealing rail
15 Inner sealing rail
16 Trunk lid seal
17 Center column
18 Bolts
19 Eyelets
20 Electrical connectors

A7/5 Vario roof control hydraulic unit
N52 Vario roof control control unit
X19/5 Heated rear window electrical connector (-)
X23/23 Vario roof 'Stowed' electrical connector
X23/26 Vario roof 'Locked' electrical connector
X133/3 MAGIC SKY CONTROL electrical connector (with code (412) Vario roof in glass version)

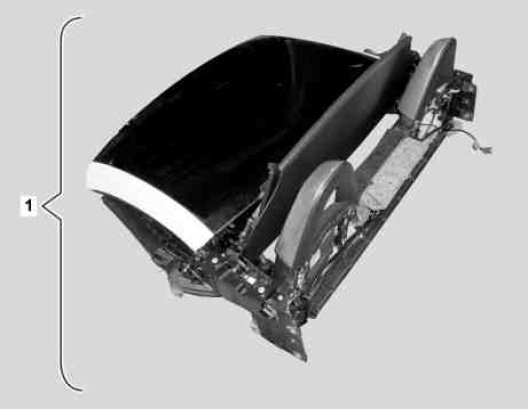

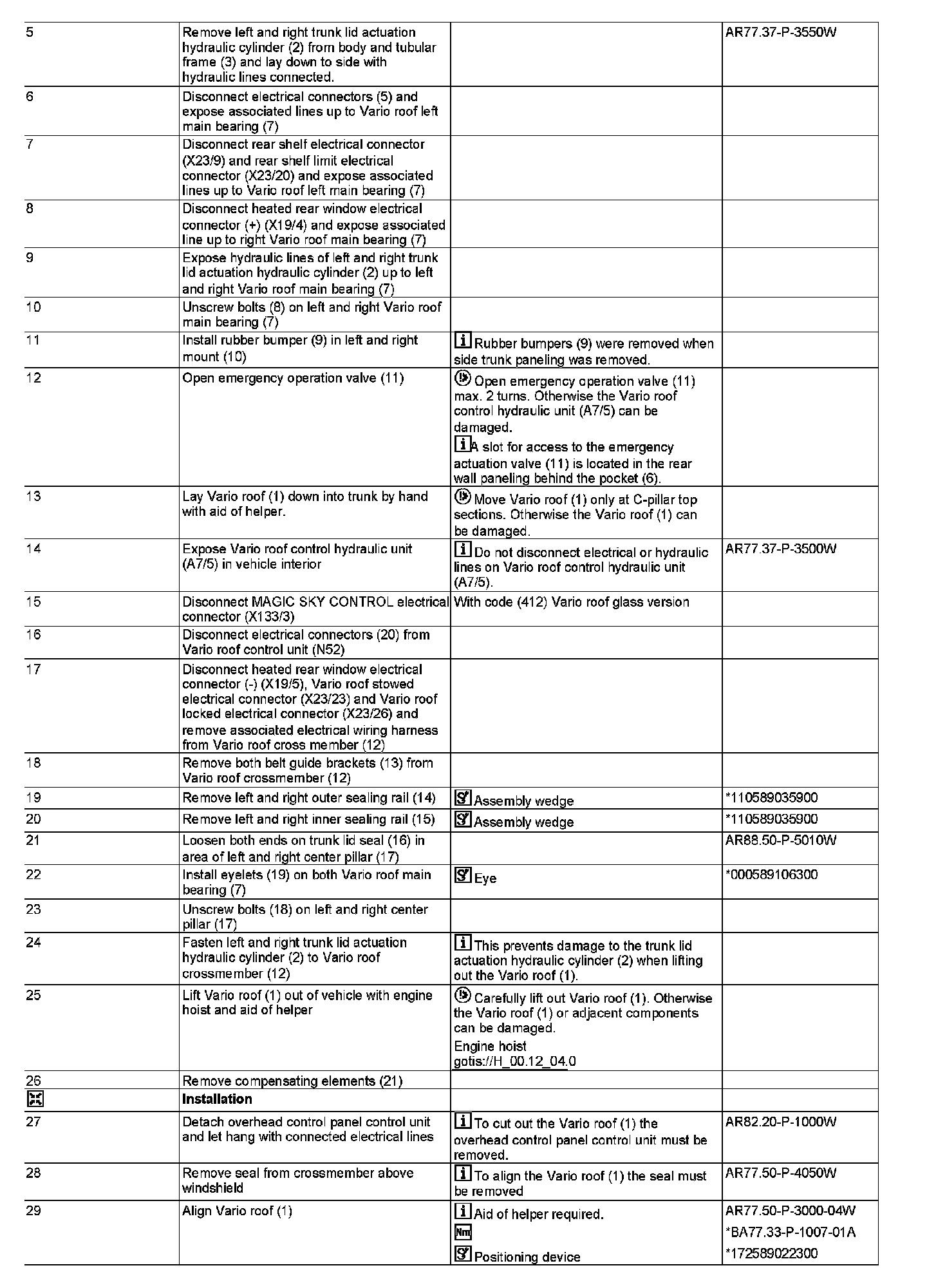

1 Vario roof





17 Center column

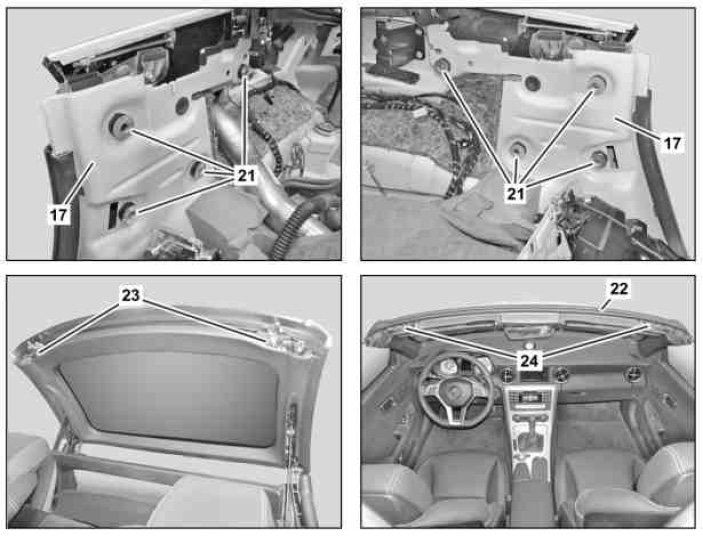

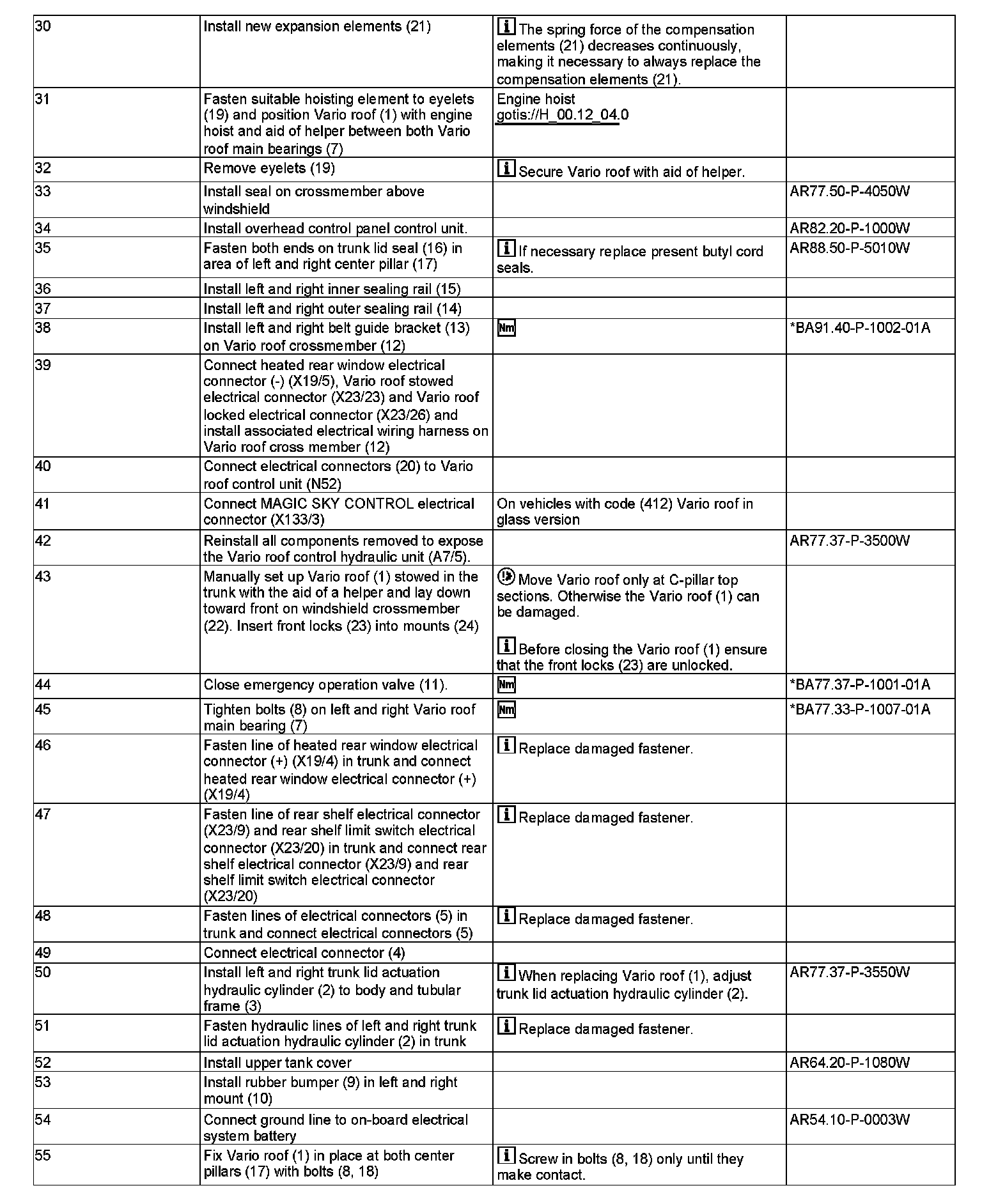

21 Expansion elements
22 Windshield crossmember
23 Front locks
24 Supports























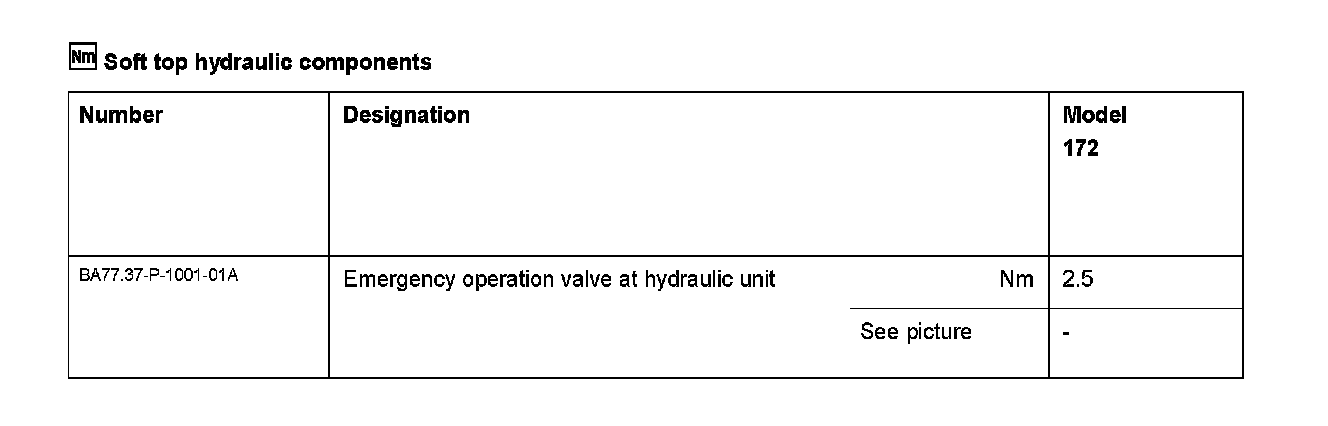

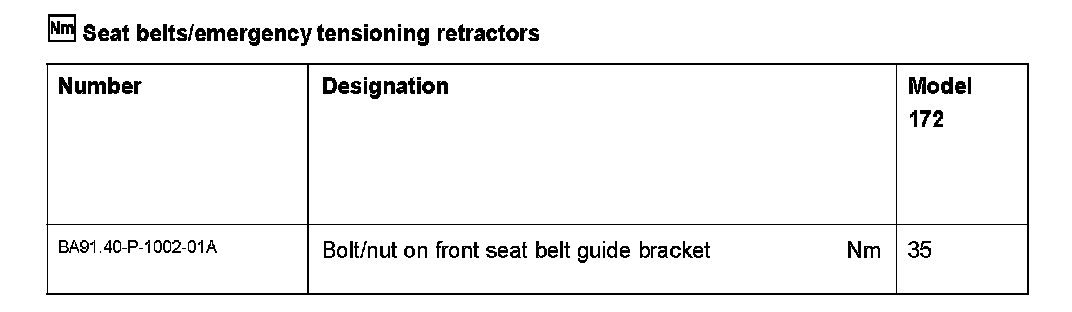

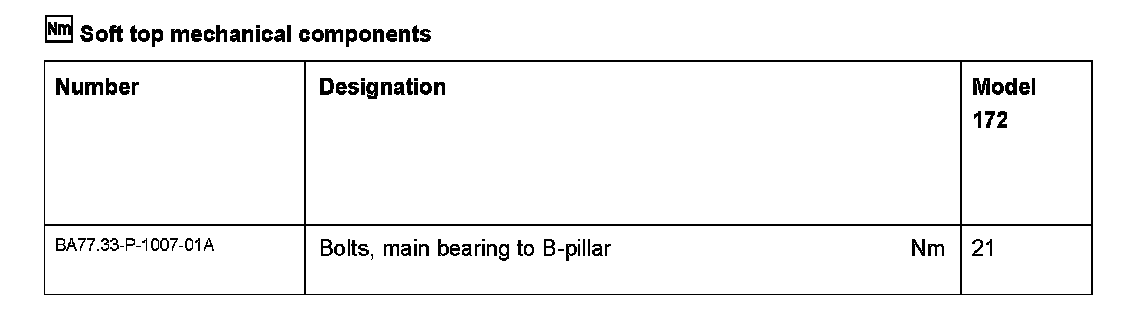

110 589 03 59 00
Mounting wedge





172 589 02 23 00
Positioning device





000 589 10 63 00
Eye
