AR77.35-P-1100V Remove, Install Adhesive Foil at Center of Vario Roof

AR77.35-P-1100V Remove, Install Adhesive Foil At Center of Vario Roof
MODEL 172

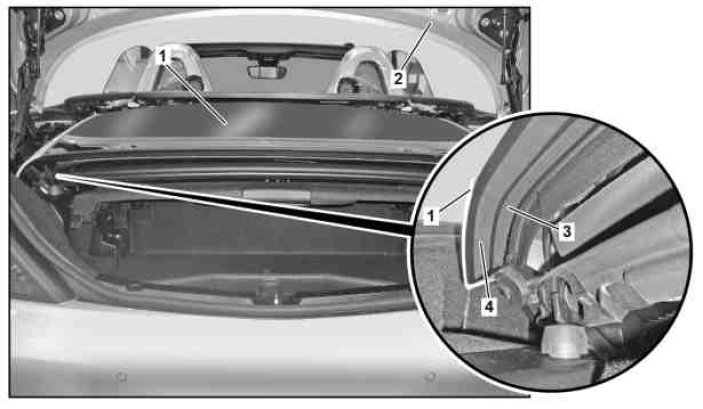

1 Vario roof
2 Trunk lid
3 Glue point
4 Glue point





1 Vario roof
3 Glue point
4 Glue point

A Width (10.5 mm)
B Tolerance (0.4 - 1.6 mm)

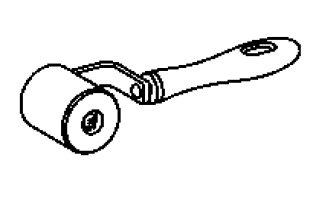

168 589 05 63 00
Roller
