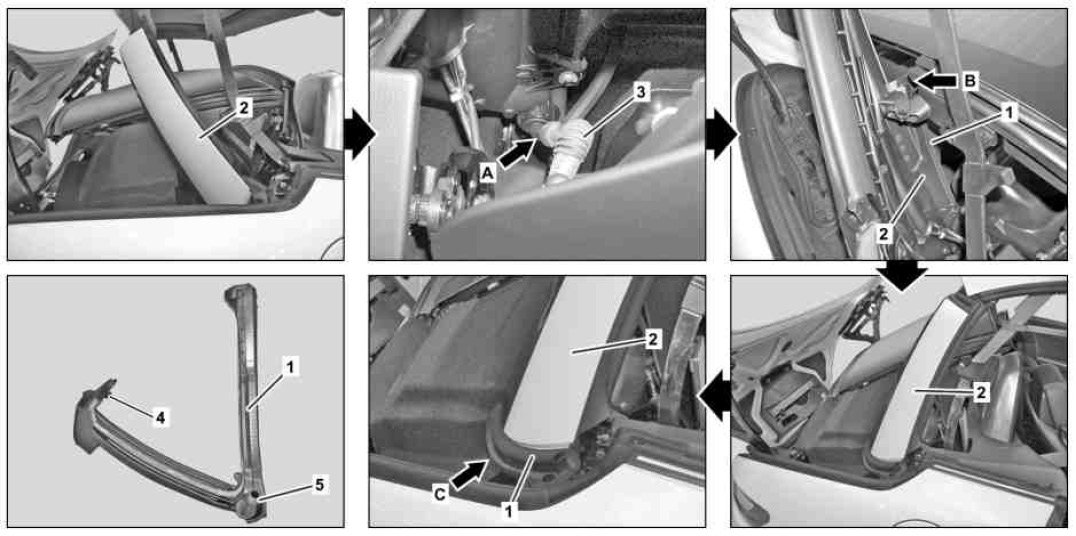

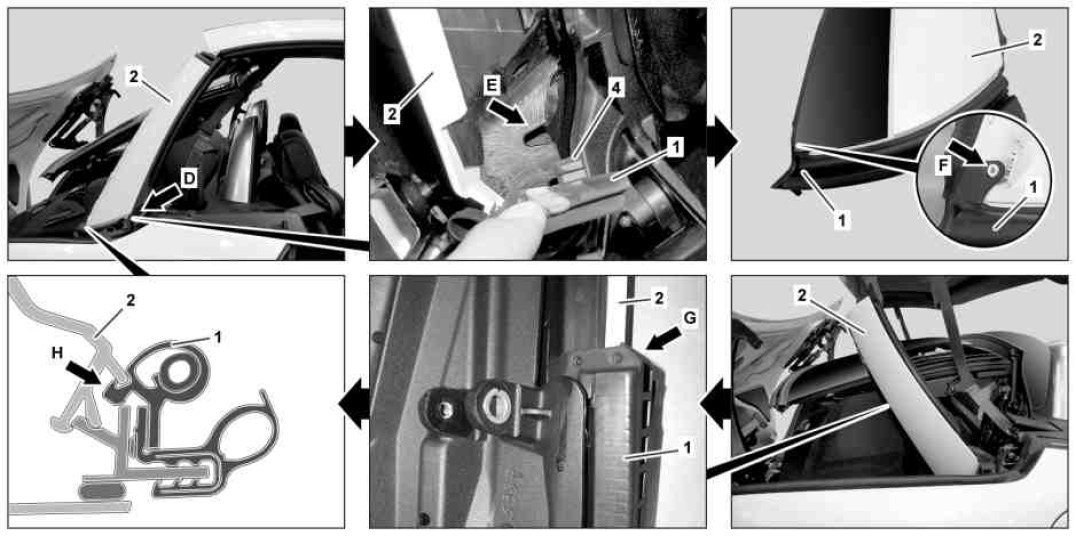

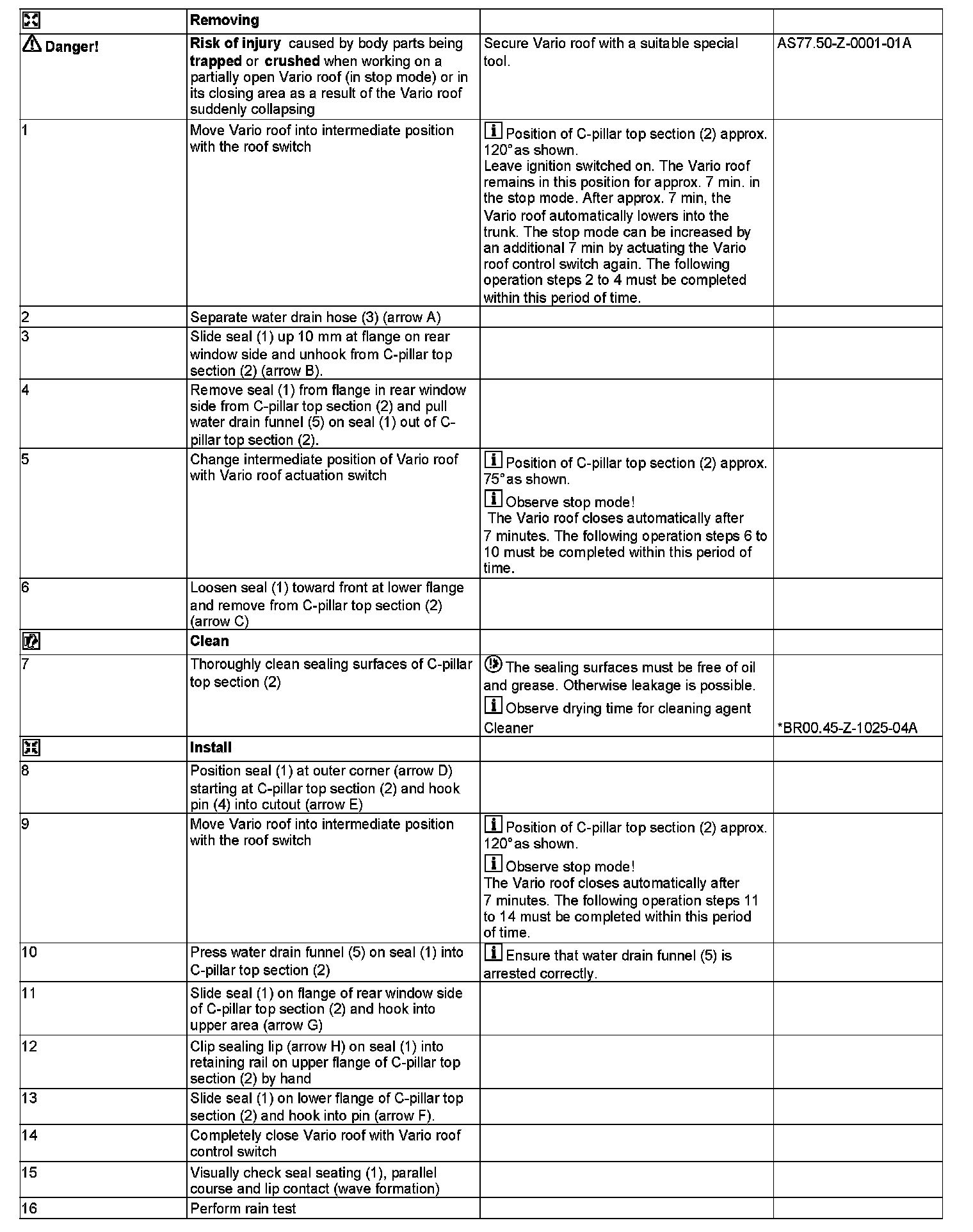

AR77.50-P-6768W Remove/Install Seal at Inner C-Pillar Upper Section for Vario Roof

AR77.50-P-6768W Remove/Install Seal At Inner C-pillar Upper Section For Vario Roof
MODEL 172.4





1 Seal
2 C-pillar upper section
3 Water drain hose
4 Pin
5 Water drain funnel





1 Seal
2 C-pillar upper section
4 Pin
