AR77.50-P-6766W Remove/Install Seal at Outer Top Part of C-Pillar for Vario Roof
AR77.50-P-6766W Remove/Install Seal At Outer Top Part of C-pillar For Vario Roof
MODEL 172.4

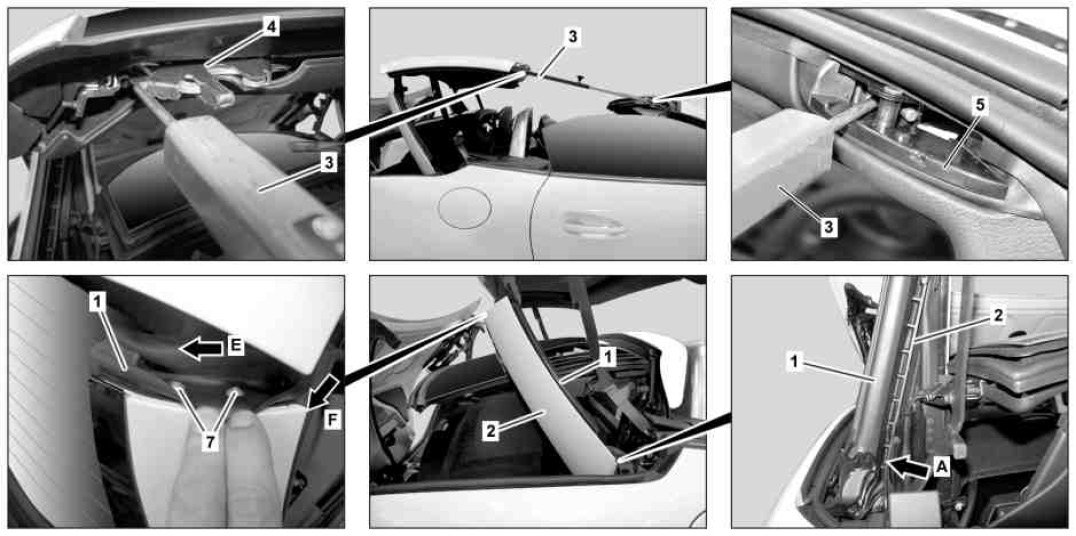

1 Seal
2 C-pillar upper section
3 Support
4 Front catch
5 Support
7 Bolts

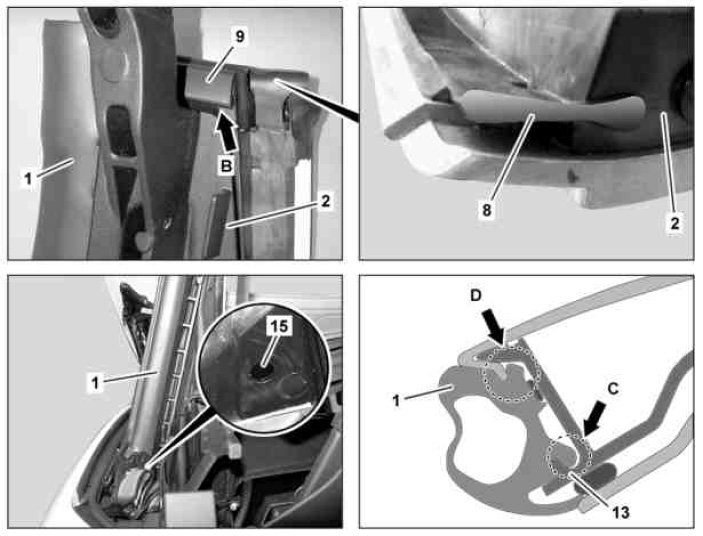

1 Seal
2 C-pillar upper section
8 Butyl cord
9 Sealing tabs
13 Retaining rail
15 Bore

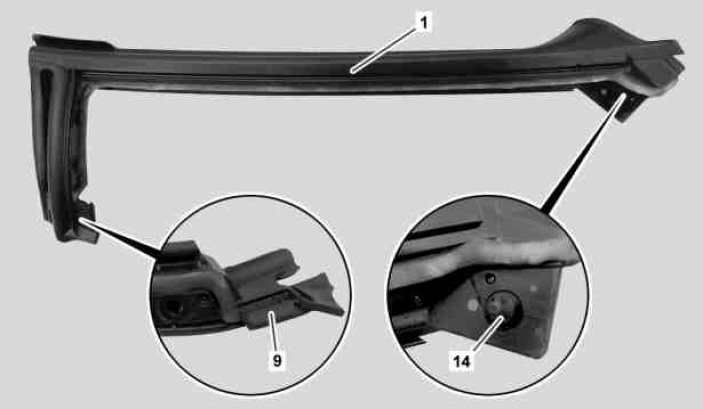

1 Seal
9 Sealing tabs
14 Pin
110 589 03 59 00
Mounting wedge
231 589 02 63 00
Support
231 589 02 63 00
Support
