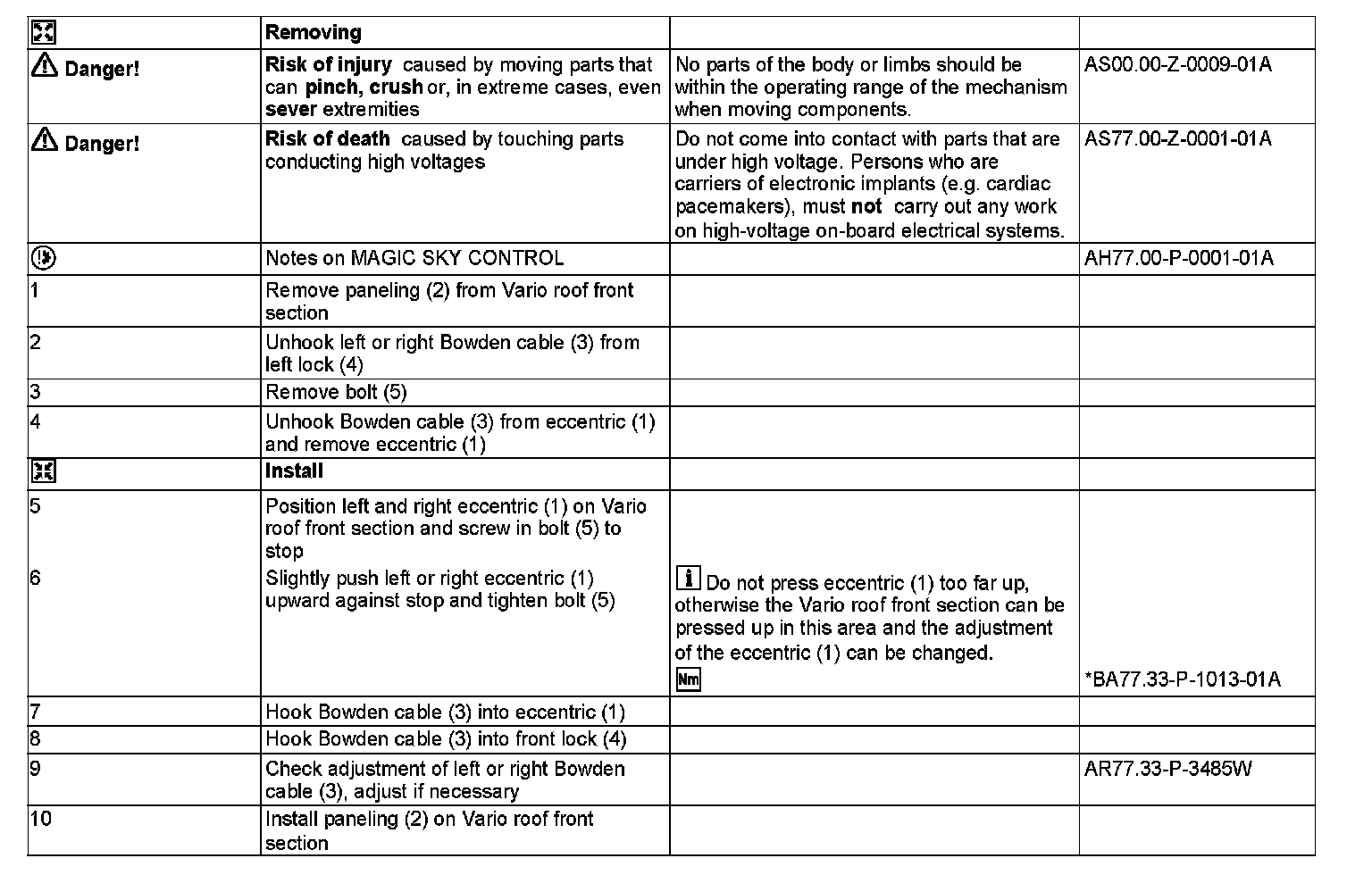

AR77.33-P-3487W Remove, Install Front Vario Roof Lock

AR77.33-P-3487W Remove, Install Front Vario Roof Lock
MODEL 172.4, 231

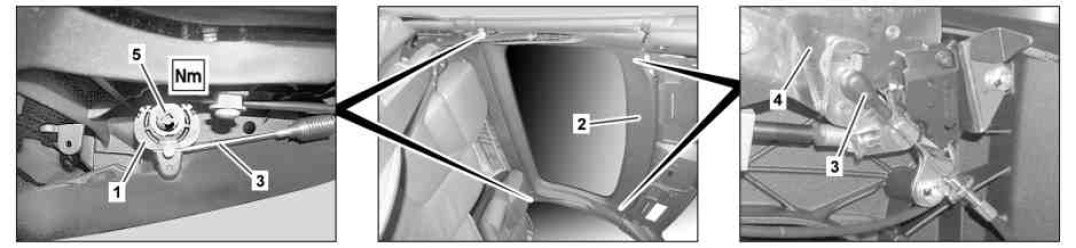

Shown on left C-pillar lock on model 172.4 3 Bowden cable

1 Cam
2 Cover
3 Bowden cable
4 Front catch

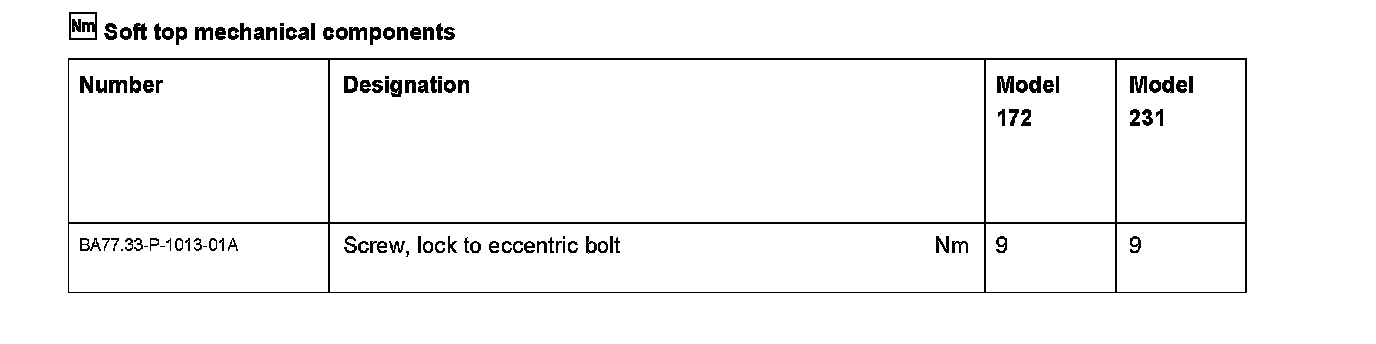

5 Screw
