AR77.33-P-3400W Remove/Install Catch at Front of Vario Roof

AR77.33-P-3400W Remove/Install Catch At Front of Vario Roof
MODEL 172.4, 231





Shown on model 172.4

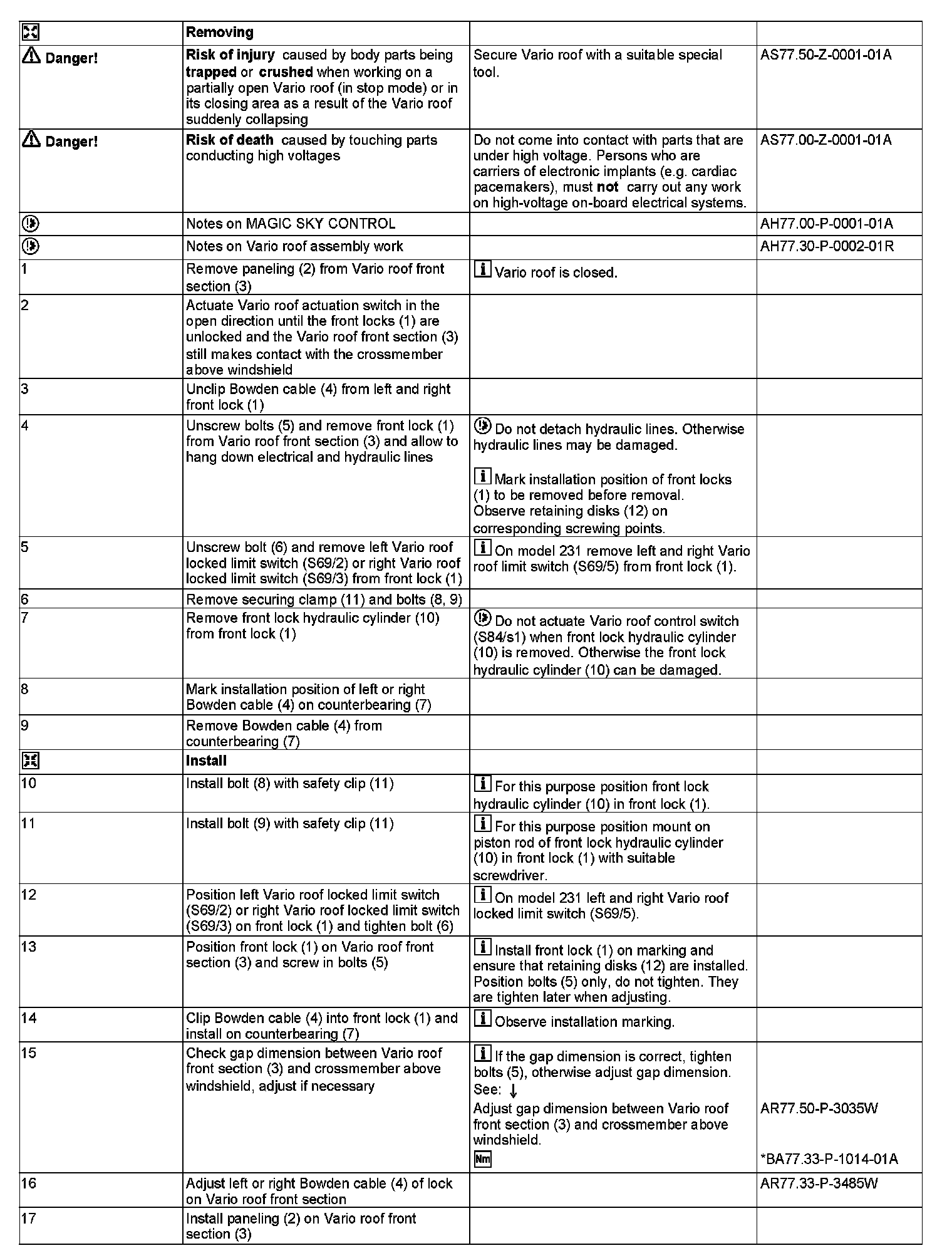

1 Front catch
2 Cover
3 Vario roof front section
4 Bowden cable

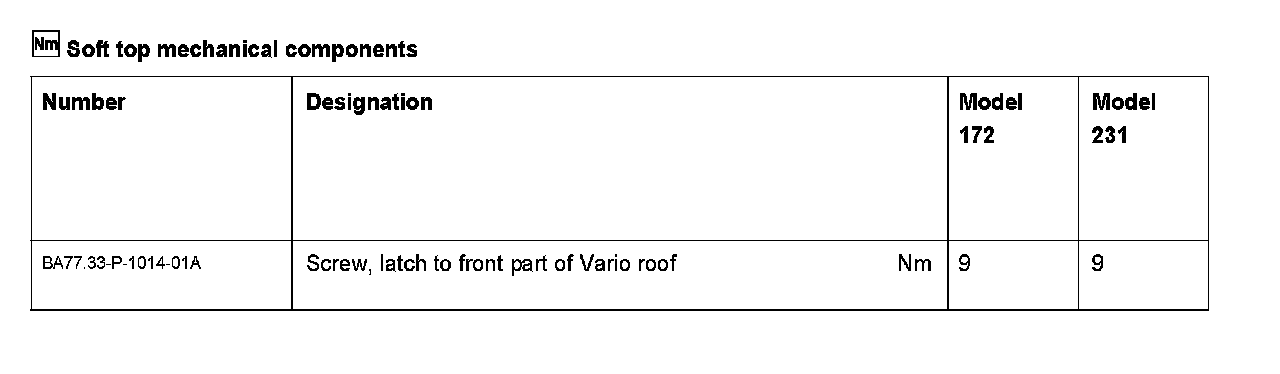

5 Screw
6 Screw
7 Thrust bearing
8 Pin
9 Pin
10 Front catch hydraulic cylinder
11 Securing clamp
12 Retaining disks

S69/2 Left Vario roof 'Locked' limit switch
S69/3 Right Vario roof 'Locked' limit switch
