AR77.30-P-6373W Align Side Flap for Vario Roof

AR77.30-P-6373W Align Side Flap For Vario Roof
MODEL 172.4

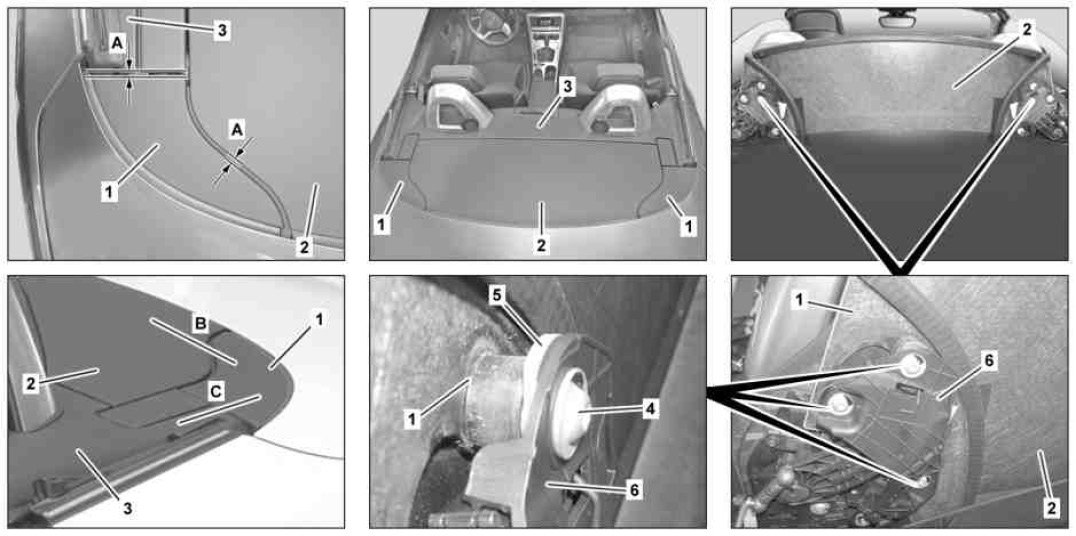

1 Side flap
2 Rear shelf main flap
3 Roll bar paneling
4 Screw
5 Spacer
6 Side flap mount

A Joint
B Transition
C Transition











129 589 03 21 00
Feeler gauge
