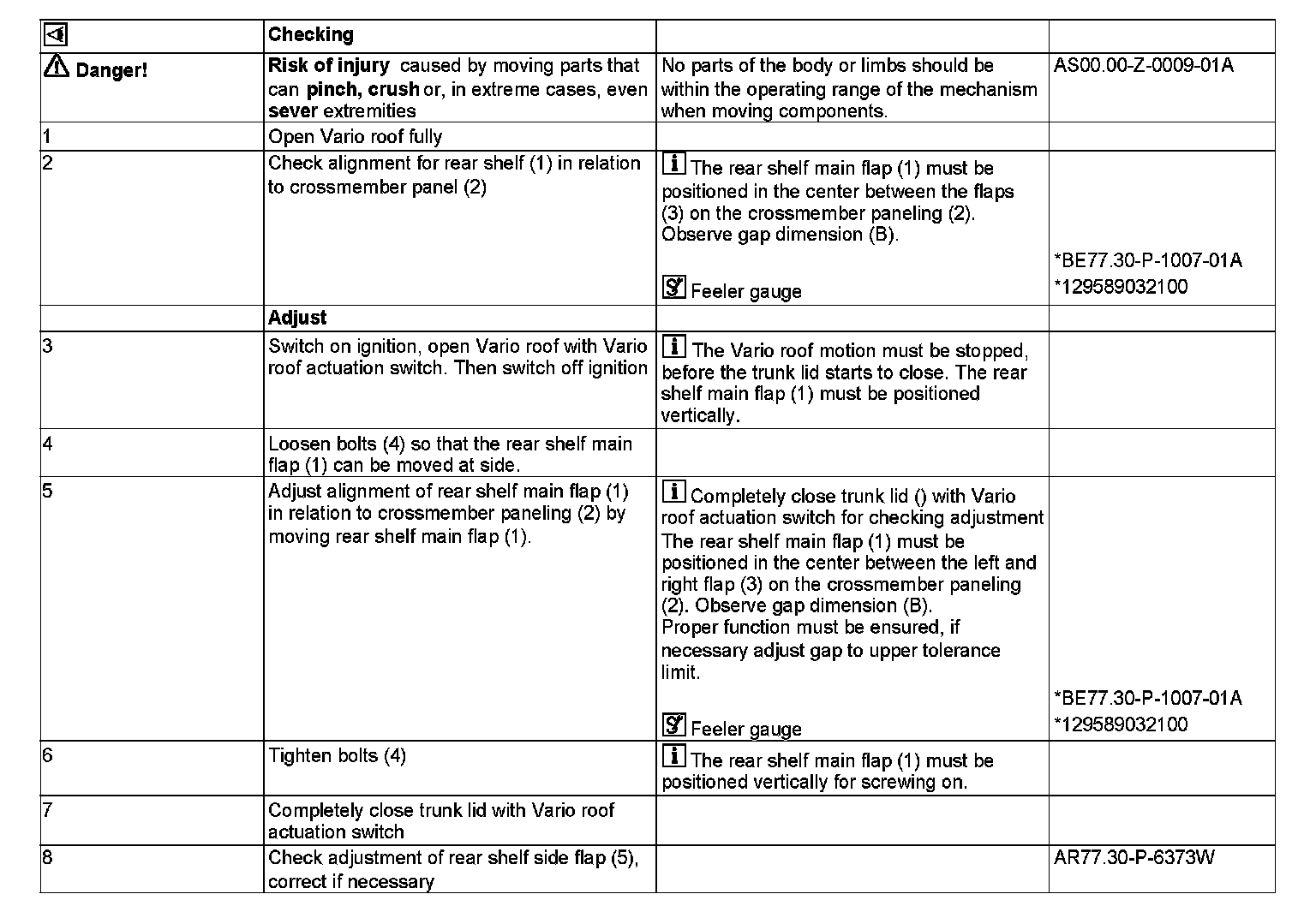

AR77.30-P-6341W Adjust Vario Roof Rear Shelf

AR77.30-P-6341W Adjust Vario Roof Rear Shelf
MODEL 172.4

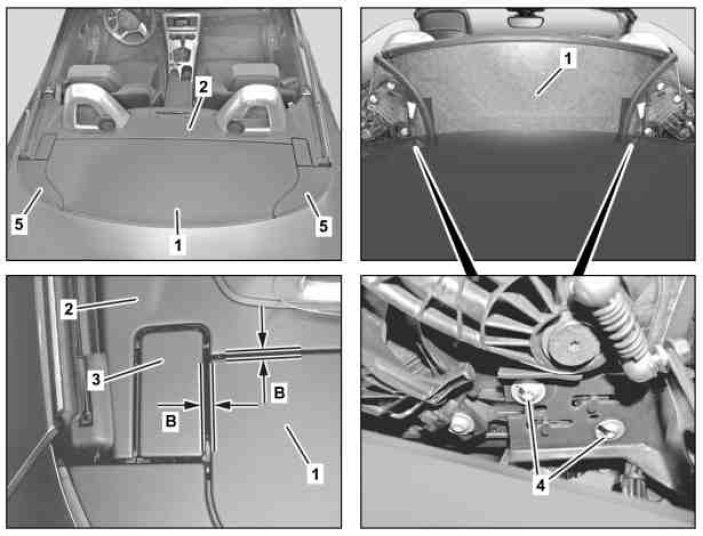

1 Rear shelf main flap
2 Cross member paneling
3 Flap
4 Bolts
5 Rear shelf side flap

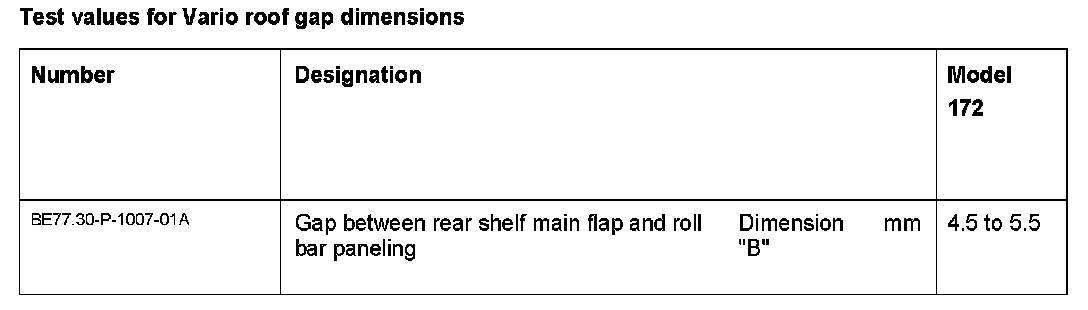

B Gap dimension











129 589 03 21 00
Feeler gauge
