Convertible Top Deck Lid Motor: Service and Repair

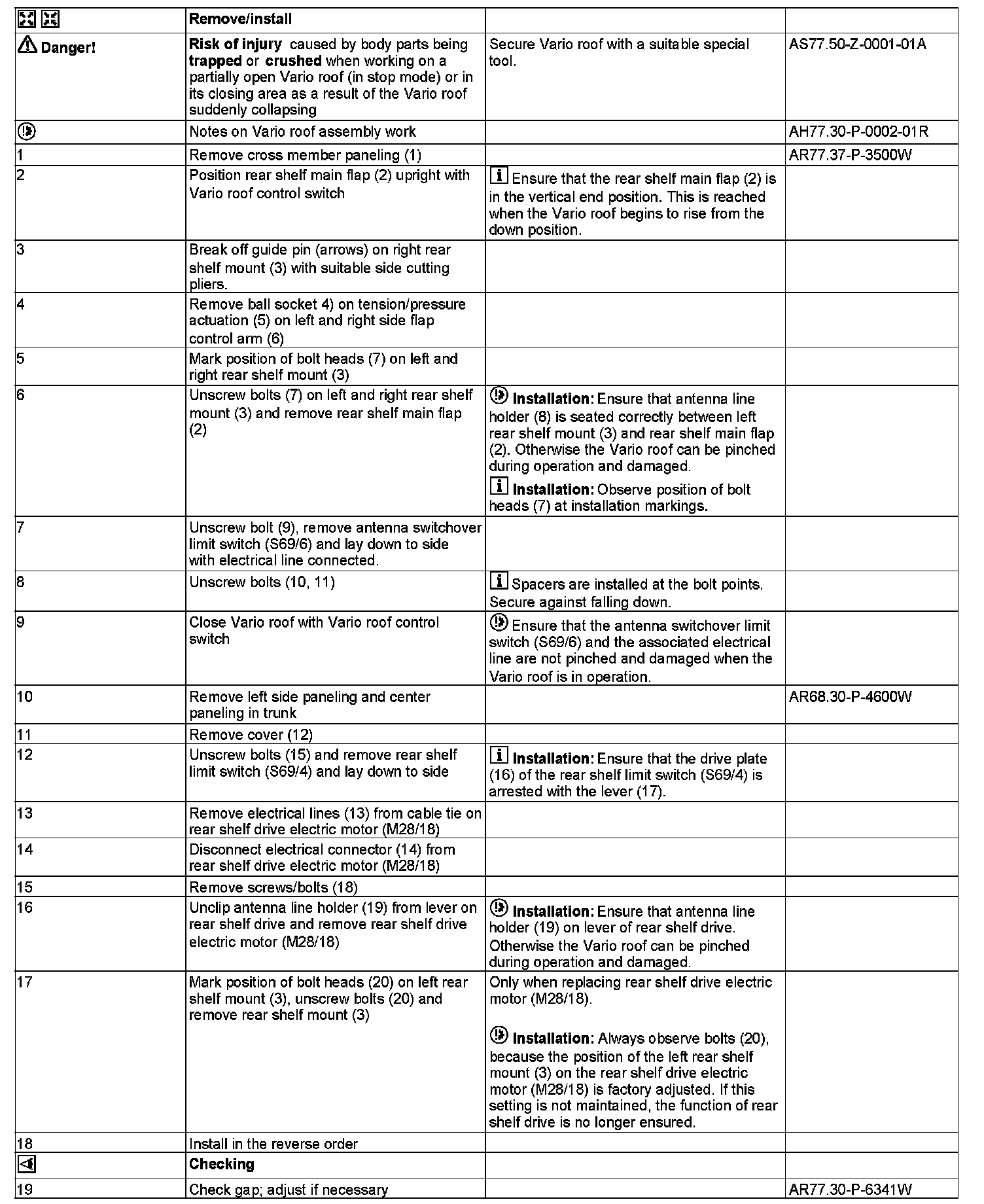

AR77.30-P-6348W Remove, Install Drive For Vario Roof Rear Shelf
MODEL 172.4

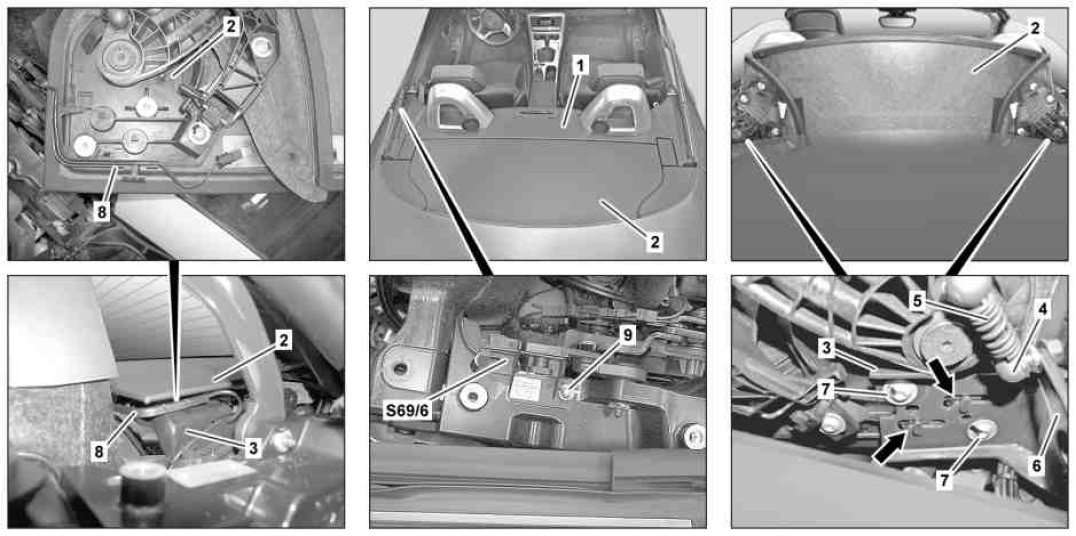

1 Cross member paneling
2 Rear shelf main flap
3 Rear shelf mount
4 Ball socket
5 Pull/push actuation
6 Side flap control arm
7 Screw
8 Antenna line holder
9 Screw

S69/6 Antenna change-over limit switch

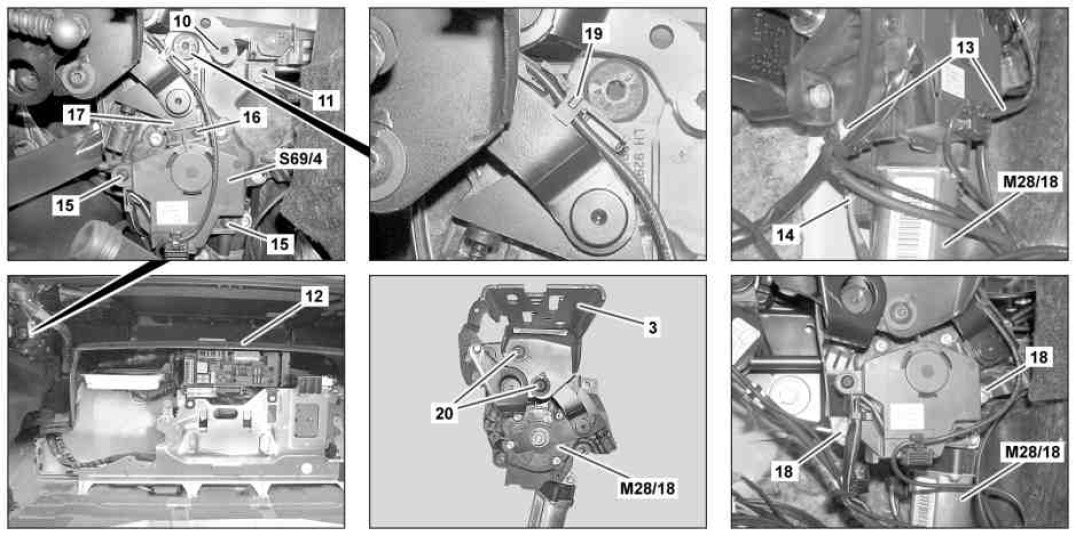

3 Rear shelf mount
10 Screw
11 Screw
12 Cover
13 Electrical line
14 Electrical connector
15 Screw
16 Driver
17 Lever
18 Screw
19 Antenna line holder
20 Bolts

M28/18 Rear shelf drive electric motor
S69/4 Rear shelf limit switch
