Convertible Top Cable: Service and Repair

AR77.33-P-3486W Remove, Install Bowden Cable For Front Vario Roof Lock
MODEL 172.4, 231

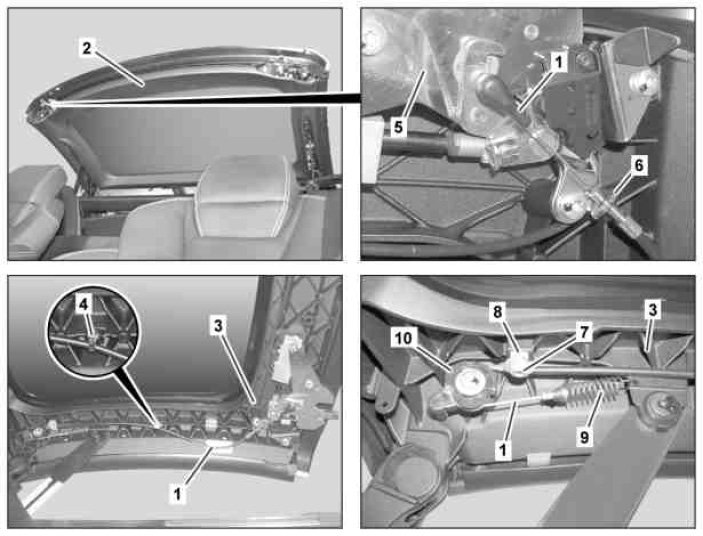

Shown on left Bowden cable (1), with partially opened Vario roof on model 172.4

1 Bowden cable
2 Cover
3 Vario roof front section
4 Cable tie
5 Front catch
6 Front counterbearing
7 Screw
8 Rear counterbearing
9 Spring

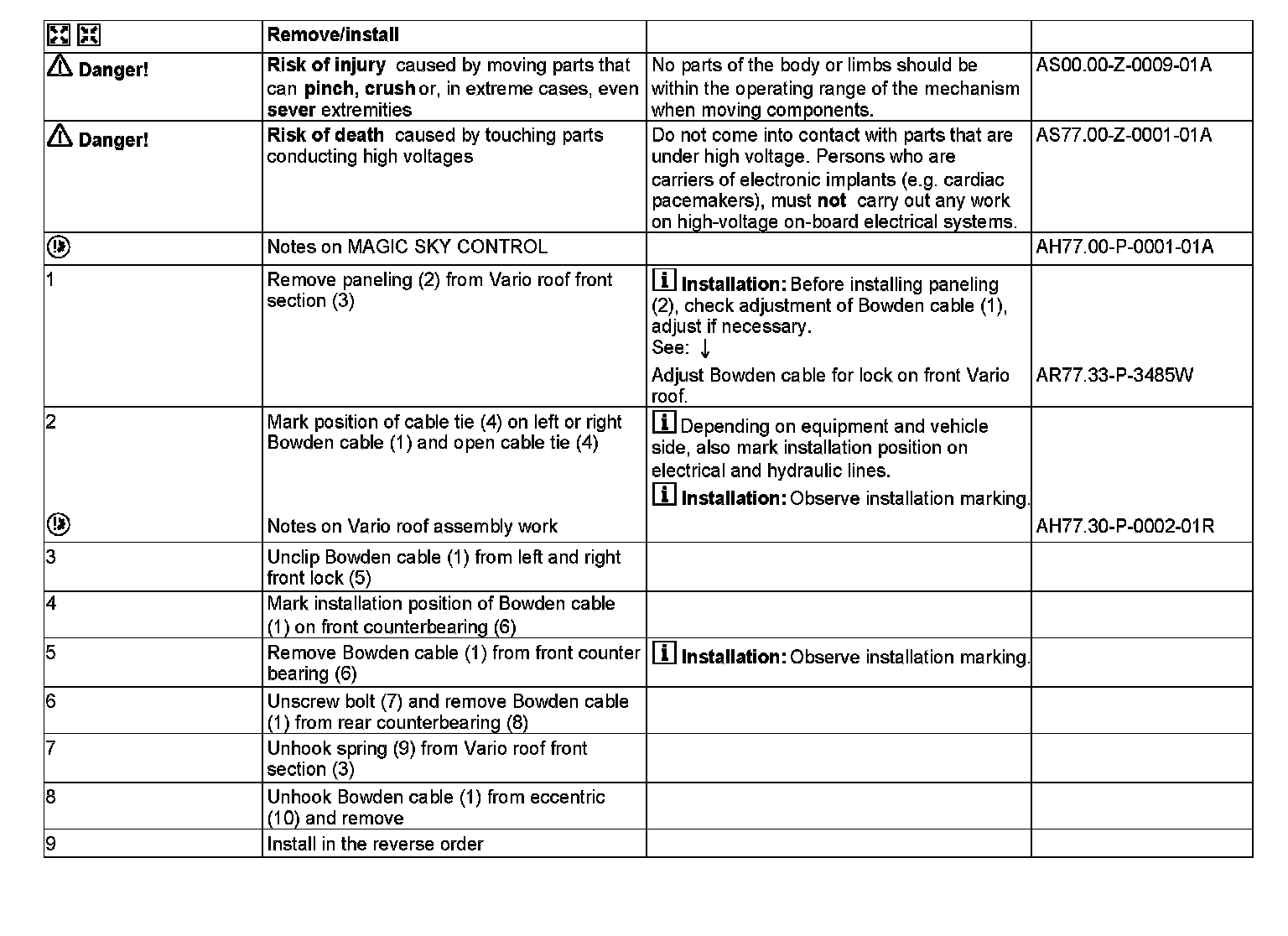

10 Cam
