Convertible Top Cable: Adjustments

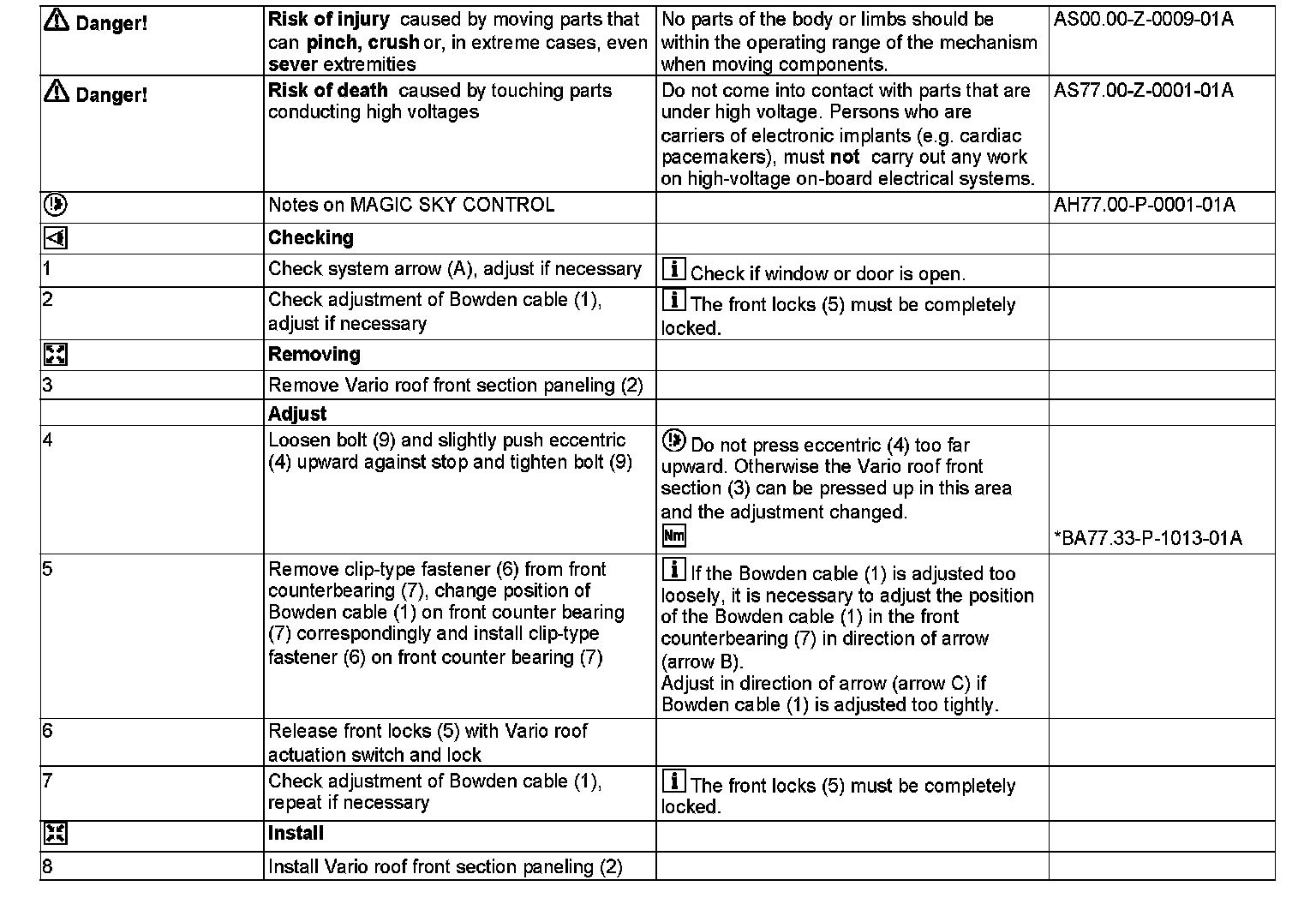

AR77.33-P-3485W Adjust Bowden Cable For Lock on Vario Roof Front Section

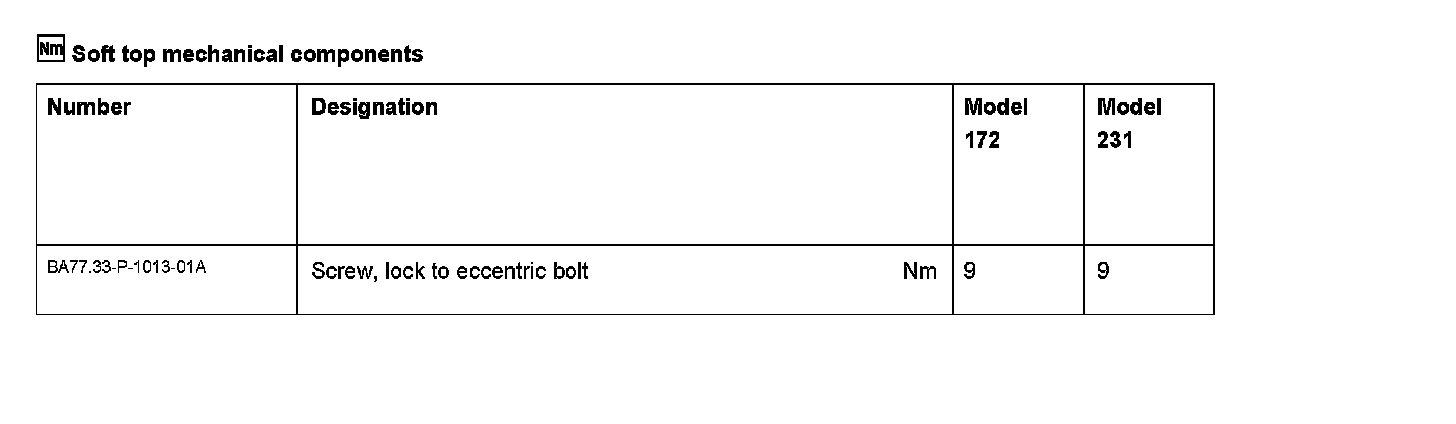

MODEL 172.4, 231





Shown on right

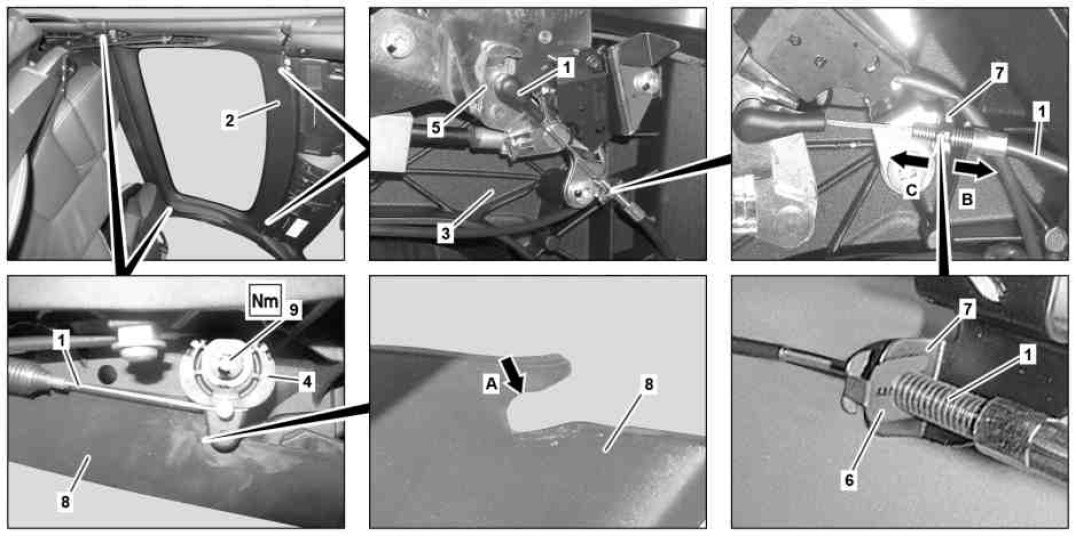

C-pillar lock on model 172.4

1 Bowden cable
2 Vario roof front section paneling
3 Vario roof front section
4 Cam
5 Front catch
6 Clip-type fastener
7 Front counterbearing
8 Main guide
9 Screw
