AR77.50-P-3035W Adjust Gap Between Vario Roof and Crossmember Above Windshield

AR77.50-P-3035W Adjust Gap Between Vario Roof and Crossmember Above Windshield
MODEL 172.4, 231

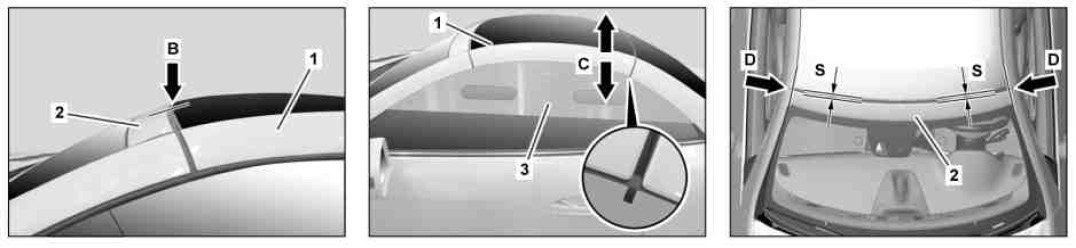

Shown on model 172.4

1 Vario roof front section
2 Windshield frame
3 Template

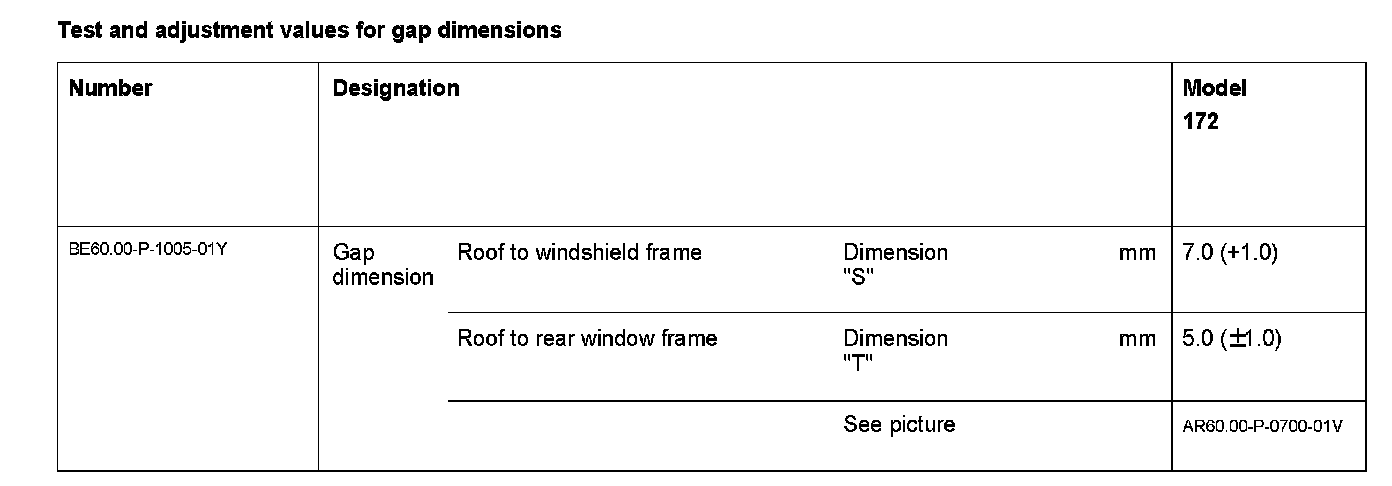

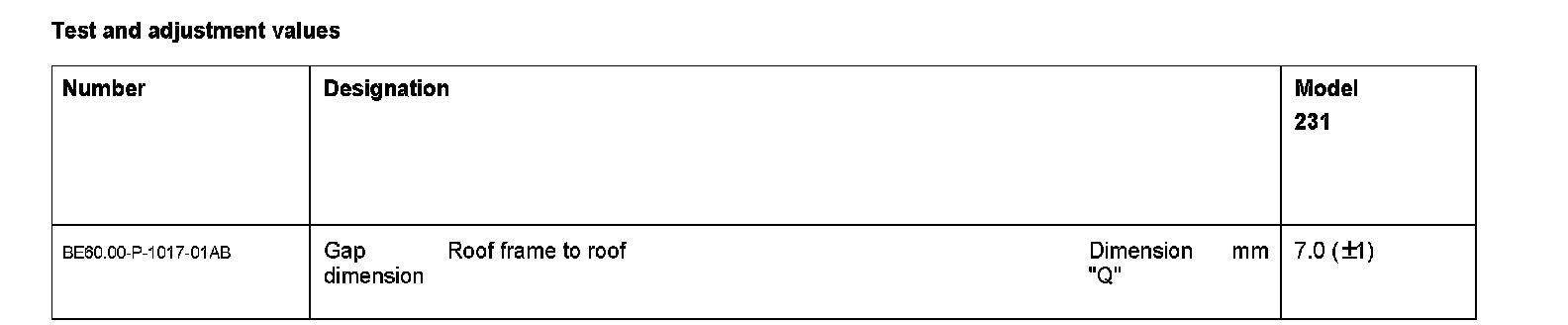

H Gap dimension

















129 589 03 21 00
Feeler gauge





172 589 03 23 00
Template





231 589 03 23 00
Template
