AR77.37-P-3500W Remove/Install Hydraulic Unit

AR77.37-P-3500W Remove/Install Hydraulic Unit
MODEL 172.4





Shown with code (288) AIRCAP

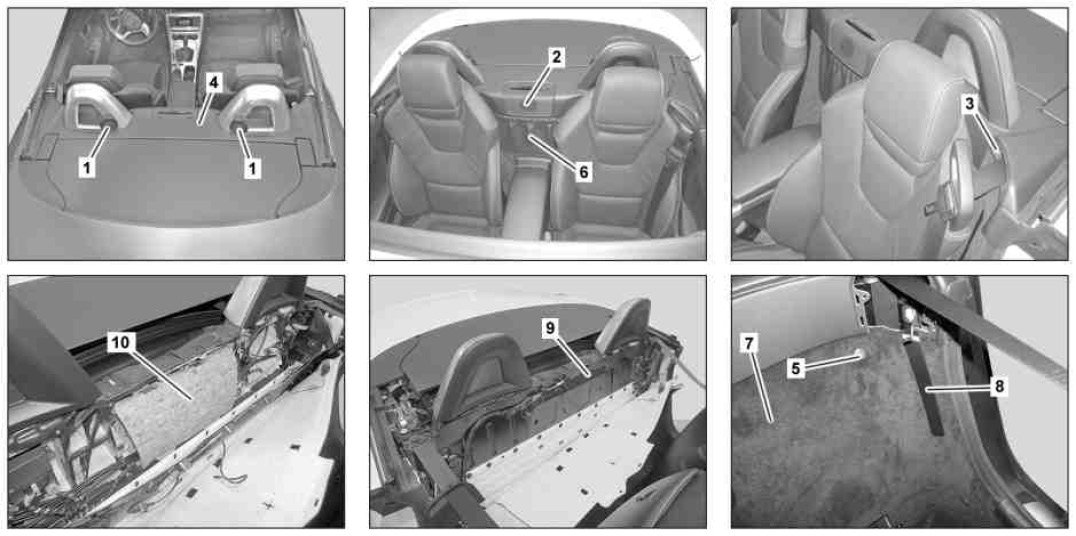

1 Glass draft stop (with code (288) AIRCAP)
2 Center speaker cover
3 Loudspeaker cover with belt guide
4 Cross member paneling
5 Coat hook
6 Pocket

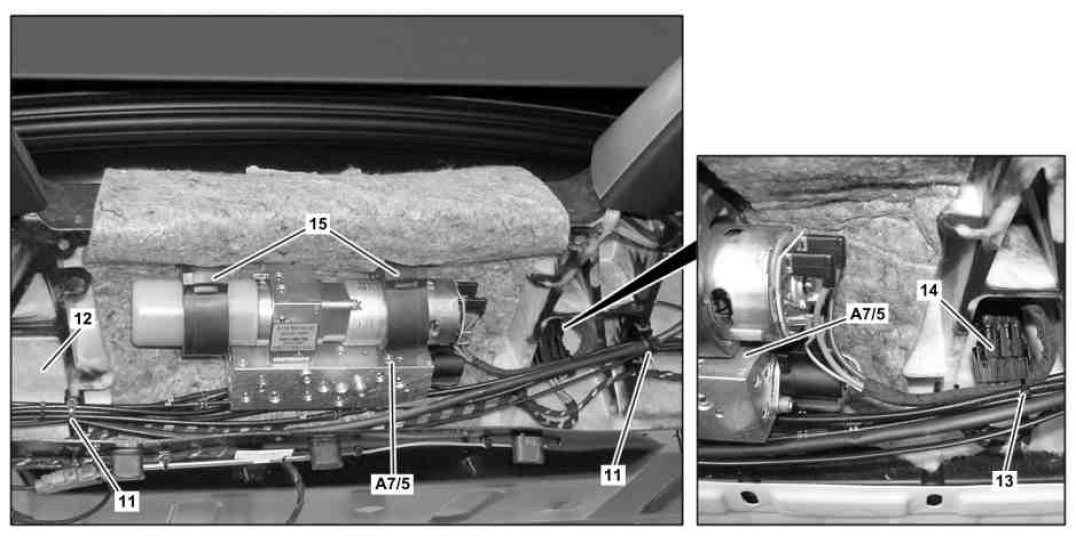

7 Rear wall cover
8 Cover
9 Crossmember cover
10 Insulating mat





11 Hydraulic wiring harness
12 Vario roof crossmember
13 Cable tie
14 Electrical connector
15 Rubber bushing

A7/5 Vario roof control hydraulic unit














129 589 00 91 00
Set of stop plugs
