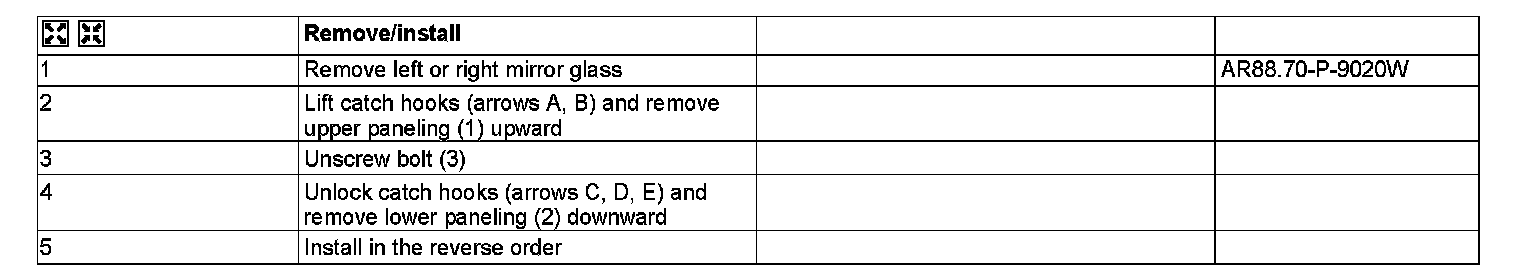

AR88.70-P-9040W Remove/Install Outside Mirror Trim




AR88.70-P-9040W Remove/Install Outside Mirror Trim
MODEL 172.4, 231

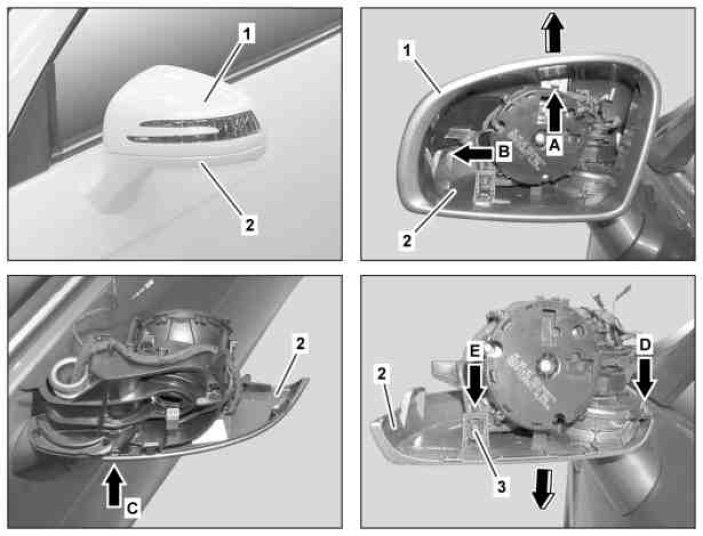

Illustrated on model 172.4

1 Upper trim panel
2 Lower trim panel
3 Screw
