Power Mirror Motor: Service and Repair

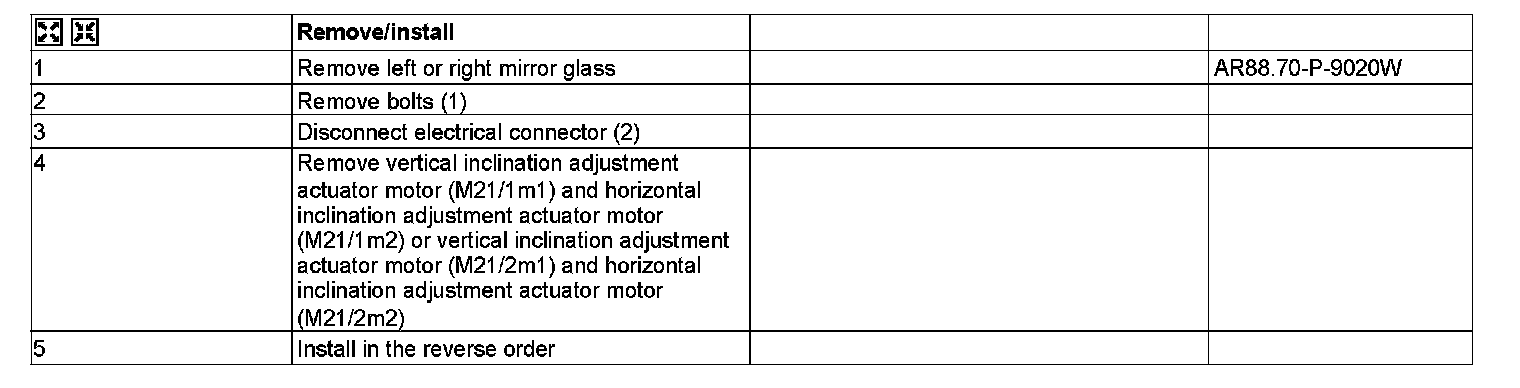

AR88.70-P-9060W Remove/Install Glass Adjustment Drive
MODEL 172.4, 231

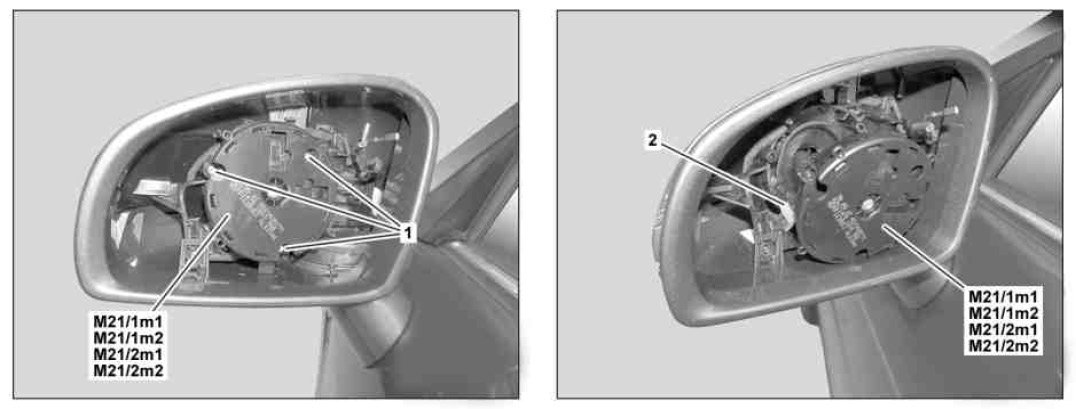

Shown on model 172.4

1 Bolts
2 Electrical connector

M21/1m1 Vertical inclination adjustment actuator motor
M21/1m2 Horizontal inclination adjustment actuator motor
M21/2m1 Vertical inclination adjustment actuator motor
M21/2m2 Horizontal inclination adjustment actuator motor
