Trim Panel: Service and Repair

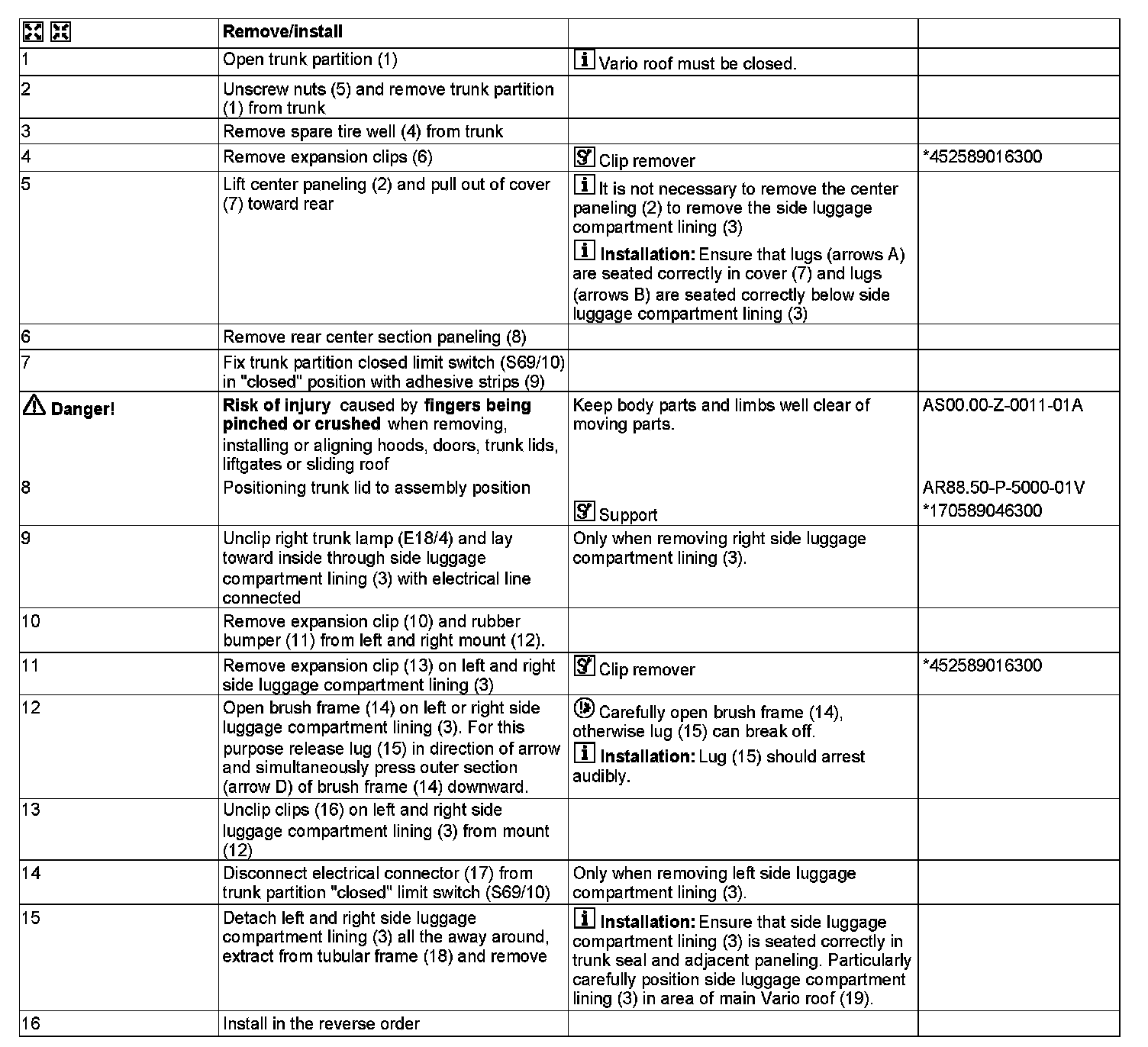

AR68.30-P-4600W Remove Paneling in Trunk
MODEL 172.4

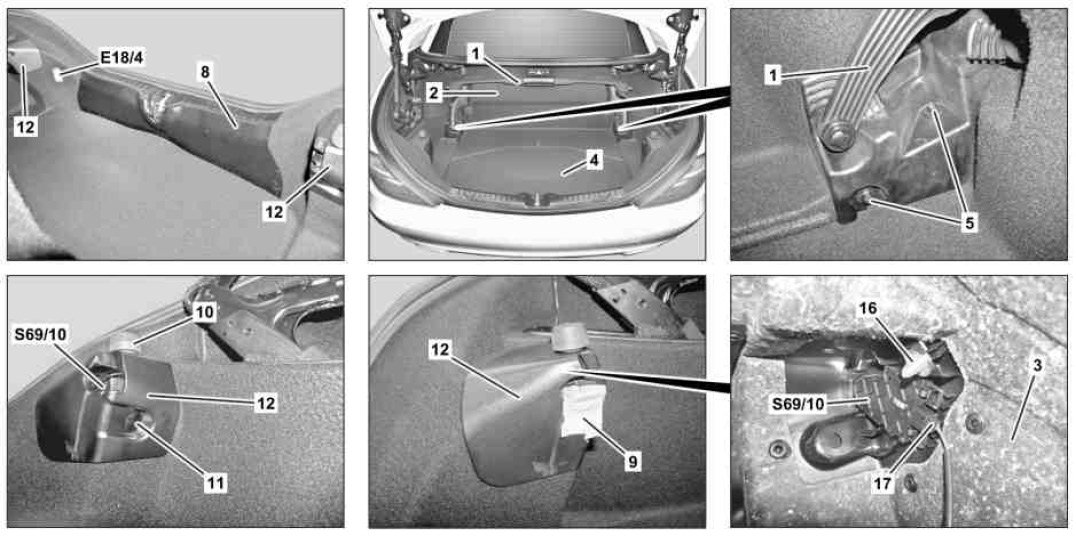

1 Trunk partition
2 Center trim
3 Side luggage compartment lining
4 Spare tire well cover
5 Nuts
8 Rear center section paneling
9 Adhesive tape strips
10 Rubber pad
11 Expansion clip
12 Support
16 Clip
17 Electrical connector

E18/4 Right luggage compartment lamp
S69/10 Trunk partition "closed" limit switch

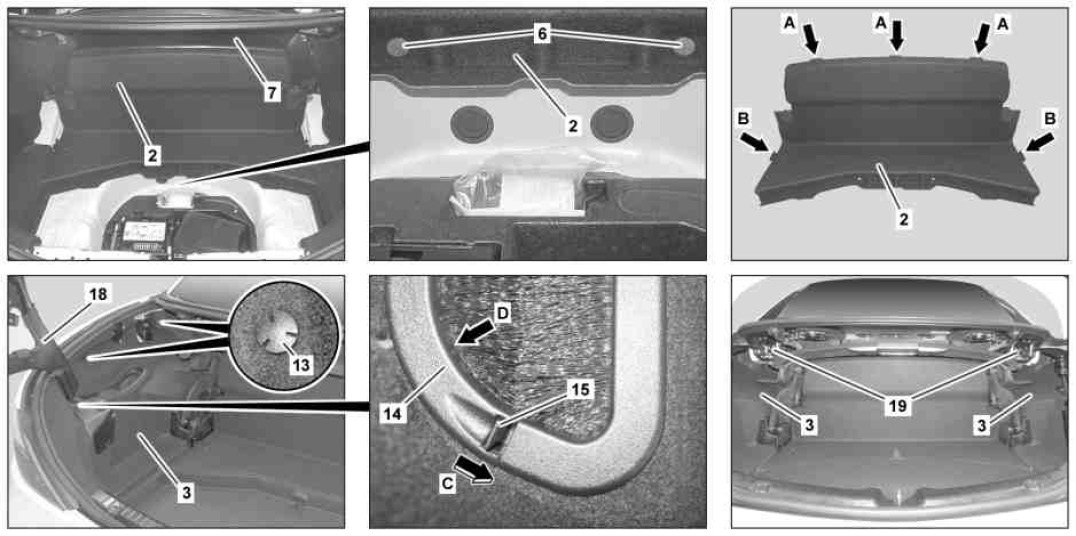

2 Center trim
3 Side luggage compartment lining
6 Expansion clip
7 Cover
13 Expansion clip
14 Brush frame
15 Lug
18 Tubular frame
19 Vario roof main bearing








170 589 04 63 00
Support





452 589 01 63 00
Snap-release tool
