AN82.20-P-0001-03W Retrofit Illuminated Door Sill Molding Wiring Harness
AN82.20-P-0001-03W Retrofit Illuminated Door Sill Molding Wiring Harness
000 589 13 99 00
Wiring harness repair kit, basic
220 589 04 99 00
New passenger vehicle wiring harness repair kit

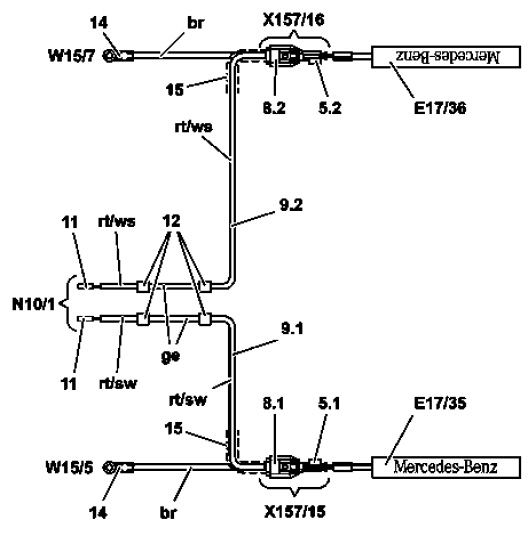

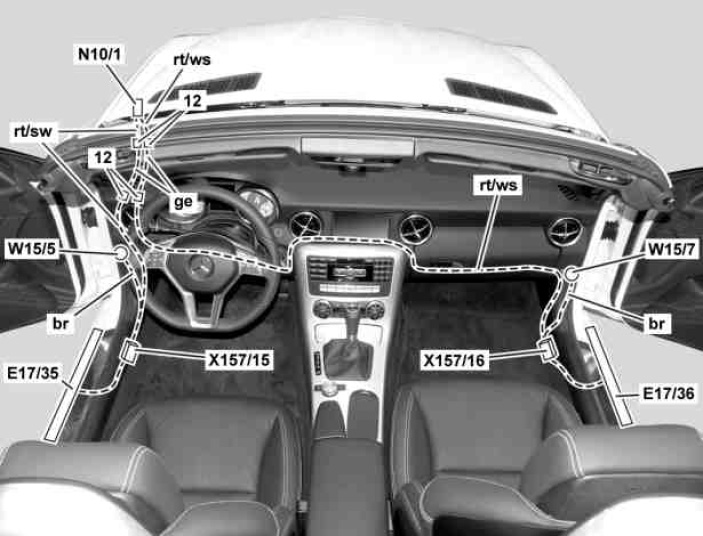

Routing diagram
12 Potential distributor
E17/35 Left illuminated door sill molding
E17/36 Right illuminated door sill molding
N10/1 Front SAM control unit with fuse and relay module
W15/5 Left front footwell ground point
W15/7 Right front footwell ground point
X157/15 Left front footwell illuminated door sill molding electrical connector
X157/16 Right front footwell illuminated door sill molding electrical connector
BN Brown line
YE Yellow lines (extensions)
RD/BK Red/black lines
RD/WH Red/white line
Wiring harness in original condition
5.1 Black 2-pin plug
5.2 Black 2-pin plug
8.1 Black 2-pin connector
8.2 Black 2-pin connector
9.1 Branch-off line, driver side
9.2 Branch-off line, passenger side
13 Contact spring
E17/35 Left illuminated door sill molding
E17/36 Right illuminated door sill molding
X157/15 Left illuminated door sill molding electrical connector
X157/16 Right illuminated door sill molding electrical connector
BN Brown line
RD/BK Red/black line
RD/WH Red/white line
Connection scheme/wiring harness in original condition
5.1 Black 2-pin plug
5.2 Black 2-pin plug
8.1 Black 2-pin connector
8.2 Black 2-pin connector
9.1 Branch-off line, driver side
9.2 Branch-off line, passenger side
11 Contact spring
12 Potential distributor
14 Round cable lug
15 Felt tape
E17/35 Left illuminated door sill molding
E17/36 Right illuminated door sill molding
N10/1 Front SAM control unit with fuse and relay module
W15/5 Left front footwell ground point
W15/7 Right front footwell ground point
X157/15 Left illuminated door sill molding electrical connector
X157/16 Right illuminated door sill molding electrical connector
BN Brown line
YE Yellow lines (extensions)
RD/BK Red/black line
RD/WH Red/white line

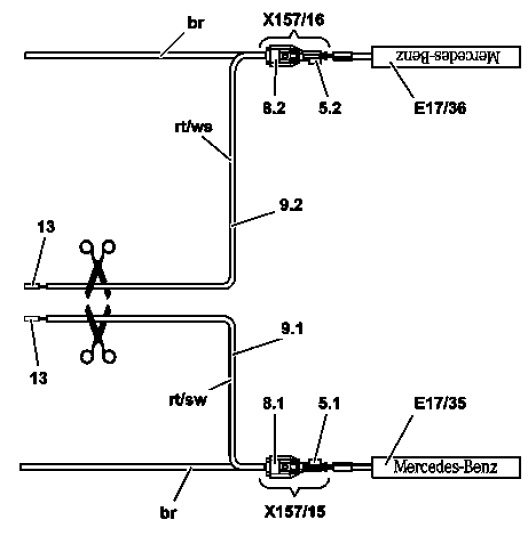

Modify branch-off line, driver side (9.1) and branch-off line, passenger side (9.2) as follows, outside of vehicle.
1 Fit round cable lugs (14) with 6 mm diameter to brown lines (BN).
2 Remove contact springs (13).
Contact springs (13) are no longer required.
3 Shorten red/black line (RD/BK) and red/white line (RD/WH) by 100 mm each.
4 Extend red/black line (RD/BK) on branch-off line, driver side (9.1) and red/white line (RD/WH) on branch-off line, passenger side (9.2) using one 500 mm long yellow line (YE) each.
Connect using potential distributors (12); they must be taken from the wiring harness repair kit.
5 Connect 100 mm long red/black (RD/BK) and red/white (RD/ WH) lines to yellow lines (YE).
Connect using potential distributors (12); they must be taken from the wiring harness repair kit. The line colors must be the same at the beginning and at the end of the yellow line (YE).
6 Wrap felt tap (15) around branch-off line, driver side (9.1) and branch-off line, passenger side (9.2), starting from the black 2-pin connectors (8.1 and 8.2) over a length of 800 mm.
7 Wrap felt tape around all potential distributors (12).

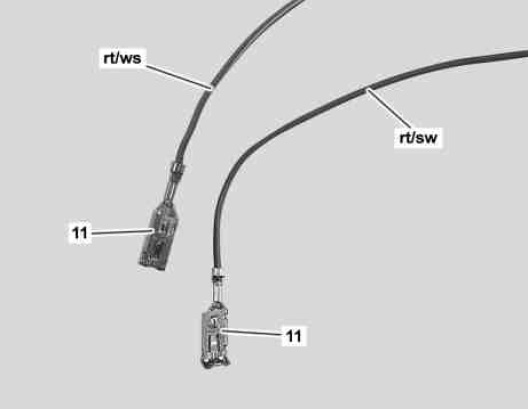

8 Install one contact spring (11) each at the 100 mm long red/ black (RD/BK) and red/white (RD/WH) lines.
Use contact spring (11) "SLK 2.8" from the wiring harness repair kit.

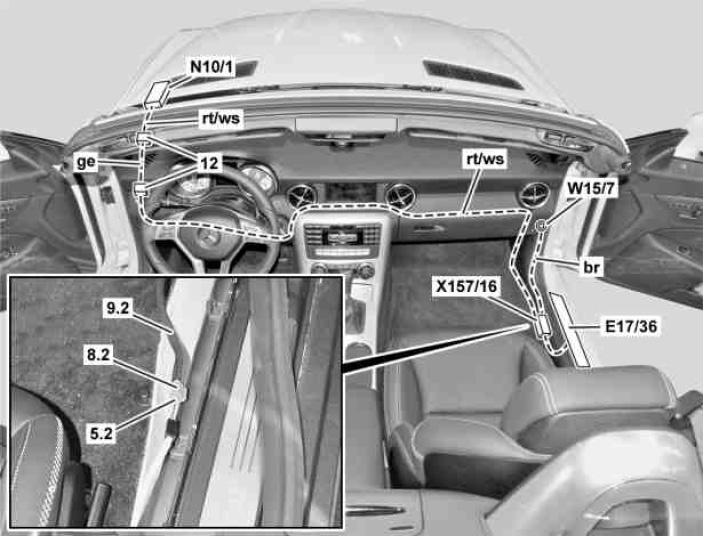

9 Connect black 2-pin plug (5.2) of right illuminated door sill molding (E17/36) and black 2-pin connector (8.2) of branch-off line, passenger side (9.2).
This creates the right illuminated door sill molding (X157/16) electrical connection.
10 Bond felt tape onto electrical connector for right illuminated door sill molding (X157/16) and voltage converter.
11 Route brown line (BN) in cable ducts and below floor covering to ground point (right front footwell) (W15/7) and connect.
12 Route red/white line (RD/WH) along existing lines below instrument panel to front SAM control unit with fuse and relay module (N10/1) and fix in place on vehicle wiring harness using cable ties.
Use a pull-through device.

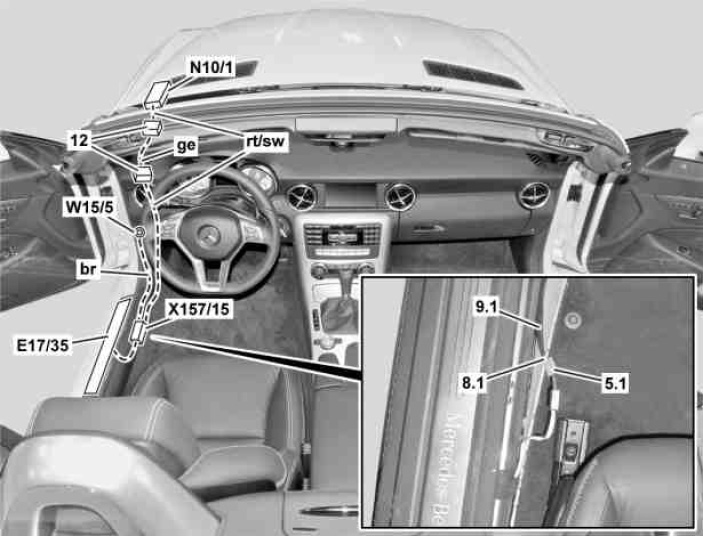

13 Connect black 2-pin plug (5.1) of left illuminated door sill molding (E17/35) and black 2-pin connector (8.1) of branch-off line, driver side (9.1).
This creates the left illuminated door sill molding (X157/15) electrical connection.
14 Bond felt tape onto electrical connector for left illuminated door sill molding (X157/15) and voltage converter.
15 Route brown line (BN) in cable ducts and beneath floor covering to ground point (left front footwell) (W15/5) and connect.
16 Route red/black line (RD/BK) along existing lines below instrument panel to front SAM control unit with fuse and relay module (N10/1) and fix in place on vehicle wiring harness using cable ties.
Use a pull-through device.

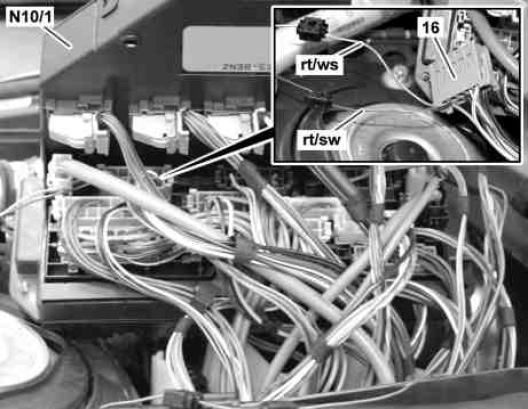

17 Remove green 10-pin connector (16) from front SAM control unit with fuse and relay module (N10/1).
18 Install red/white line (RD/WH) and red/black line (RD/BK) into green 10-pin connector (16).
Contact cavity assignment:
Socket 2 red/black line (RD/BK)
Socket 4 red/white line (RD/WH)
The contact cavities of the green 10-pin connector (16) are labeled.
