Dashboard / Instrument Panel: Service and Repair

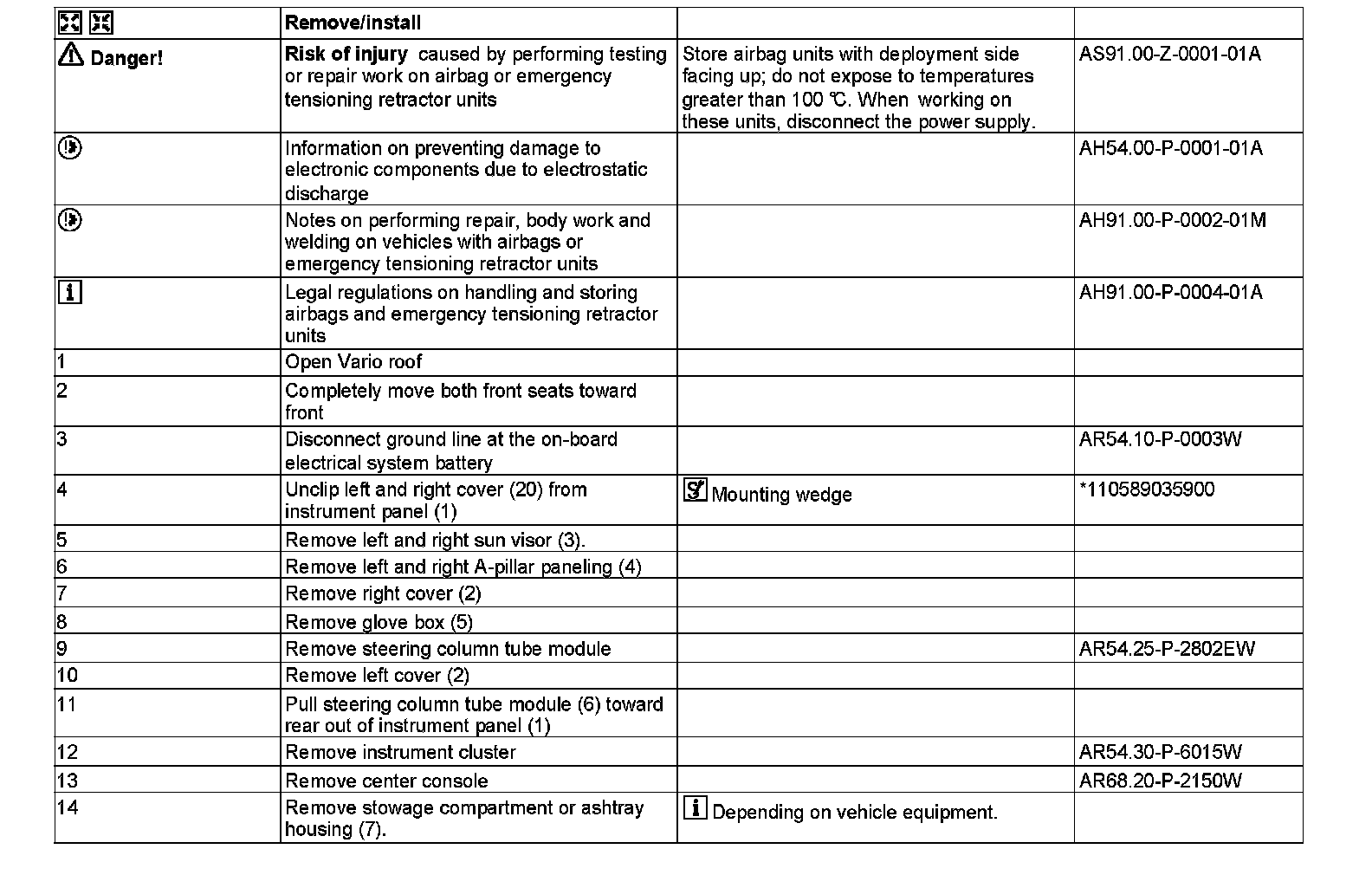

AR68.10-P-1000W Remove/Install Dashboard
MODEL 172.4
- except CODE (294) Kneebag

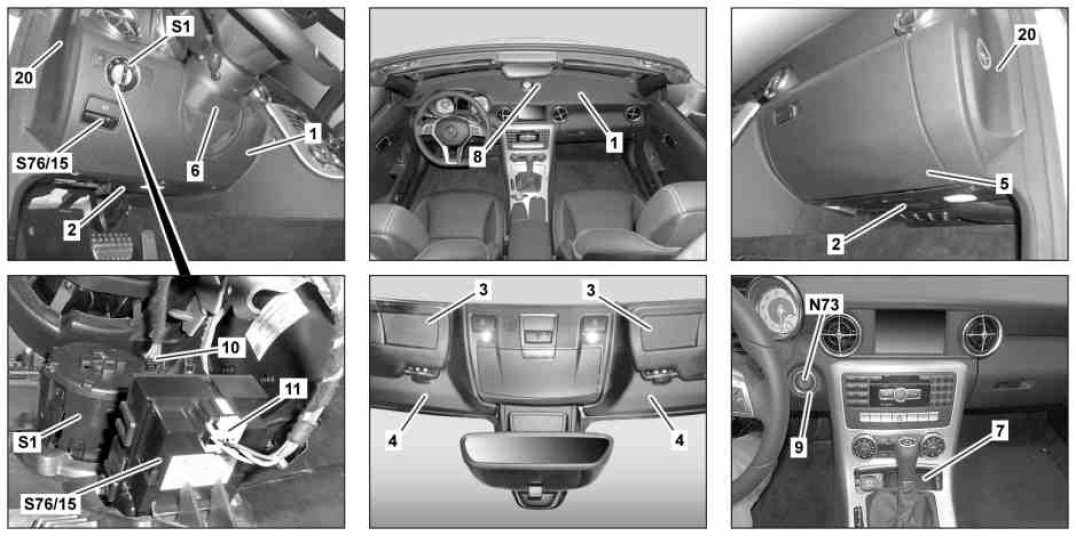

1 Instrument panel
2 Cover
3 Sun visor
4 A-pillar cover
5 Glove compartment
6 Steering column tube module
7 Stowage compartment or ashtray housing
8 Cover
9 Trim ring
10 Electrical connector
11 Electrical connector
20 Cover

N73 Electronic ignition switch control unit
S1 Exterior lights switch
S76/15 Electric parking brake switch

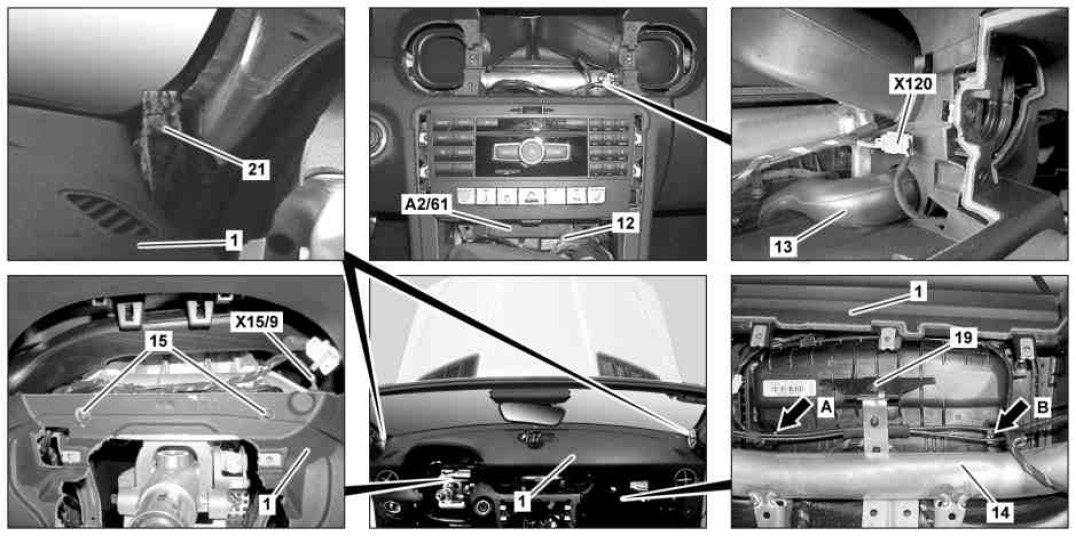

1 Instrument panel
12 Electrical connector (with code (889) Keyless Go)
13 Air duct (with code (512) COMAND APS including DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
14 Dashboard crossmember
15 Bolts
19 Screw
21 Damping material

A2/61 Interior keyless go antenna (with code (889) Keyless Go)
X15/9 Interior temperature sensor electrical connector
X120 Radio fan electrical connector (with code (512) COMAND APS including DVD changer or code (527) COMAND APS with single DVD drive (with navigation))

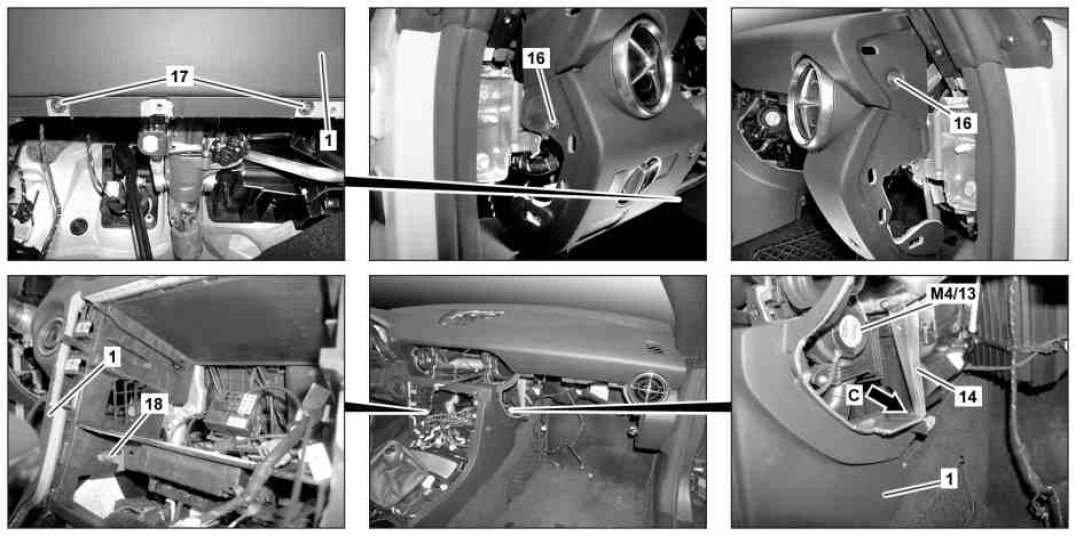

1 Instrument panel
14 Dashboard crossmember
16 Screw
17 Bolts
18 Screw

M4/13 COMAND fan motor (with code (512) COMAND APS including DVD changer or code (527) COMAND APS with single DVD drive (with navigation))

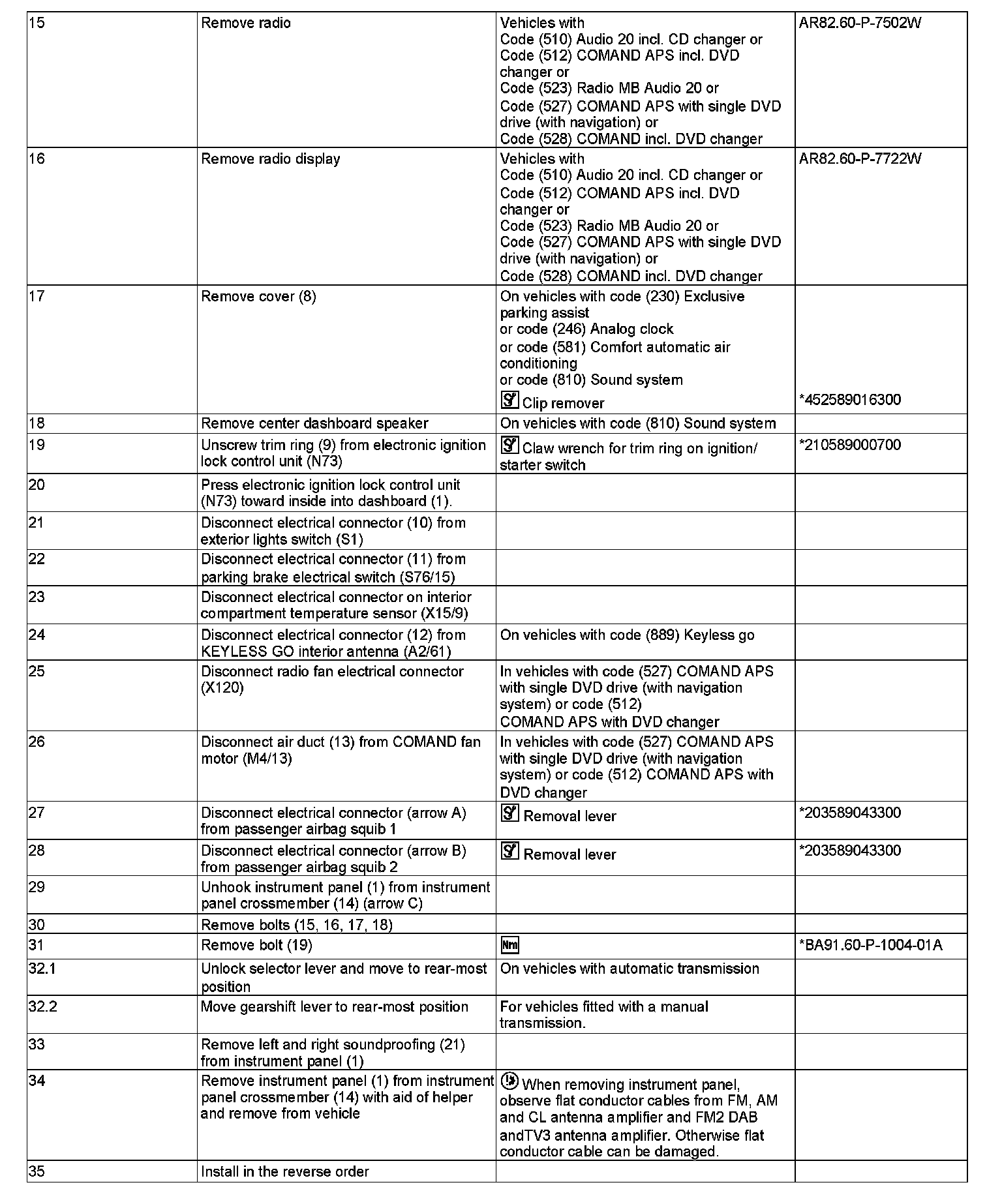

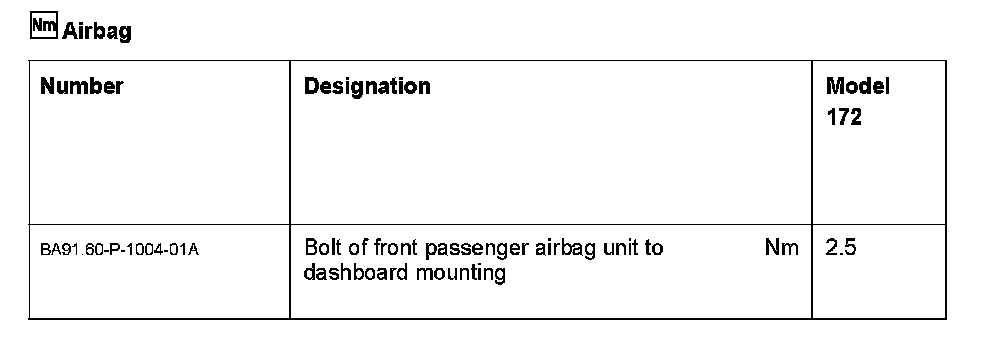

110 589 03 59 00
Mounting wedge





203 589 04 33 00
Removal lever





210 589 00 07 00
Claw-type wrench for rosette on ignition switch





452 589 01 63 00
Snap-release tool
