Overhaul

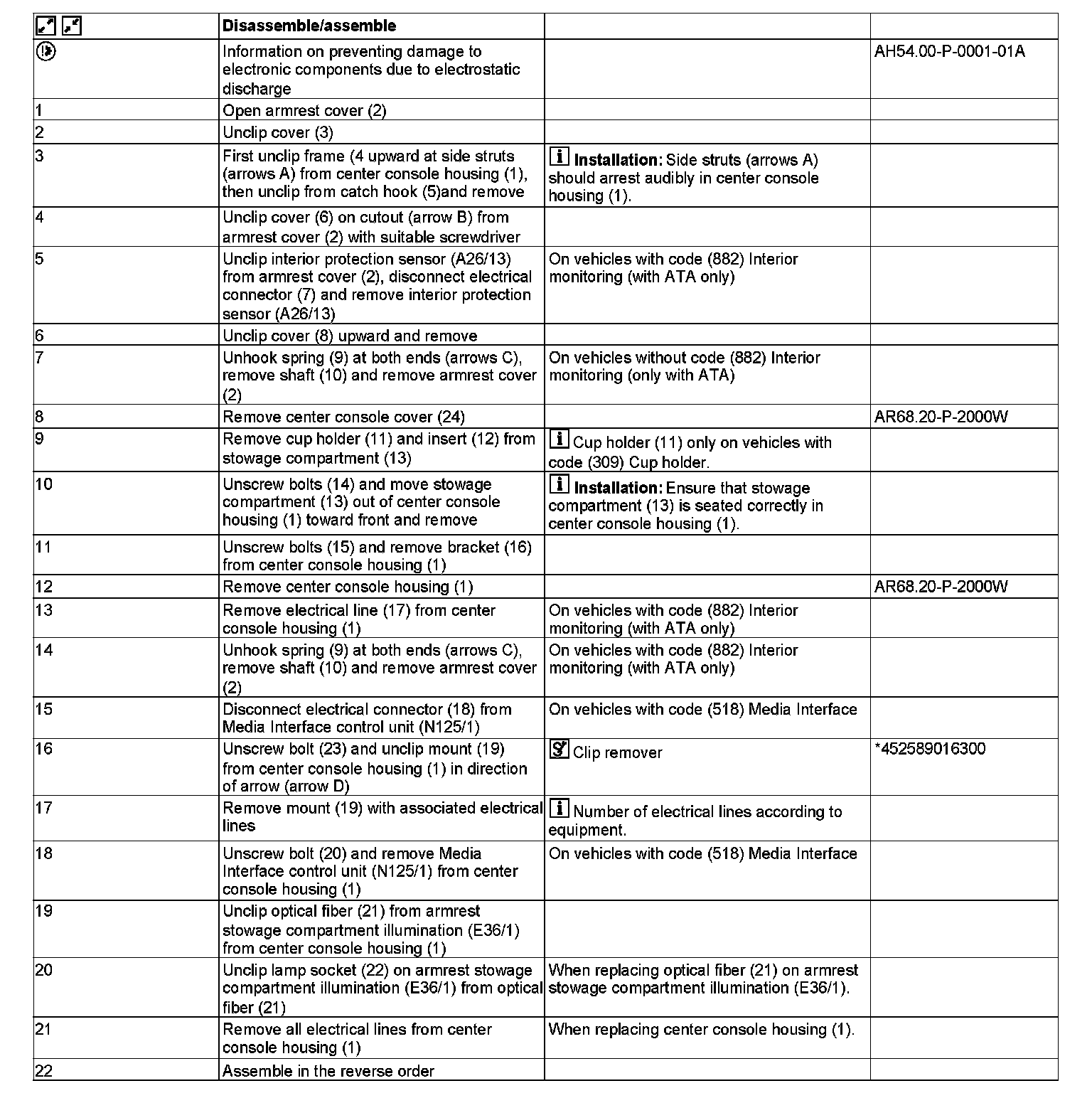

AR68.20-P-2150W Disassemble/Assemble Center Console
MODEL 172.4





Shown with code (882) Interior monitoring (with ATA only)

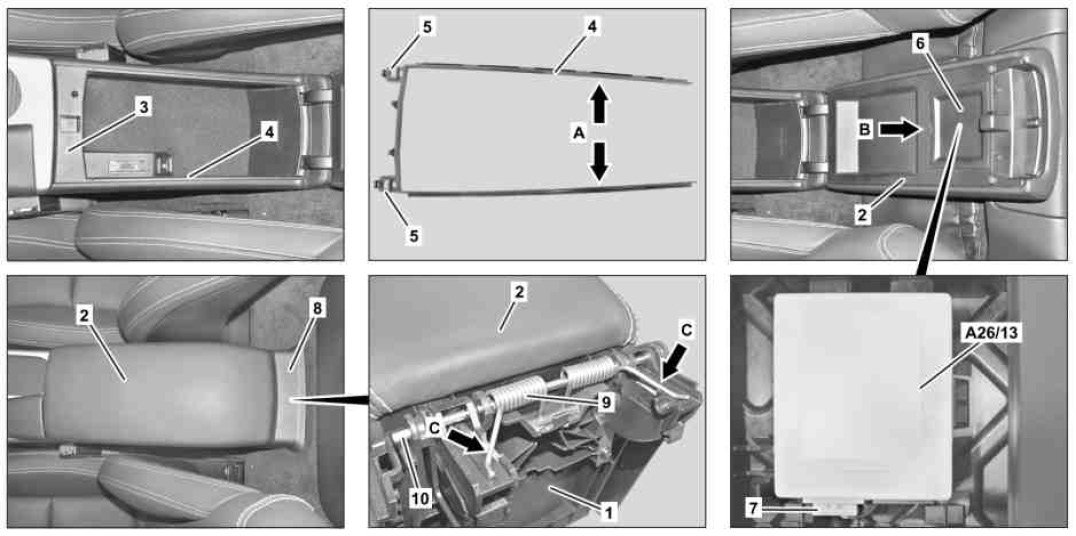

1 Center console housing
2 Armrest cover
3 Cover
4 Frame
5 Catch hook
6 Cover
7 Electrical connector (with code (882) Interior monitoring (with ATA only))
8 Cover
9 Spring
10 Axle

A26/13 Interior protection sensor (with code (882) Interior monitoring (only with ATA))





Shown with code (882) Interior monitoring (only with ATA), code (518) Media Interface and code (309) Cup holder

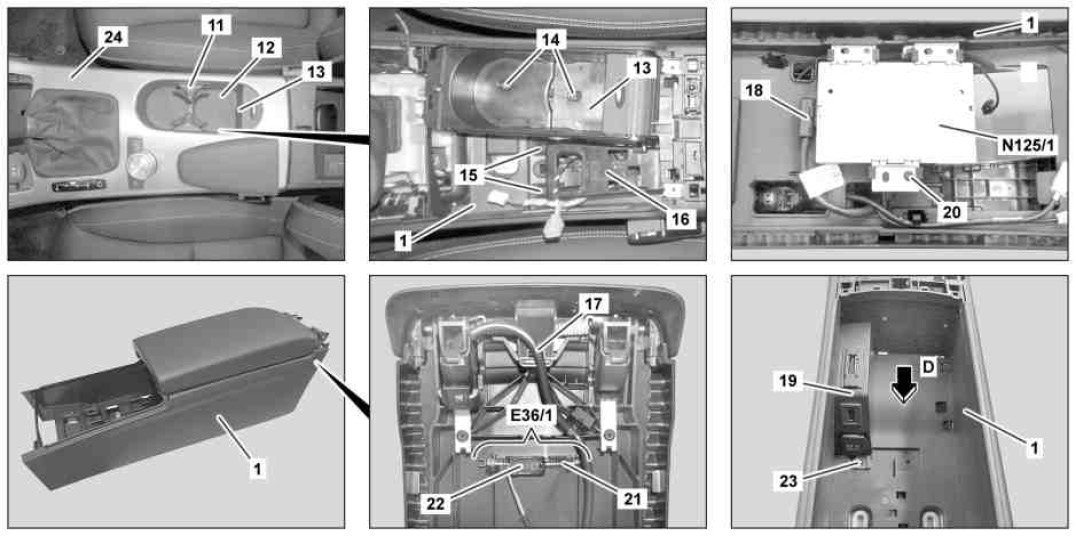

1 Center console housing
11 Cup holder (with code (309) Cup holder)
12 Insertion element
13 Stowage compartment
14 Bolts
15 Bolts
16 Bracket
17 Electrical line (with code (882) Interior monitoring (only with ATA))
18 Electrical connector (with code (518) Media Interface)
19 Support
20 Bolt (with code (518) Media Interface)
21 Optical fiber
22 Bulb socket
23 Screw
24 Center console cover

E36/1 Armrest stowage compartment illumination
N125/1 Media interface control unit (with code (518) Media interface)








452 589 01 63 00
Snap-release tool
