AR35.10-P-0050-01V Attach Front Center Assembly Suspension

AR35.10-P-0050-01V Attach front center assembly suspension

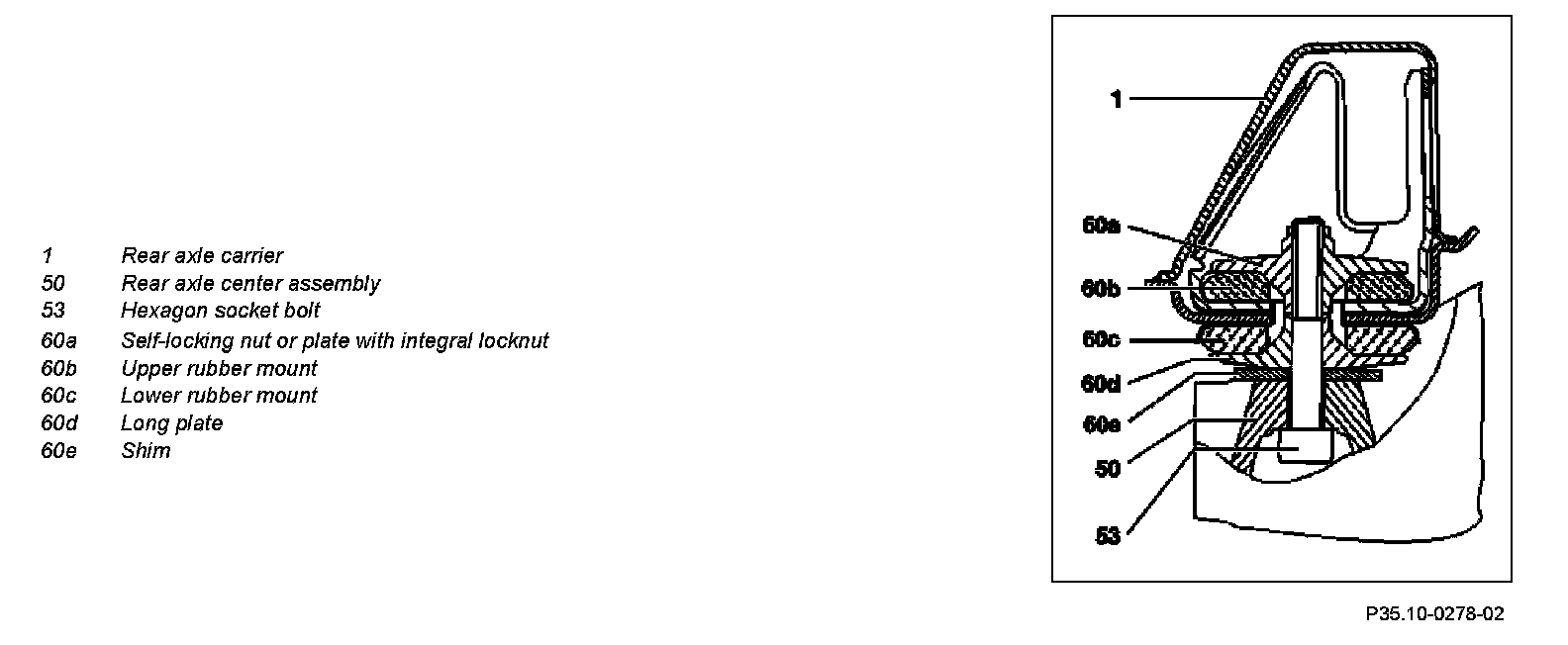

Rear Axle Carrier:

Component Identification:

Attaching
Replace self-locking nut or plate with integral locknut (60a). 1 to 2 shims (60e) can be installed depending on the version.

1 Tighten hexagon socket head screw (53).
