AR35.10-P-0041W Front Rubber Mount of Rear Axle Mount - Removal and Installation

AR35.10-P-0041W Front Rubber Mount Of Rear Axle Mount - Removal And Installation
MODEL 172

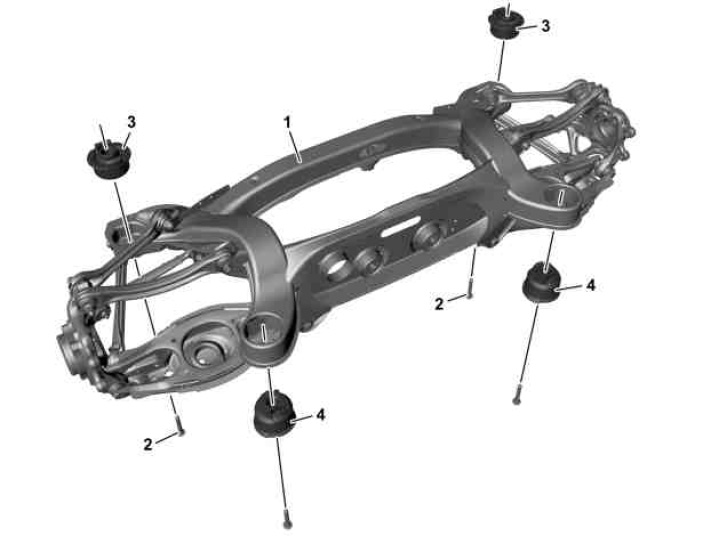

1 Rear axle carrier
2 Screw
3 Front rubber mount
4 Rear rubber mount








171 589 00 43 00
Set of extraction and insertion tools





210 589 01 43 00
Extraction and insertion tool
