Trunk / Liftgate Weatherstrip: Service and Repair

AR88.50-P-5010W Remove/Install Trunk Lid Seal
MODEL 172.4

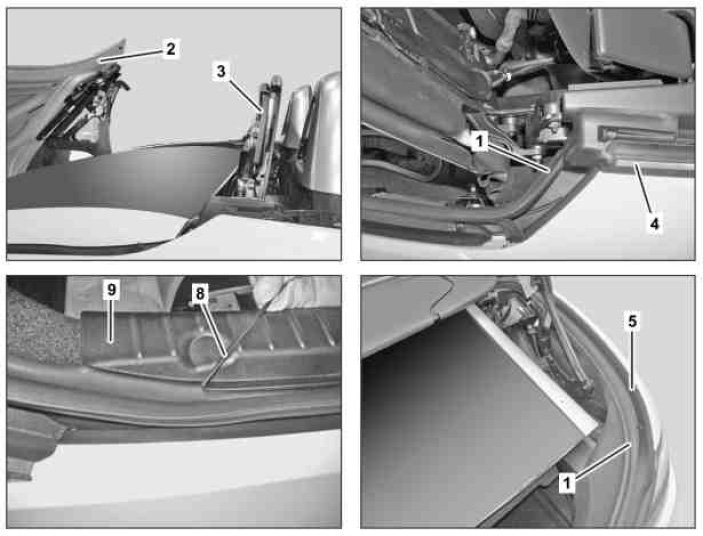

1 Trunk lid seal
2 Trunk lid
3 Rear shelf
4 Outer shaft seal
5 Water drain channel
8 Assembly cord
9 Rear center section paneling





1 Trunk lid seal

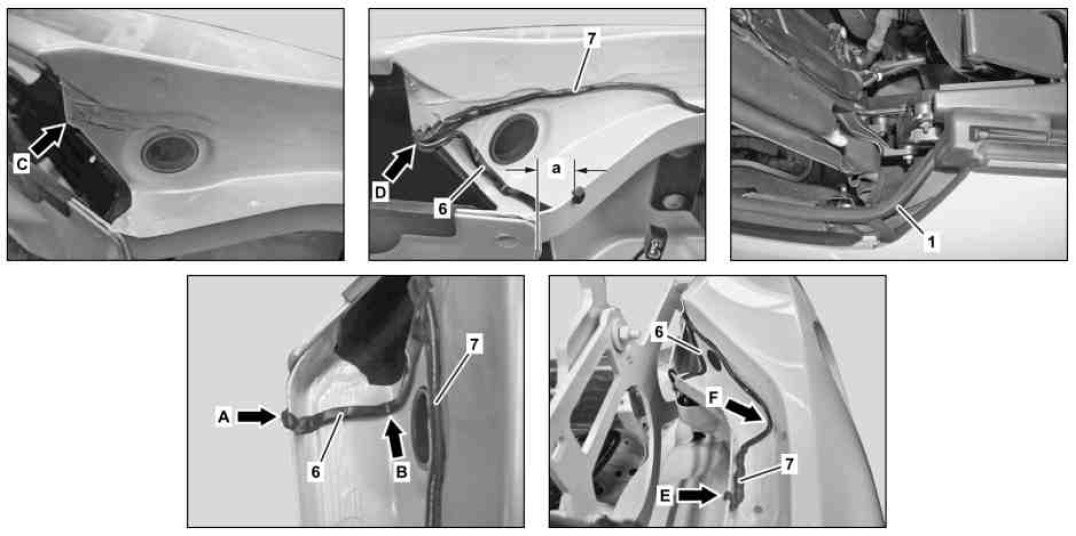

6 Sealing profile
7 Sealing profile

a Guide dimension











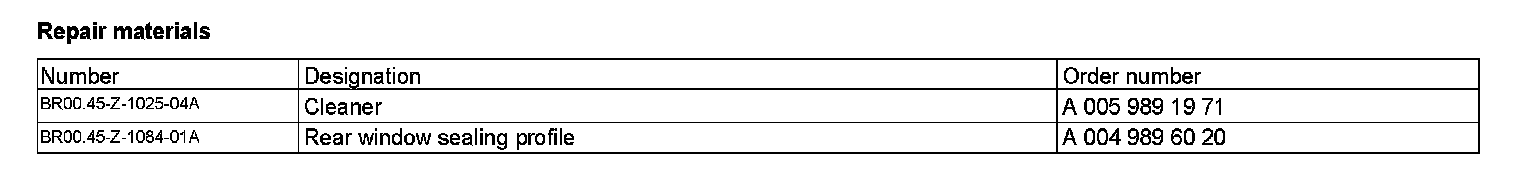

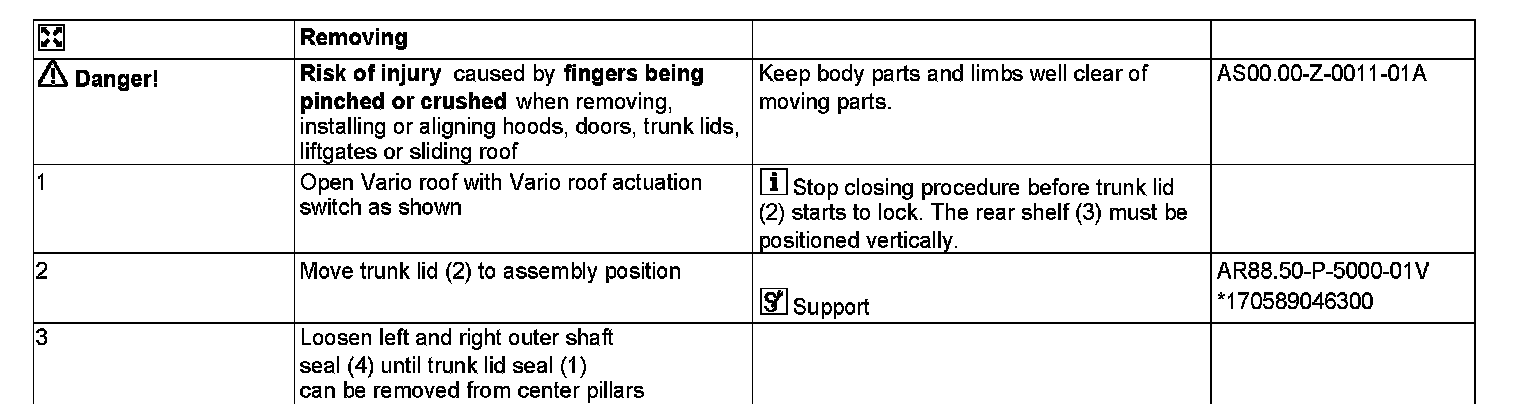

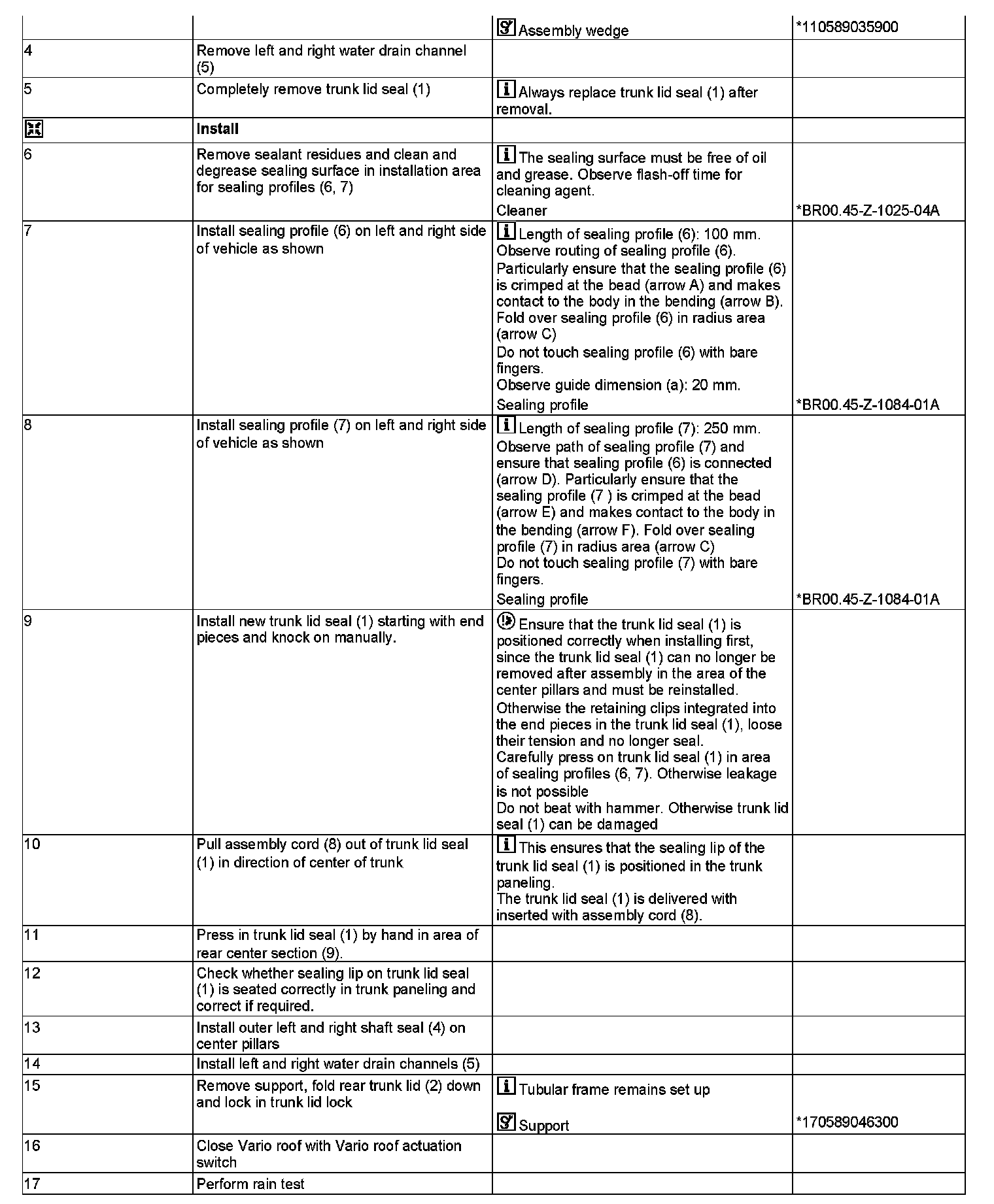

110 589 03 59 00
Mounting wedge





170 589 04 63 00
Support
