Trunk / Liftgate Striker: Adjustments

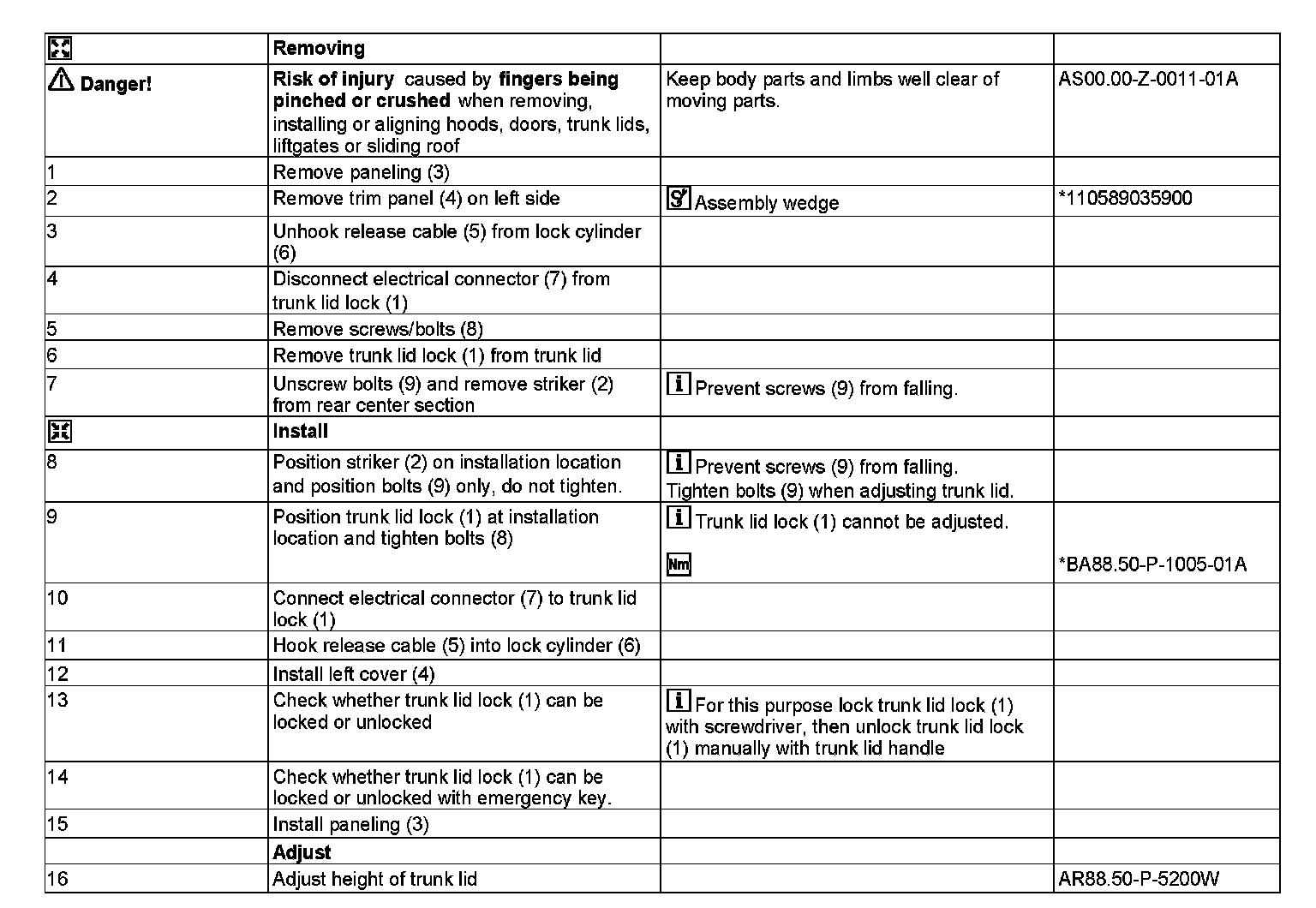

AR88.50-P-5020W Remove/Install and Adjust Trunk Lid Lock and Striker Eye
MODEL 172.4

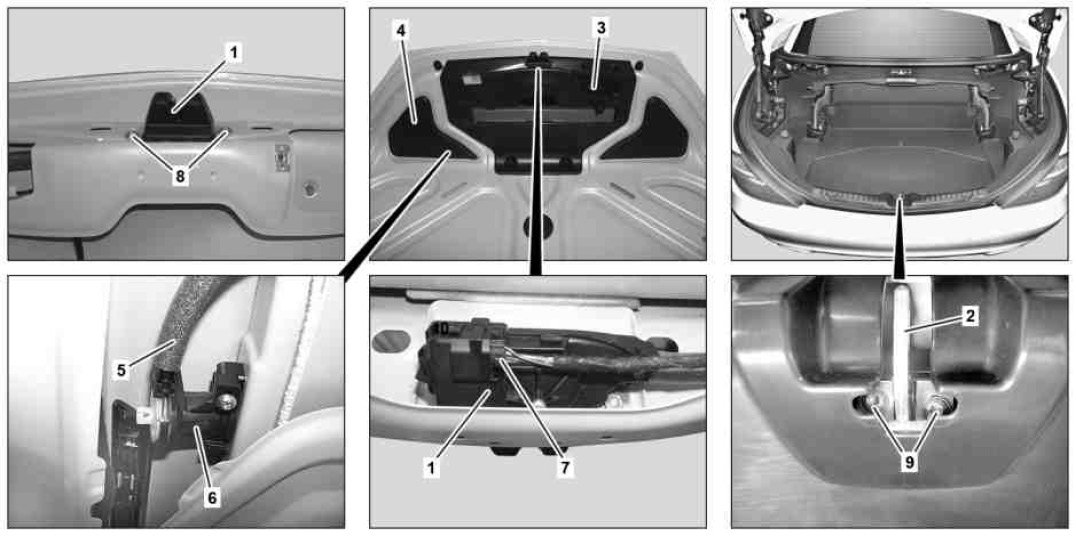

1 Trunk lid lock
2 Striker
3 Cover
4 Left cover
5 Release cable
6 Lock cylinder
7 Electrical connector
8 Bolts
9 Bolts











110 589 03 59 00
Mounting wedge
