Trunk / Liftgate Shock / Support: Service and Repair



AR88.50-P-5110V Remove/install Trunk Lid Gas-operated Strut

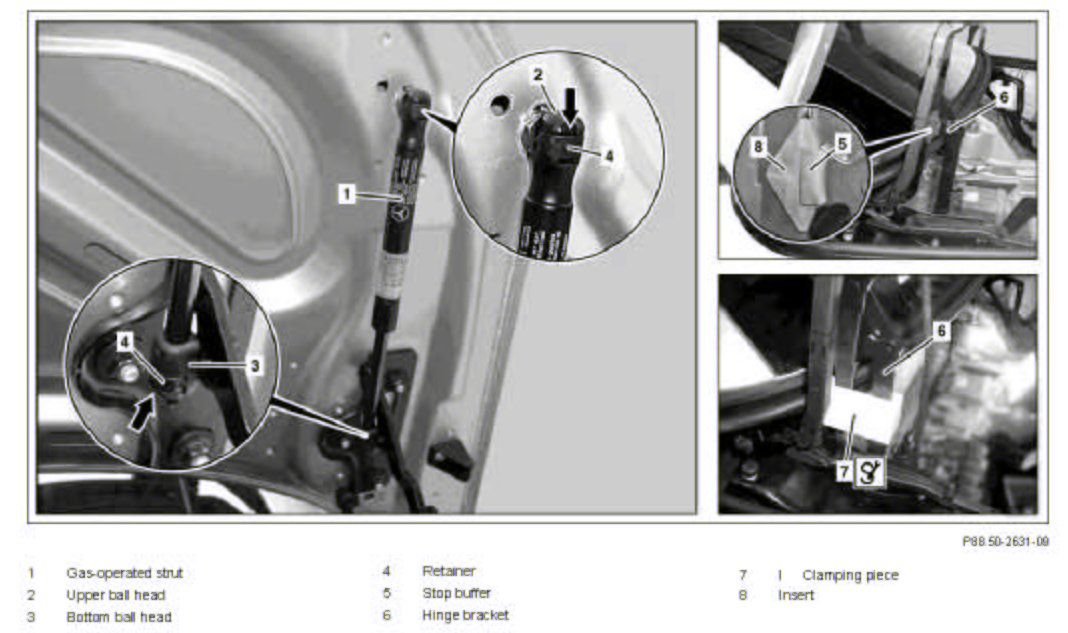

Component Identification:




Modification Notes:

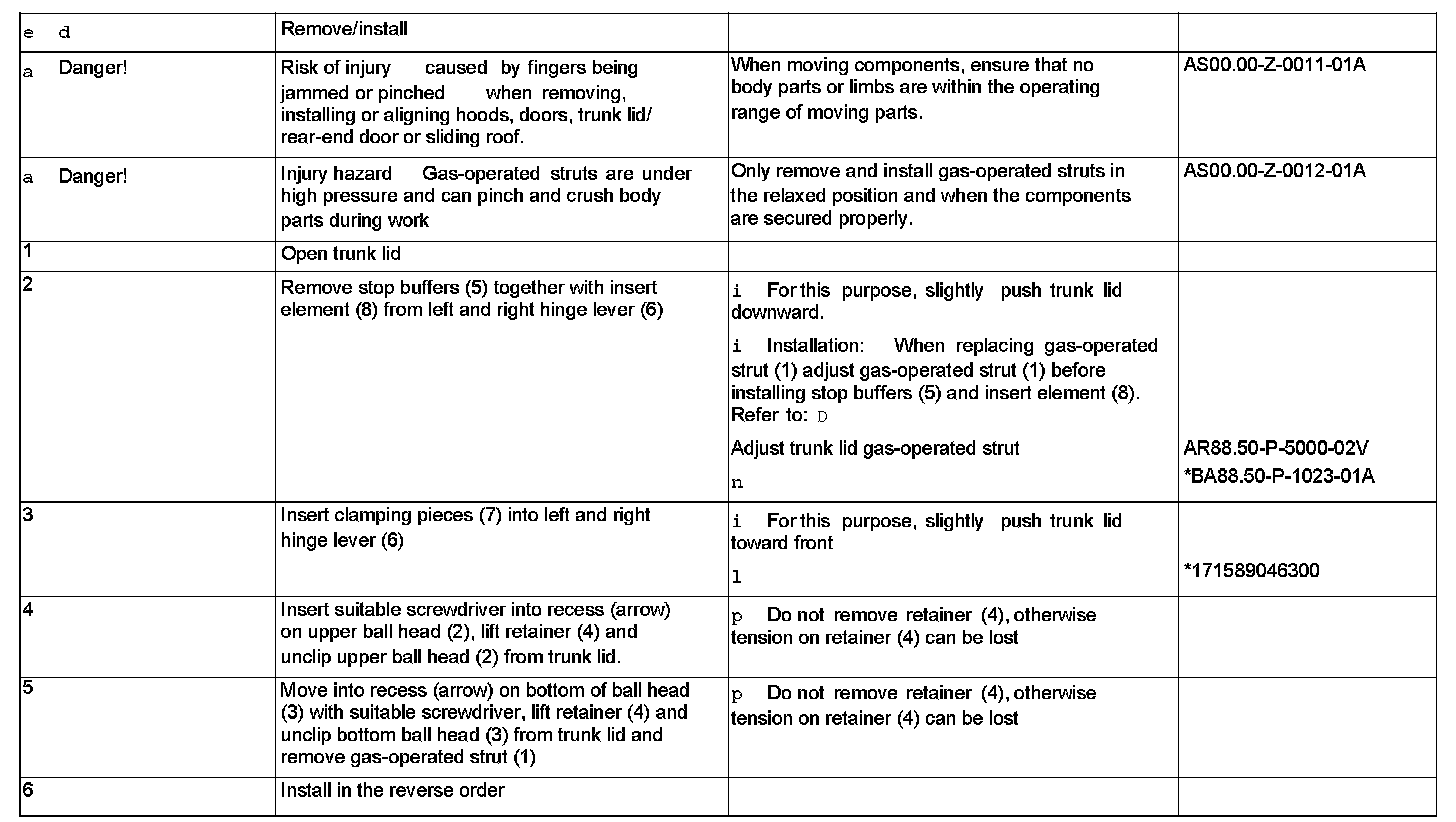

Steps 1 - 6:




Trunk Lid:

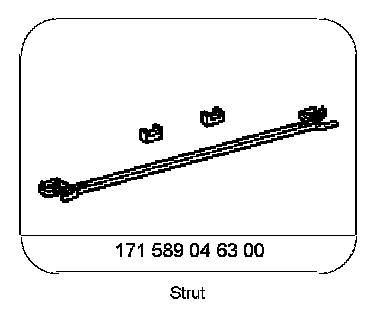

Special Tools:
