Trunk / Liftgate: Specifications
BA88.50-P-1000-01A Trunk Lid

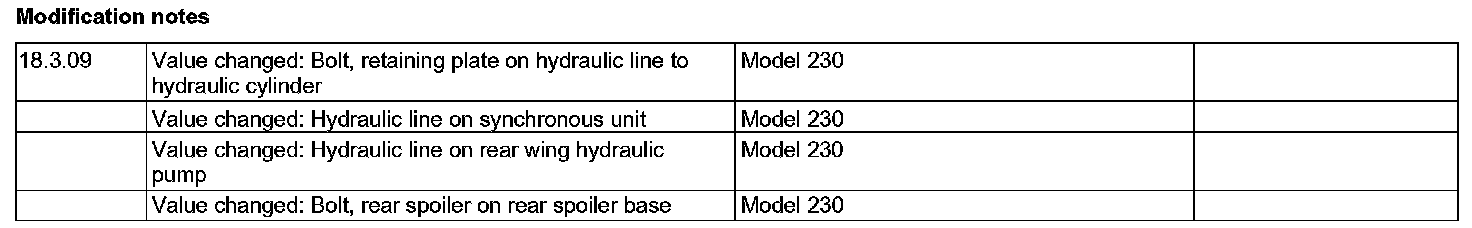

Modification Notes:

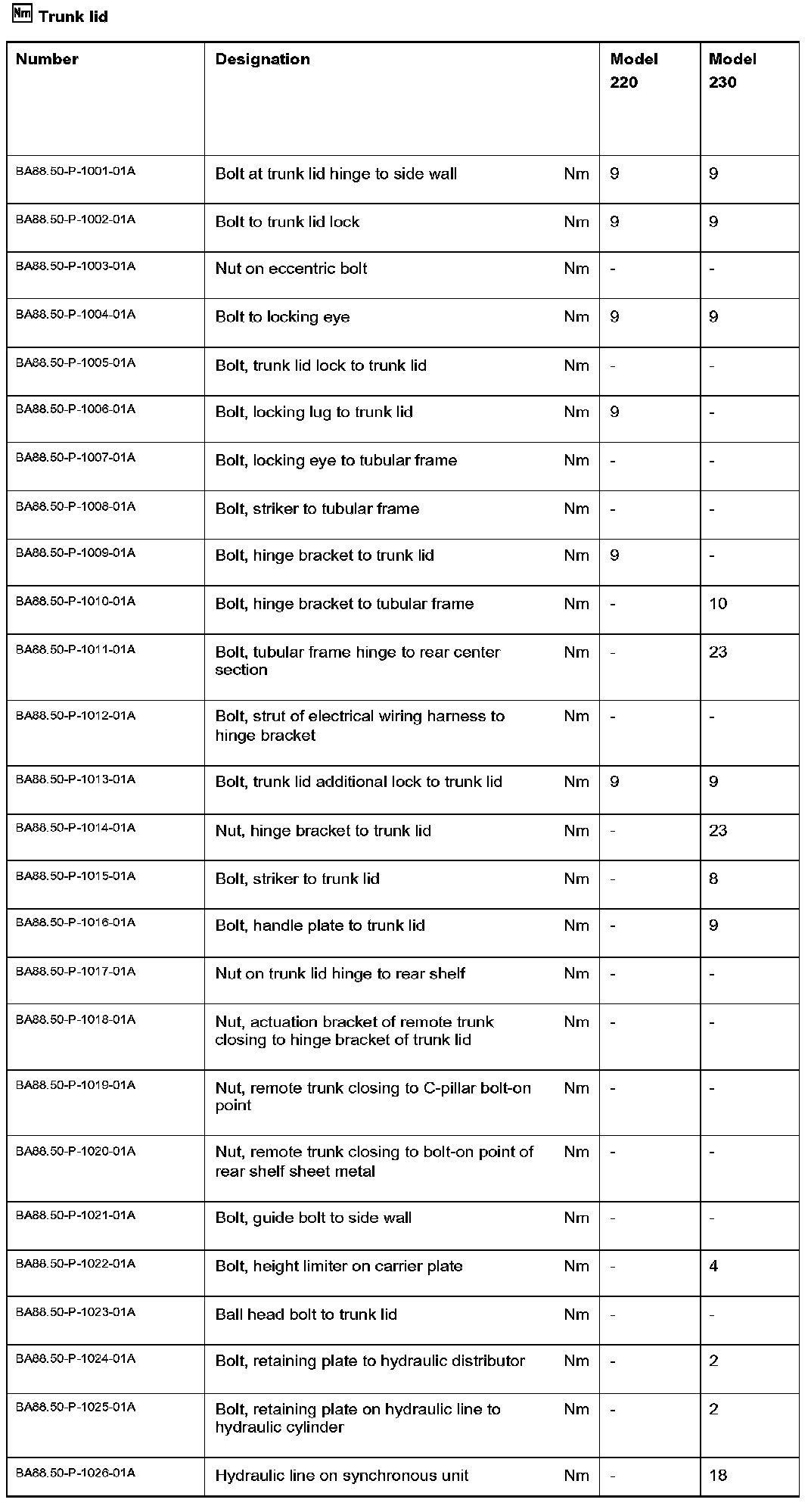

Trunk Lid (Part 1):

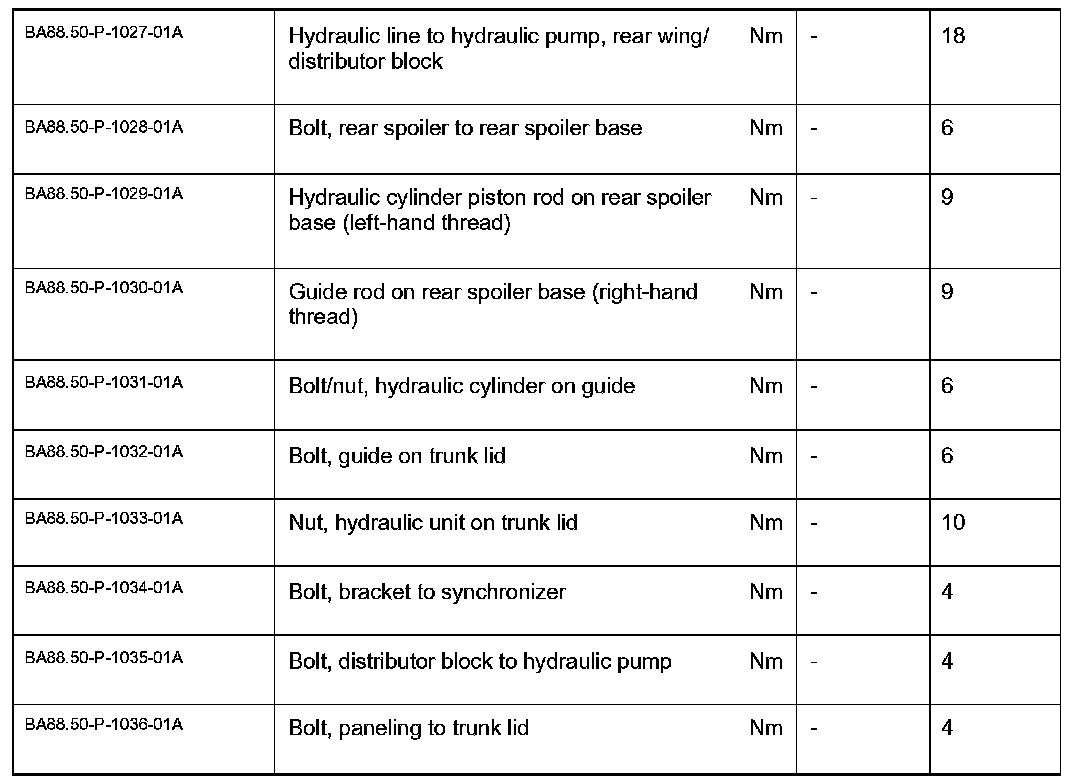

Trunk Lid (Part 2):
Trunk Lid (Part 1):

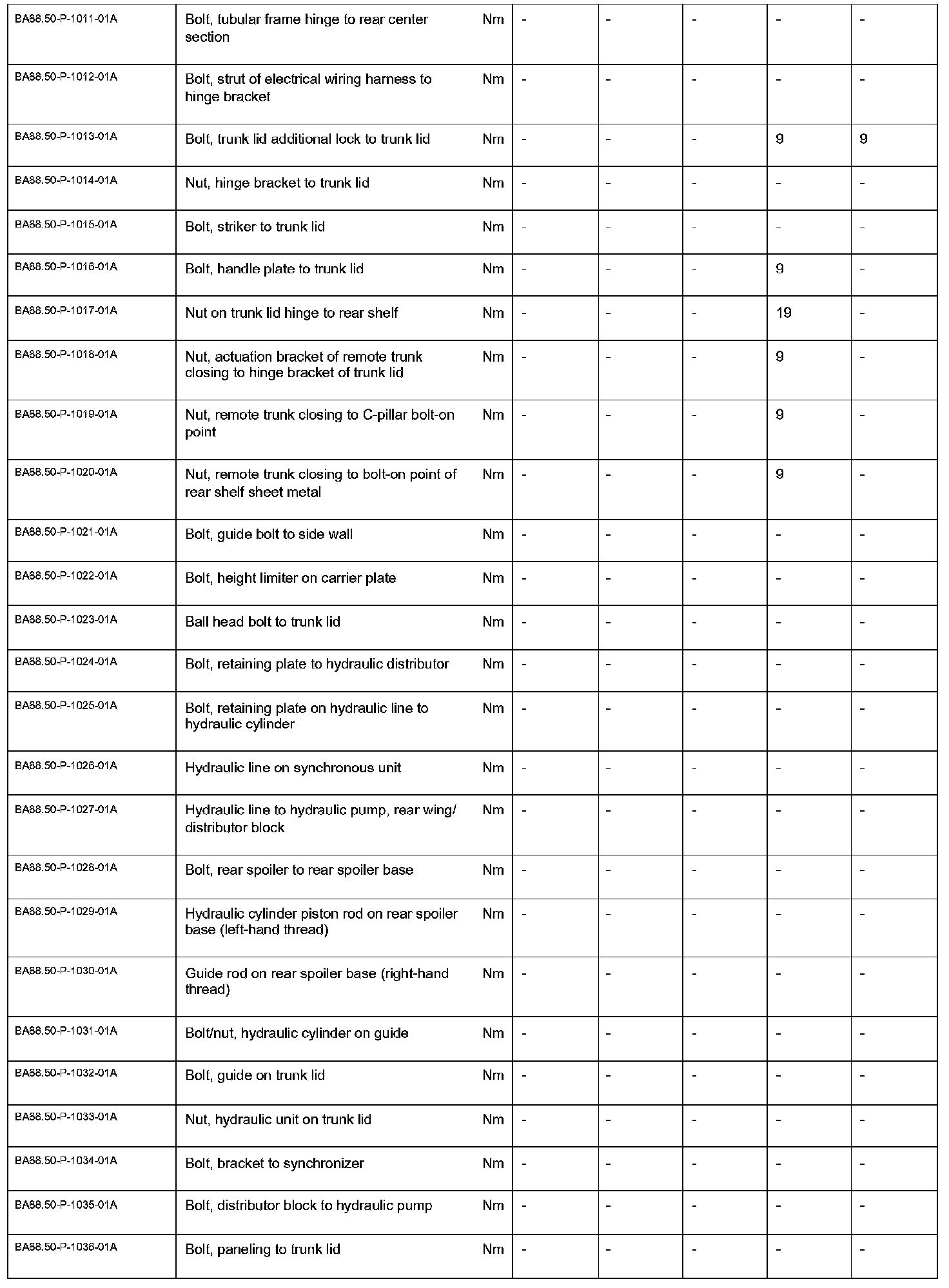

Trunk Lid (Part 2):

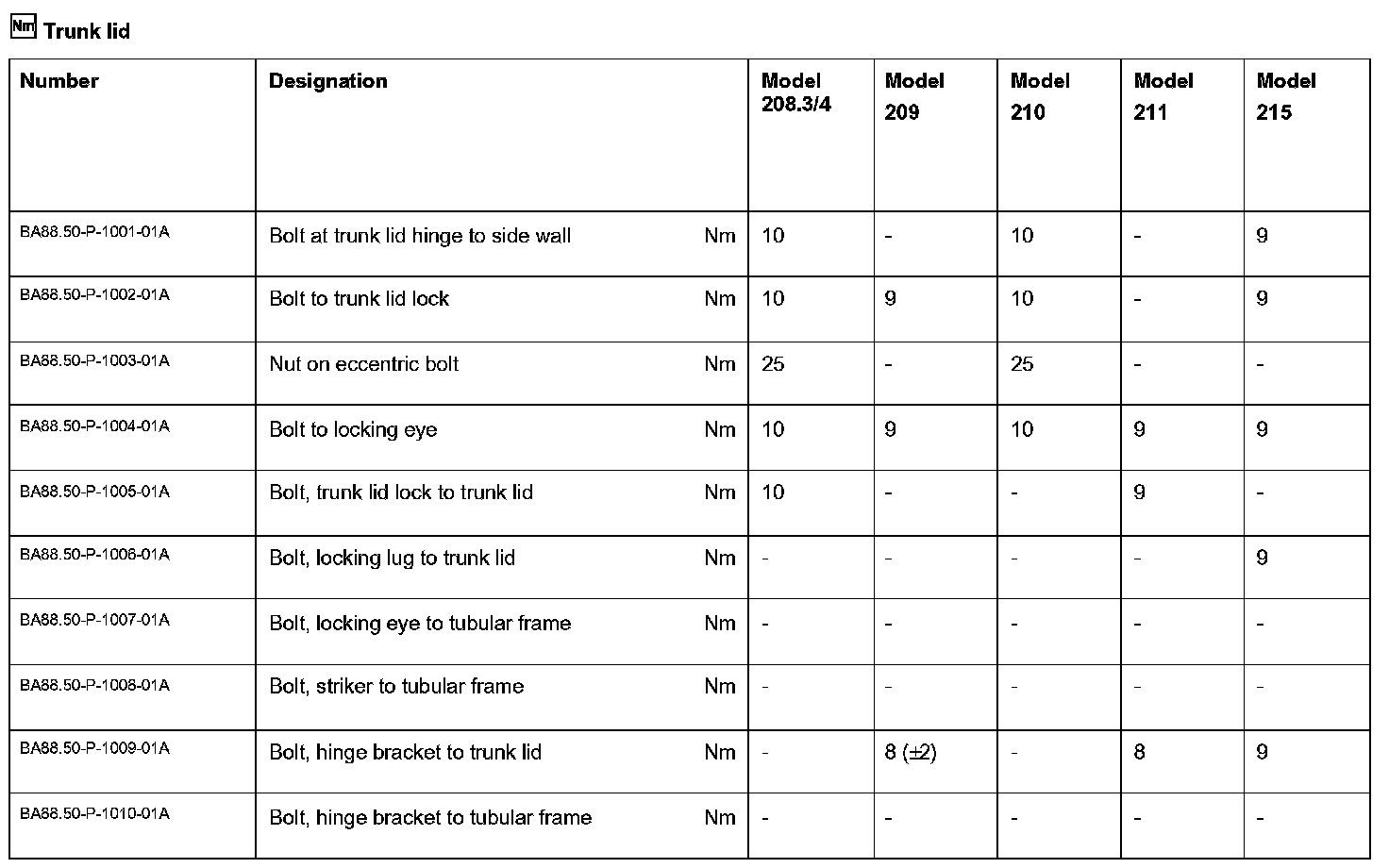

Trunk Lid (Part 1):

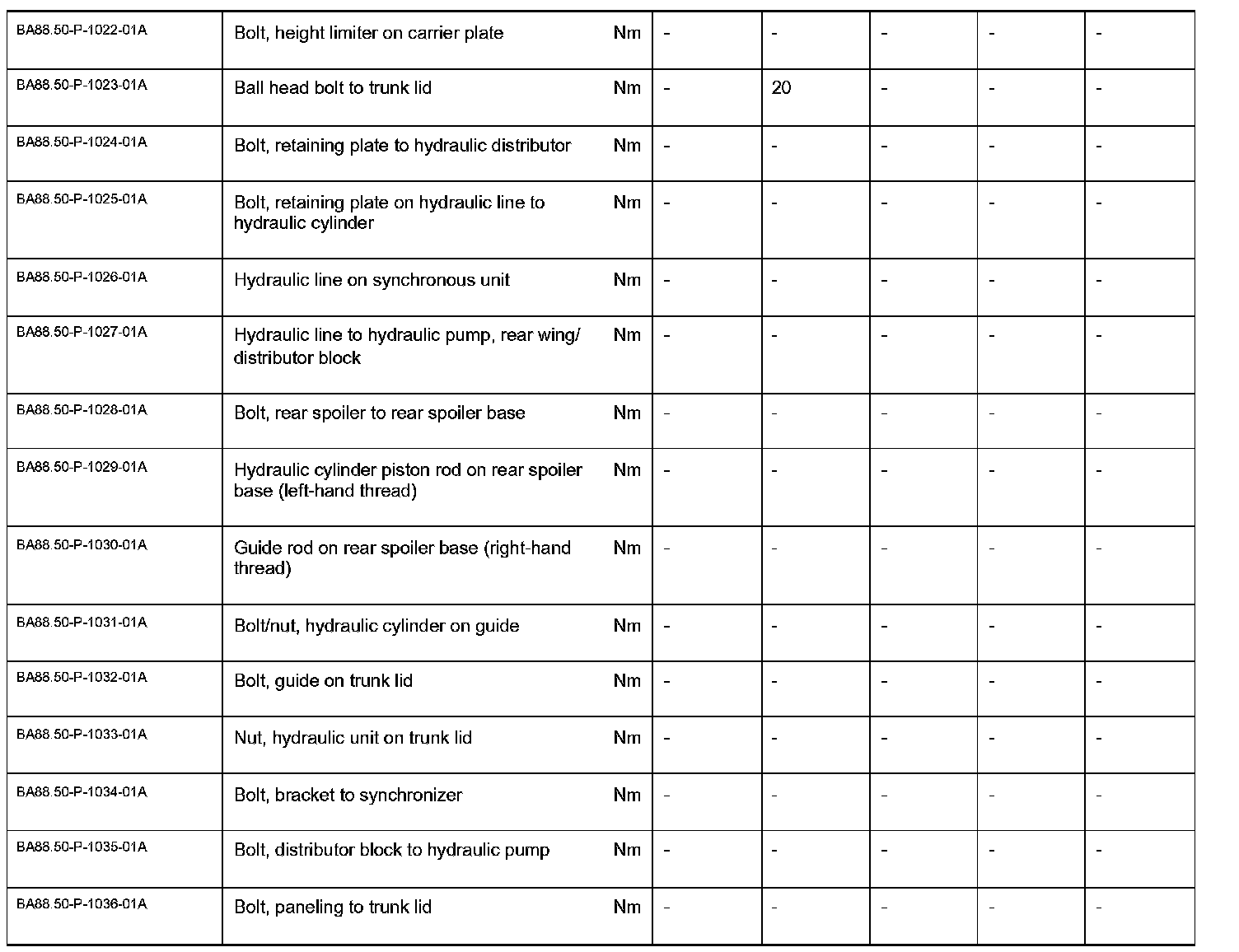

Trunk Lid (Part 2):
