AR88.50-P-5100W Remove/Install Tubular Frame for Trunk Lid

AR88.50-P-5100W Remove/Install Tubular Frame For Trunk Lid

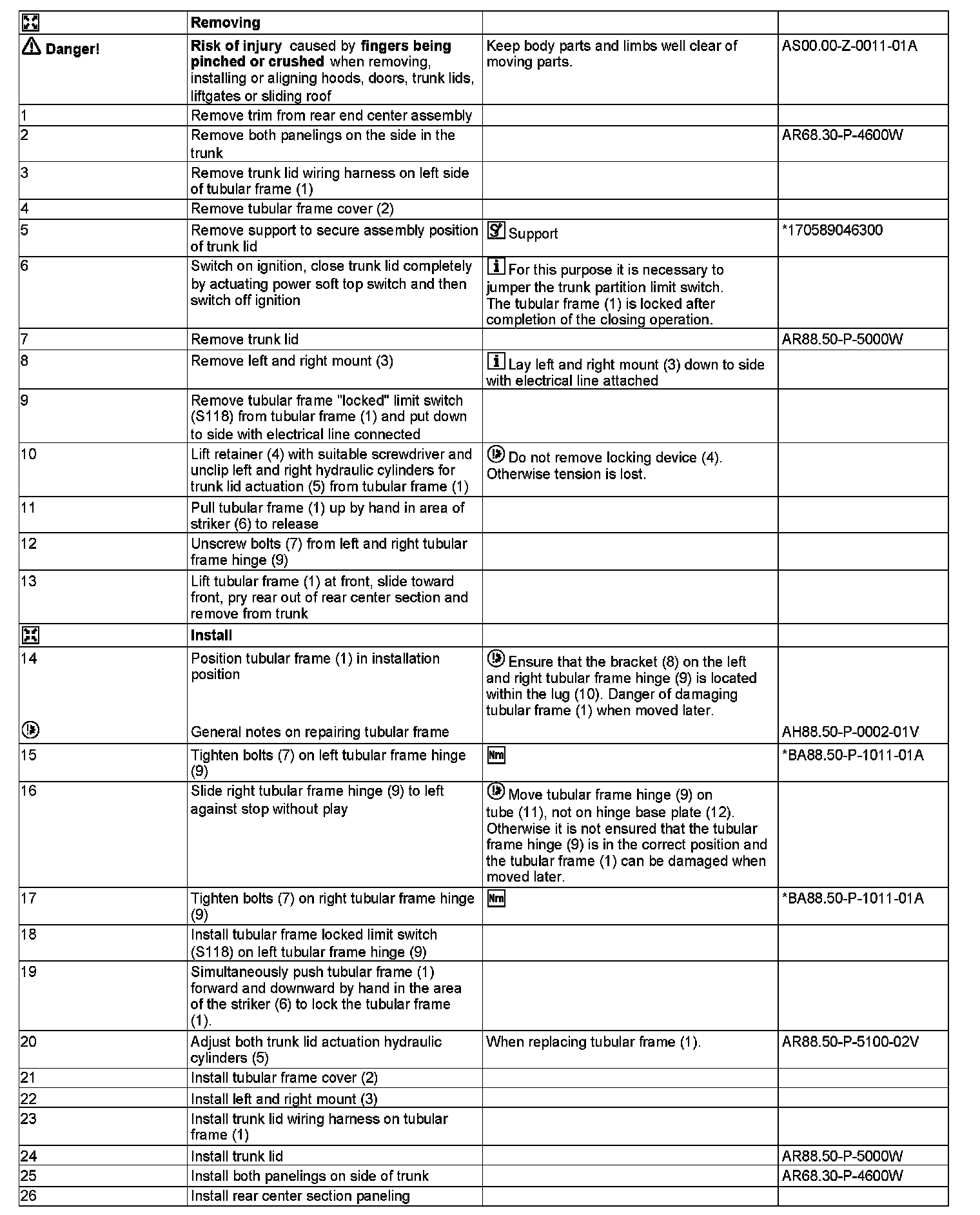

MODEL 172.4

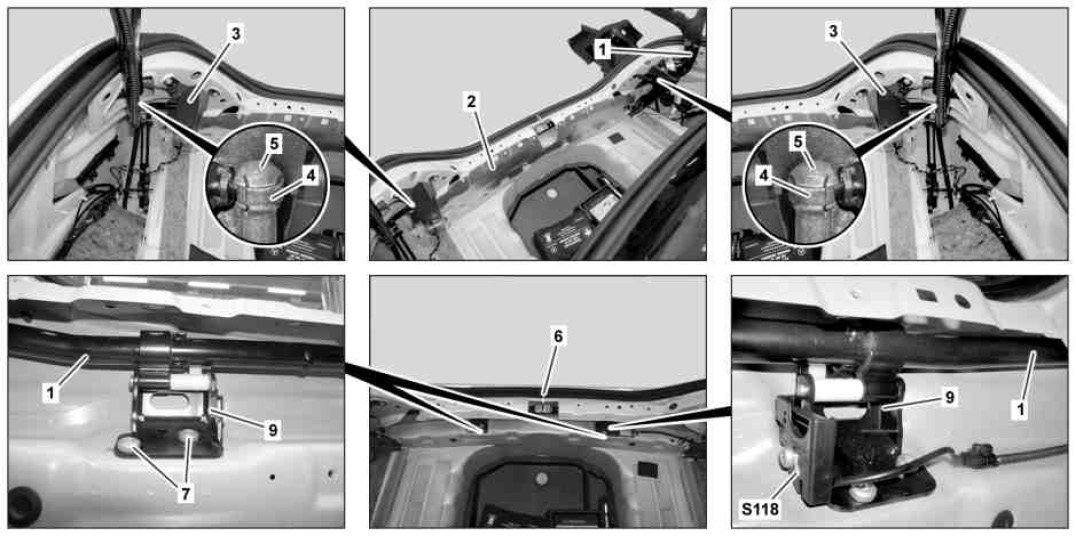

1 Tubular frame
2 Tubular frame cover
3 Support
4 Fuse
5 Trunk lid actuation hydraulic cylinder
6 Striker
7 Bolts
9 Tubular frame hinge

S118 Tubular frame "locked" limit switch

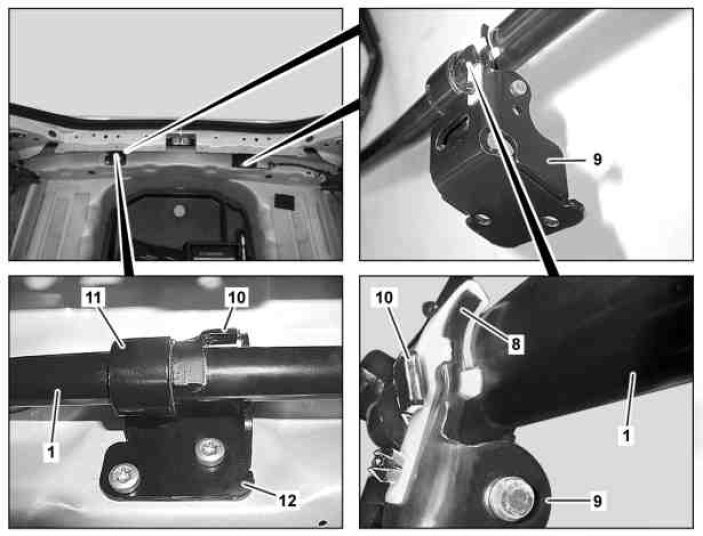

1 Tubular frame
8 Bow
9 Tubular frame hinge
10 Tab
11 Pipe
12 Hinge base plate











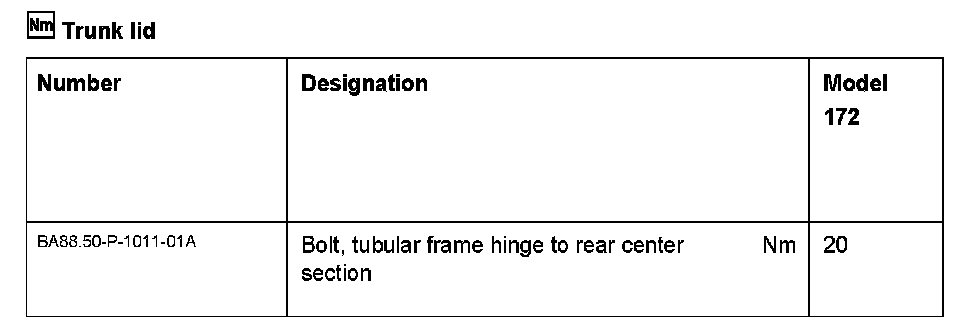

170 589 04 63 00

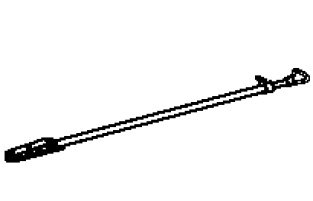

Support
