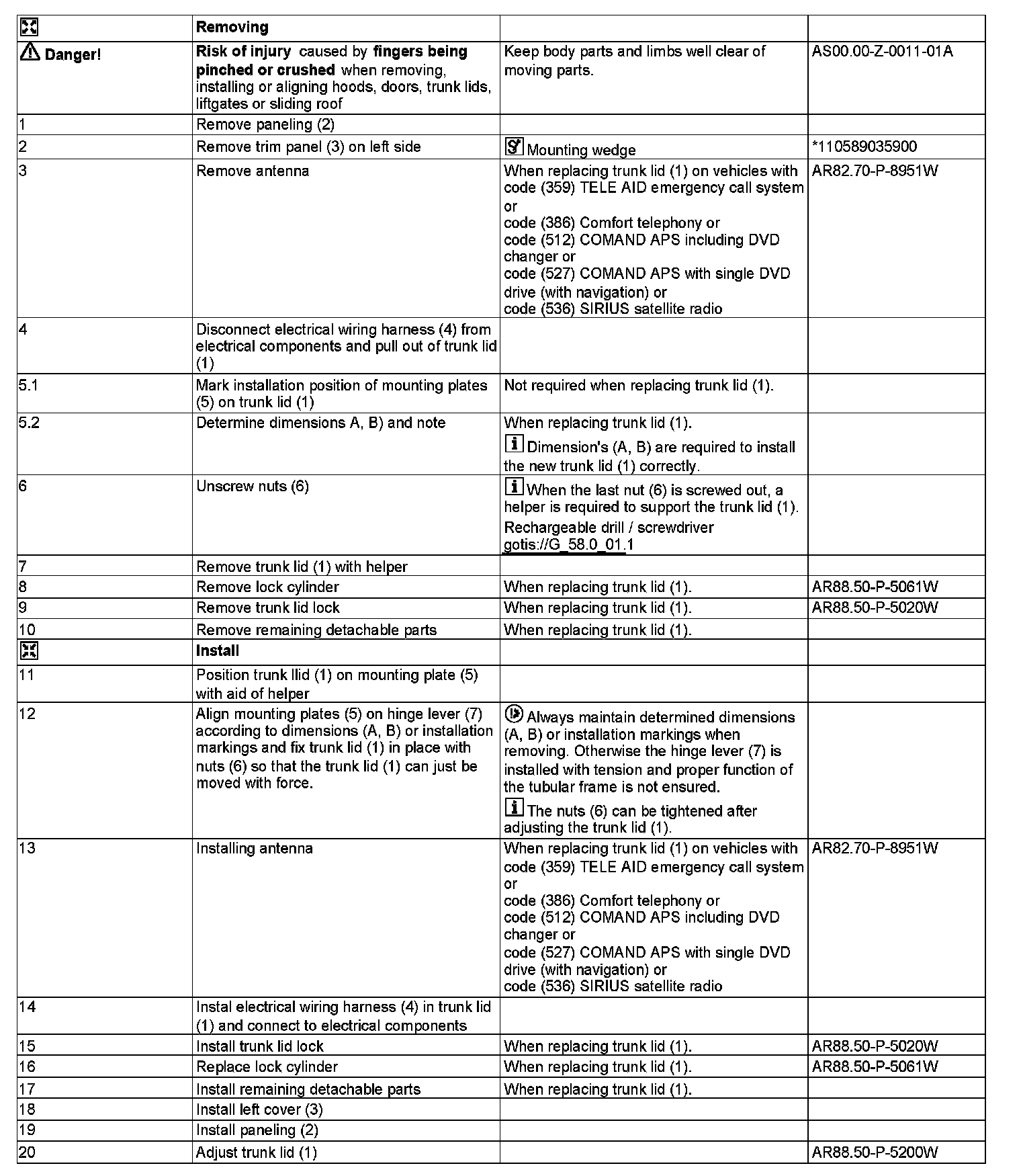

AR88.50-P-5000W Remove/Install Trunk Lid

AR88.50-P-5000W Remove/Install Trunk Lid
MODEL 172.4

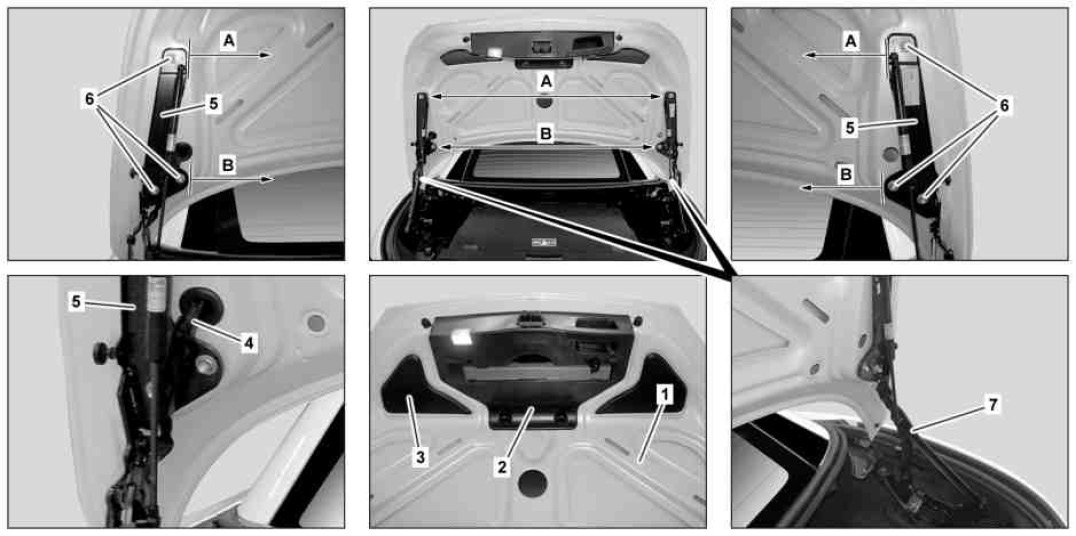

1 Trunk lid
2 Cover
3 Left cover
4 Wiring harness
5 Support plate
6 Nuts
7 Hinge bracket

A Dimension (top)
B Dimension (bottom)








110 589 03 59 00
Mounting wedge
