AR88.50-P-5200W Adjust Trunk Lid

AR88.50-P-5200W Adjust Trunk Lid
MODEL 172.4

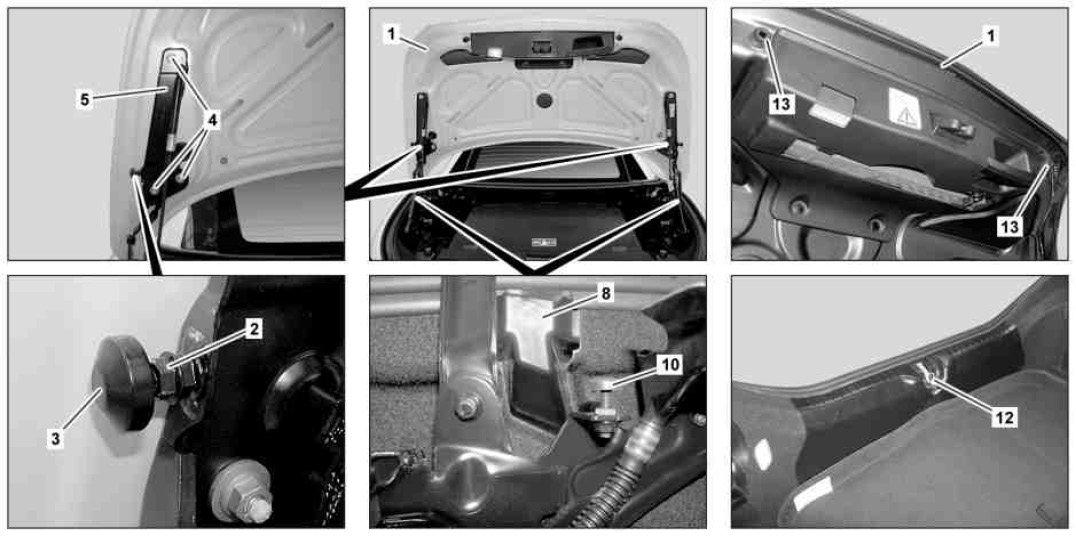

1 Trunk lid
2 Jam nut
3 Y-stop
4 Nuts
5 Support plate
8 Y-fasteners
10 Height stop
12 Striker
13 Buffer

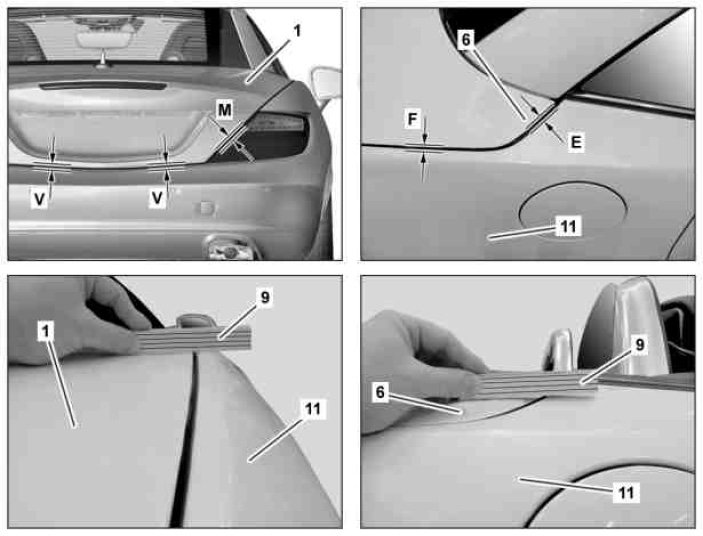

1 Trunk lid
6 Trunk lid tip
9 Straightedge
11 Rear fender

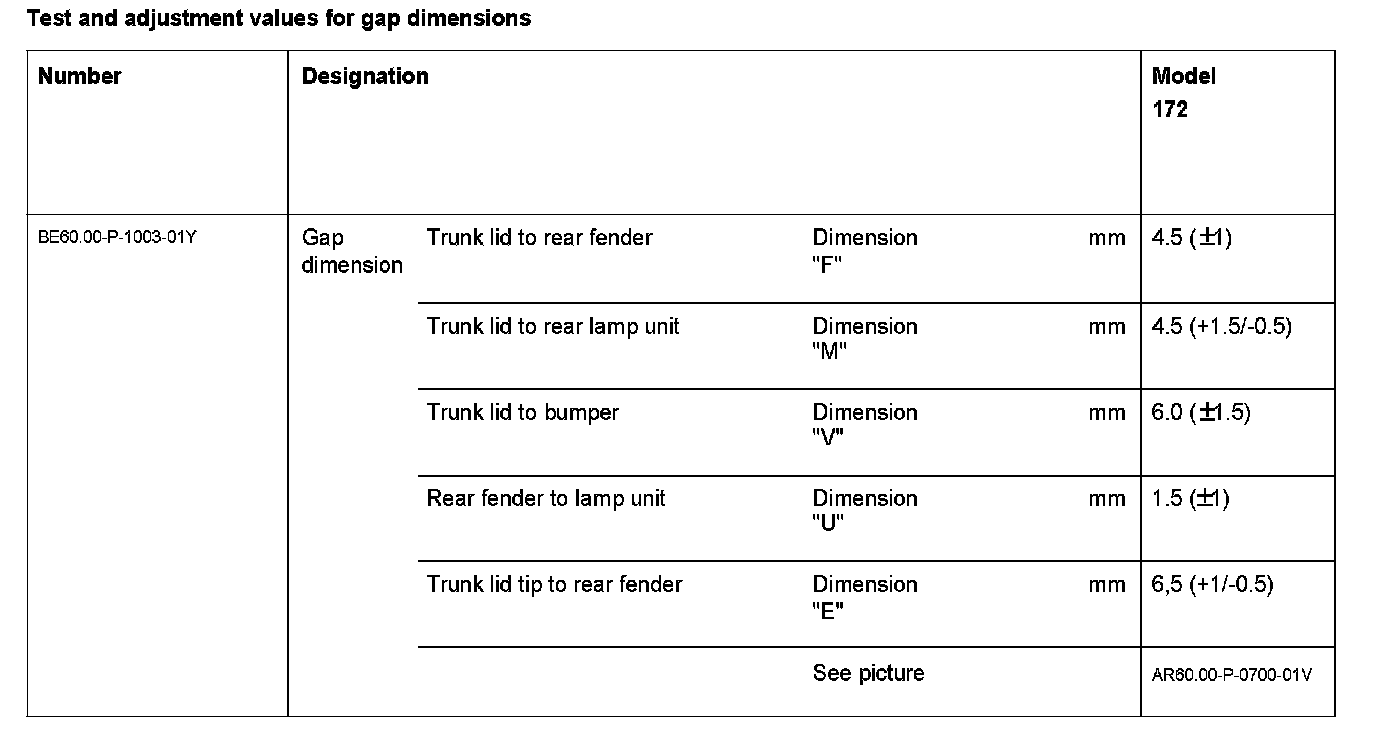

E Gap dimension
F Gap dimension
M Gap dimension
V Gap dimension














129 589 03 21 00
Feeler gauge
