Hood Latch: Service and Repair

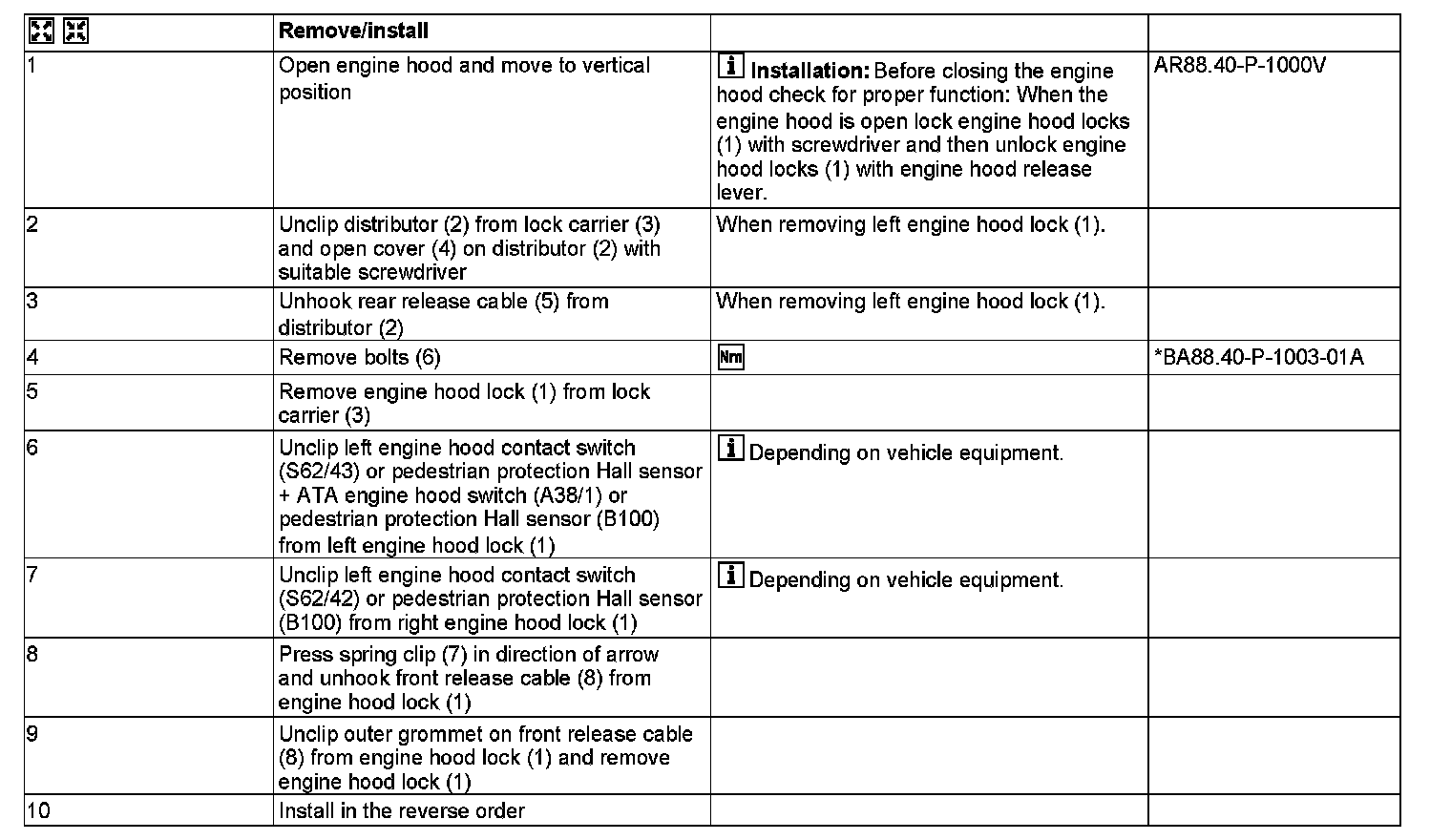

AR88.40-P-3200W Remove/Install Engine Hood Catch
MODEL 172.4

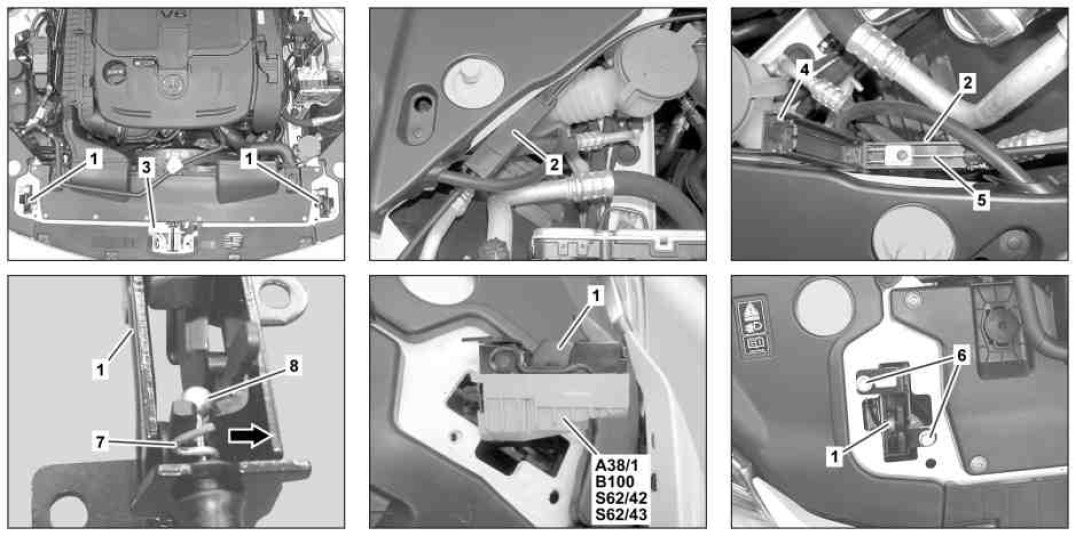

Shown with code (U60) Pedestrian protection

1 Engine hood catch
2 Distributor
3 Front end crossmember
4 Cover
5 Rear release cable
6 Bolts
7 Spring U-bolt
8 Front release cable

A38/1 Pedestrian protection Hall sensor + engine hood ATA switch (with code (U60) Pedestrian protection)
B100 Pedestrian protection Hall sensor (with code (U60) Pedestrian protection)
S62/42 Right engine hood contact switch (for code (B03) ECO start/stop function)
S62/43 Left engine hood contact switch (with code 551) Antitheft alarm system (ATA) and code (B03) ECO start/stop function) and without code (U60) Pedestrian protection)
