Hood Hinge: Service and Repair

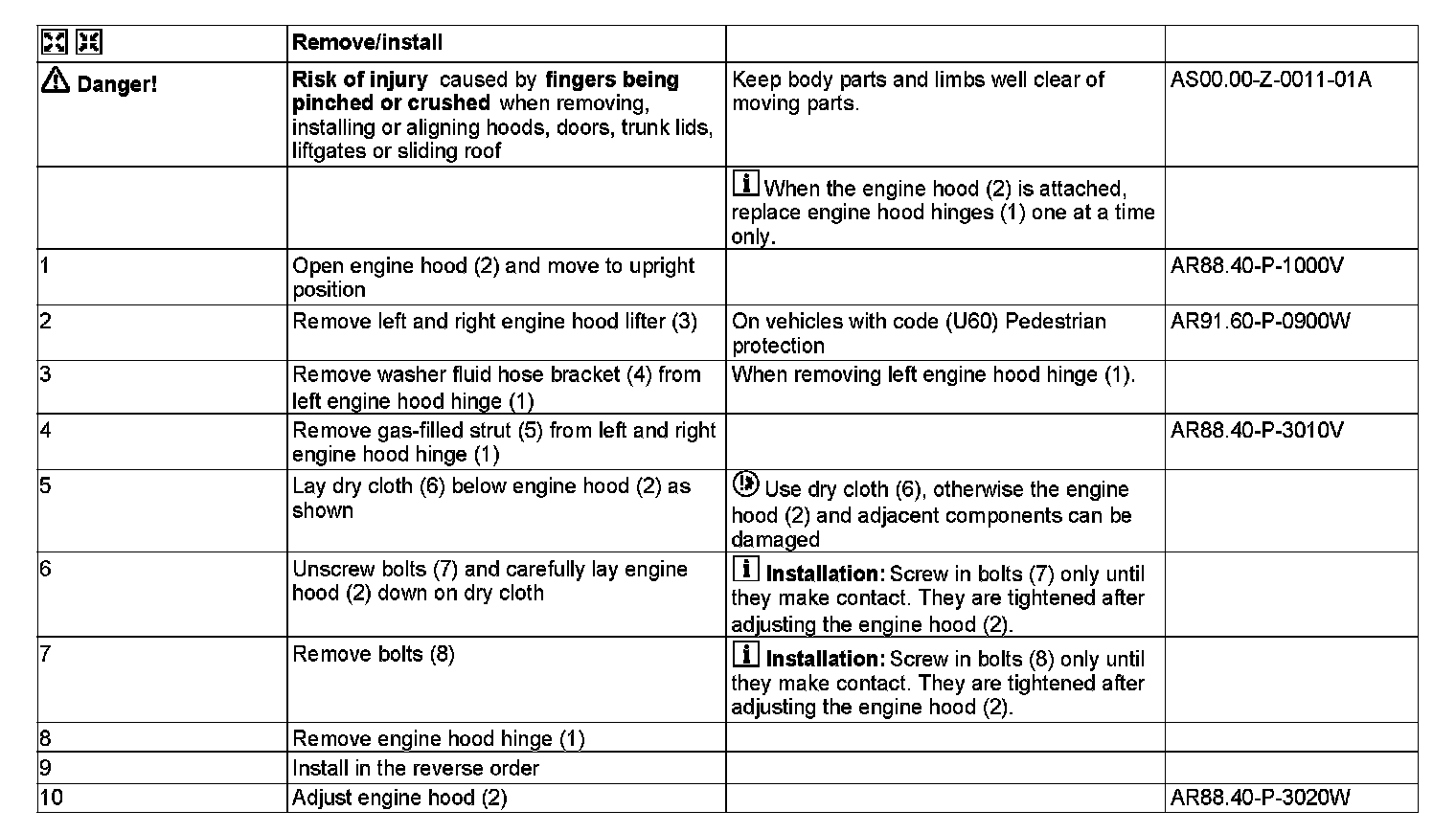

AR88.40-P-3060W Remove/Install Hood Hinge
MODEL 172.4

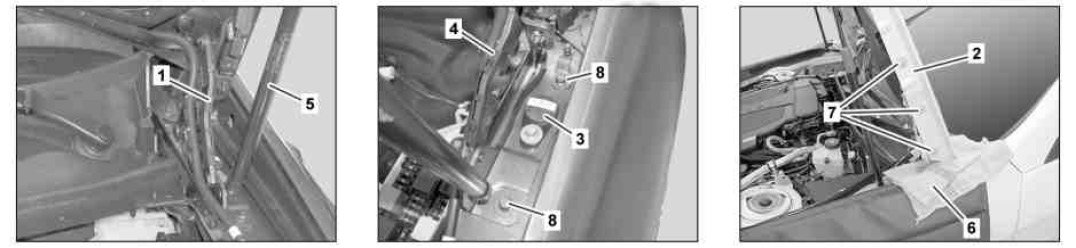

Shown with code (U60) Pedestrian protection

1 Engine hood hinge
2 Engine hood
3 Engine hood lifter (with code (U60) Pedestrian protection)
4 Washer fluid hose bracket
5 Gas-operated strut
6 Dry cloth
7 Bolts
8 Screw
