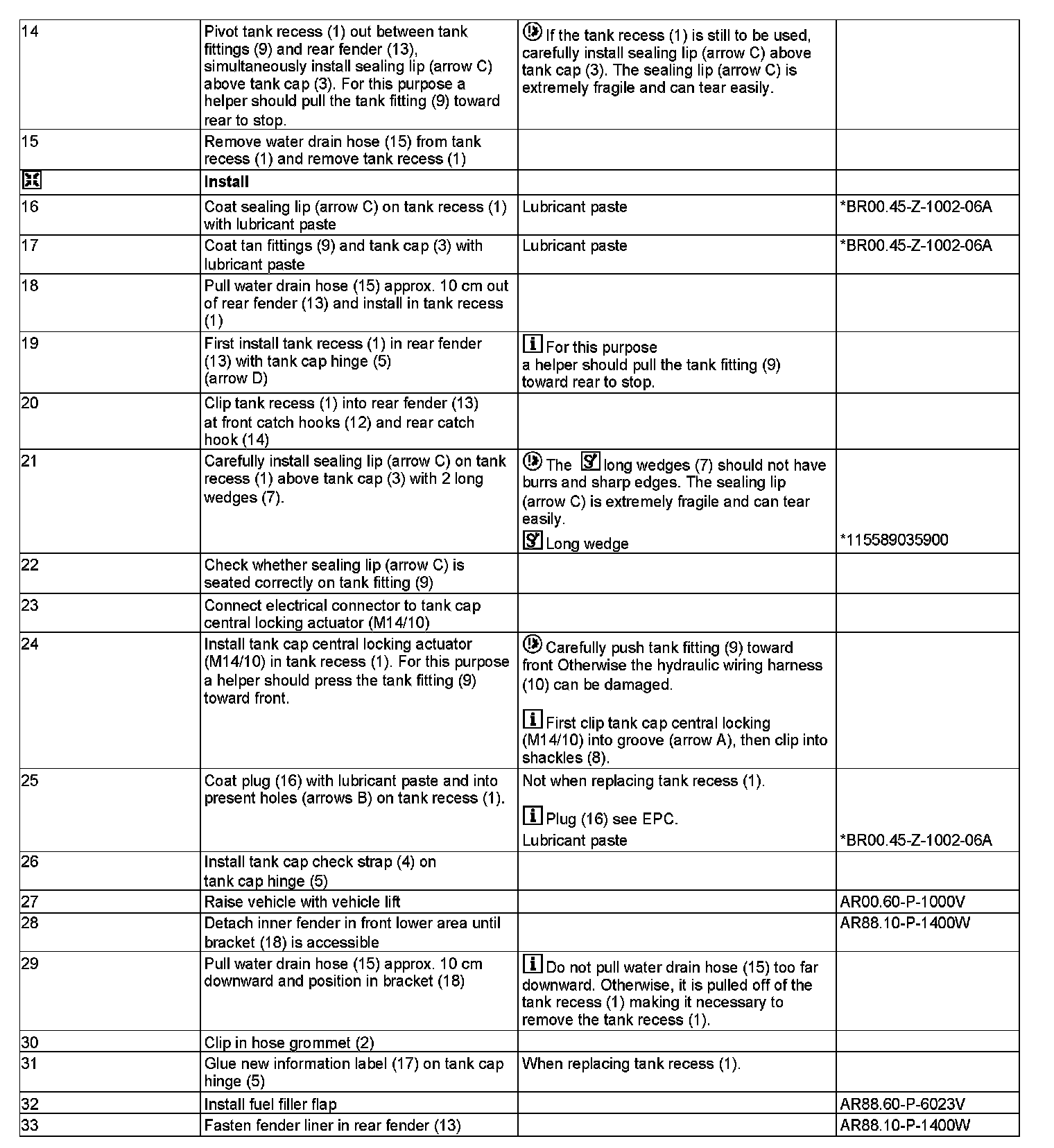

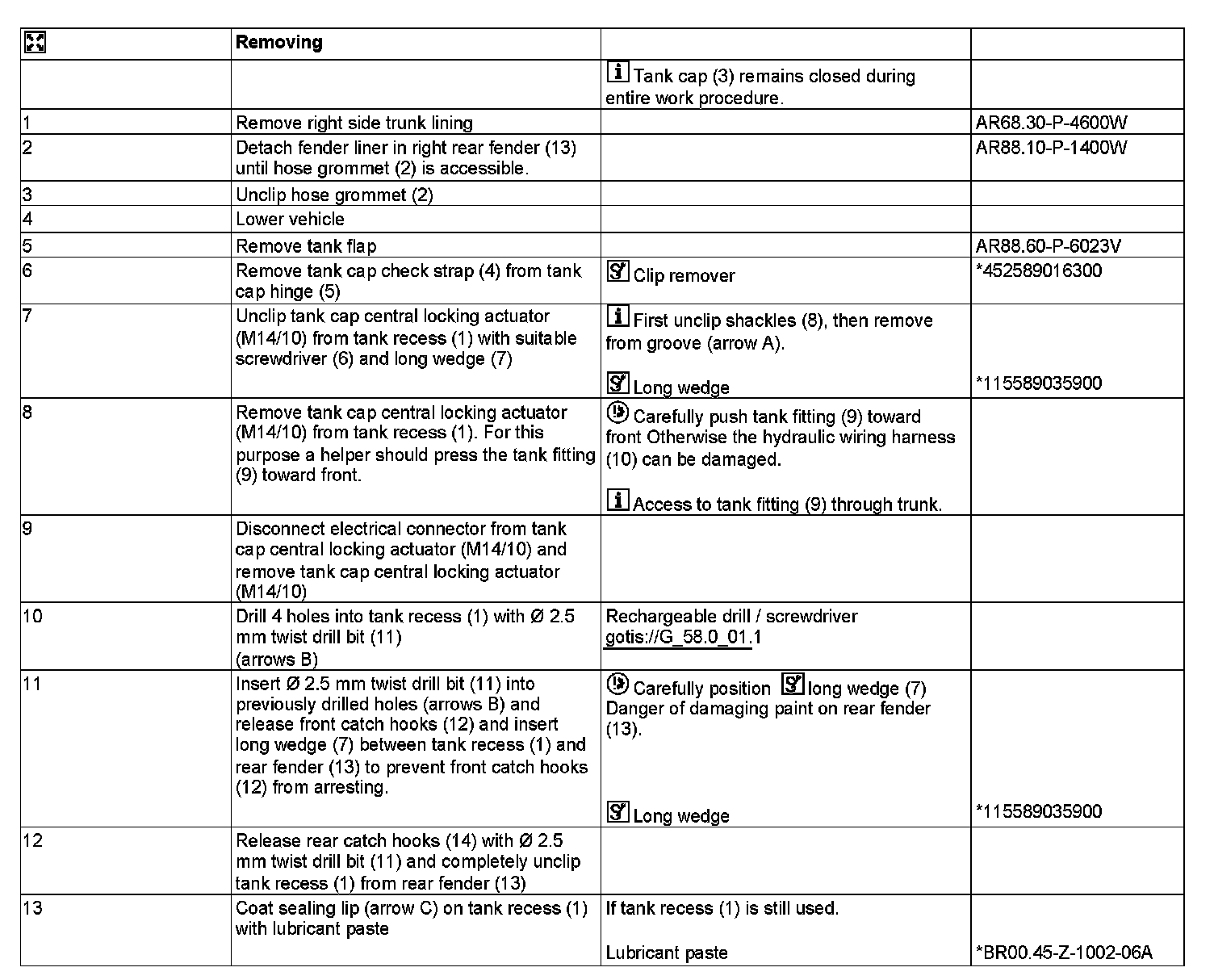

AR88.60-P-2000W Remove/Install Tank Recess

AR88.60-P-2000W Remove/Install Tank Recess
MODEL 172.4

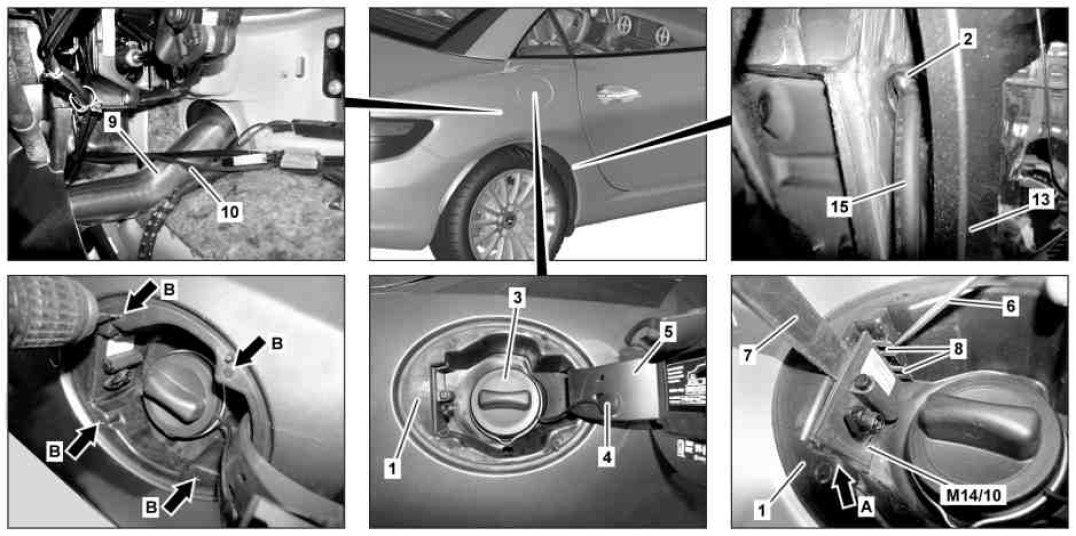

1 Tank recess
2 Hose grommet
3 Fuel tank cap
4 Tank cap check strap
5 Tank cap hinge
6 Screwdriver
7 Long wedge
8 Lugs
9 Fuel tank neck
10 Hydraulic wiring harness
13 Rear fender
15 Water drain hose

M14/10 Tank cap central locking actuator

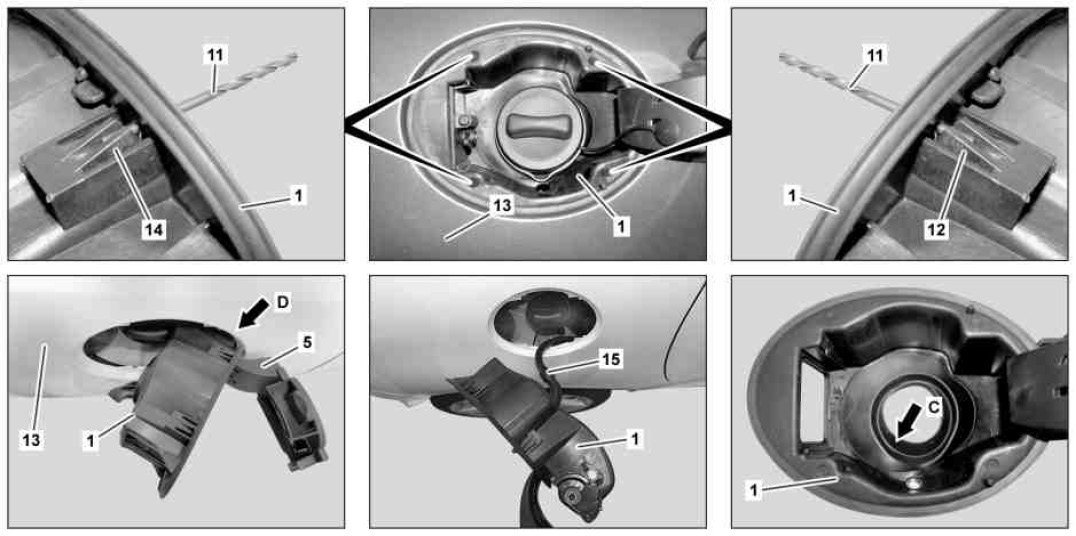

1 Tank recess
5 Tank cap hinge
11 Twist drill bit, diameter 2.5 mm
12 Front catch hook
13 Rear fender
14 Rear catch hook
15 Water drain hose

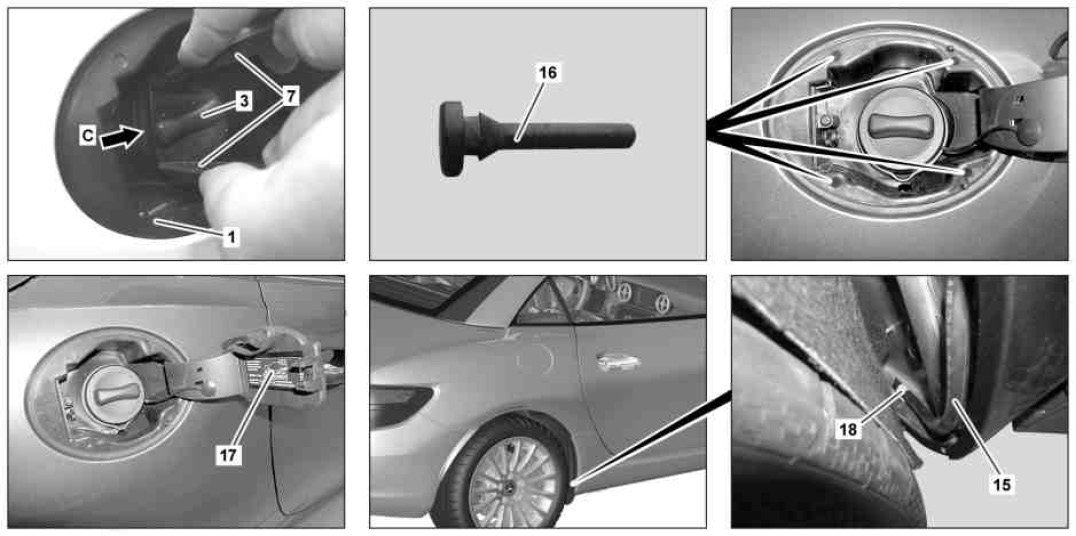

1 Tank recess
3 Fuel tank cap
7 Long wedges
15 Water drain hose
16 Plug
17 Information sticker
18 Bracket

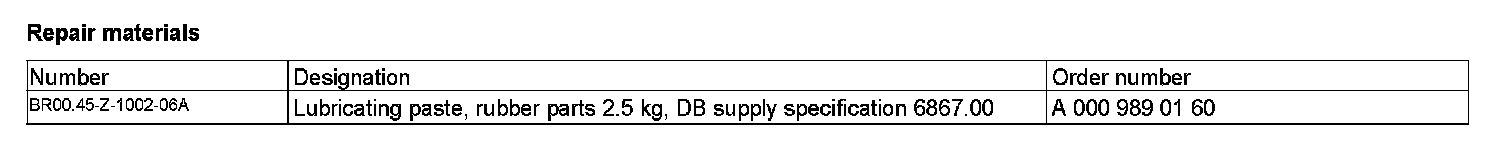

115 589 03 59 00
Long wedge





452 589 01 63 00
Snap-release tool
