Front Door: Service and Repair

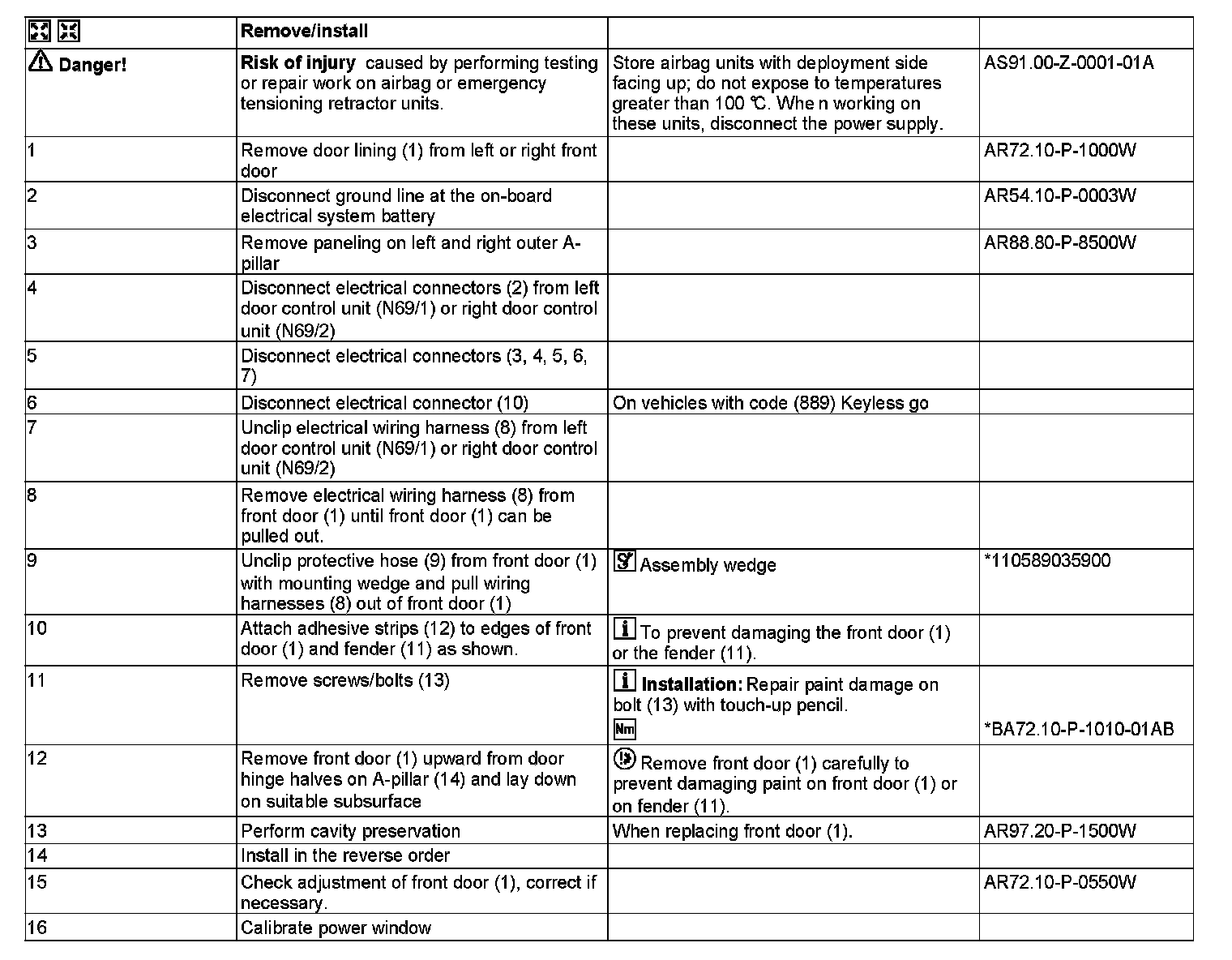

AR72.10-P-0500W Remove/Install Front Door
MODEL 172.4





Shown with code (889) Keyless Go

1 Front door
2 Electrical connectors
3 Electrical connector
4 Electrical connector
5 Electrical connector
6 Electrical connector
7 Electrical connector
8 Wiring harness
9 Protective tubing
10 Electrical connector (with code (889) Keyless Go)
11 Fenders
12 Adhesive tape strips

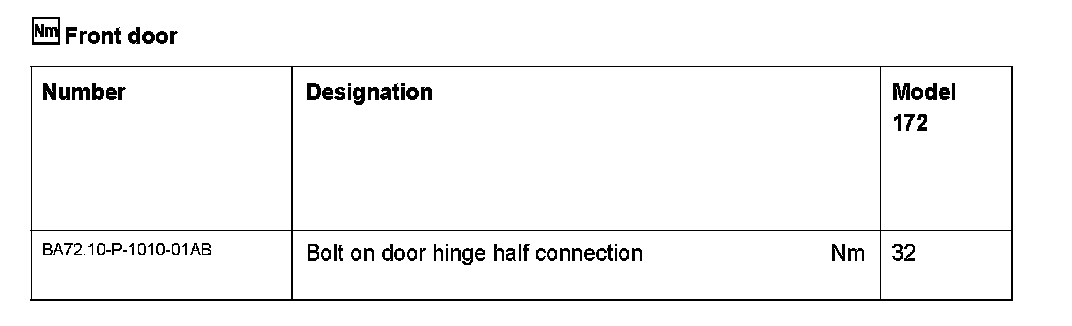

13 Bolts
14 Door hinge half, A-pillar

N69/1 Left door control unit
N69/2 Right door control unit














110 589 03 59 00
Mounting wedge
