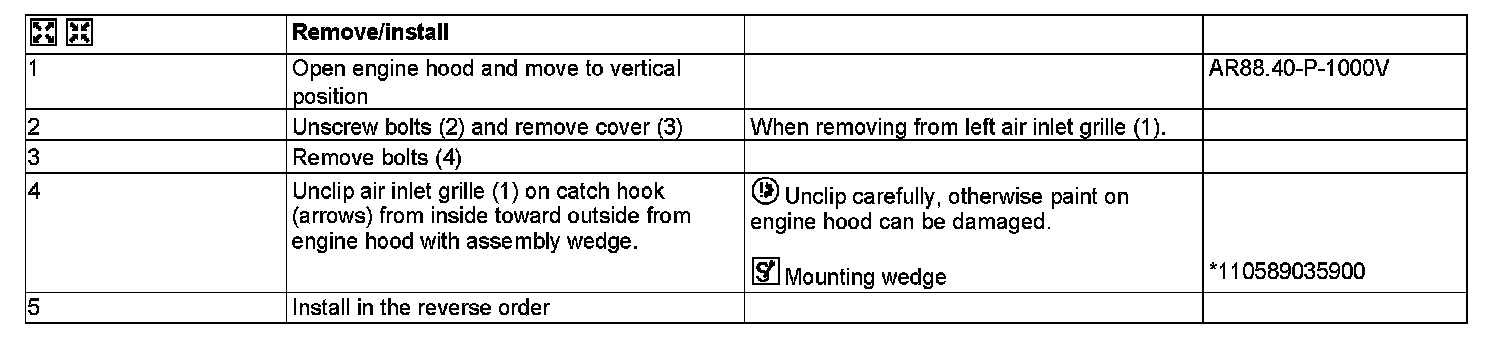

AR88.40-P-3001W Remove/Install Air Inlet Grille on Engine Hood

AR88.40-P-3001W Remove/Install Air Inlet Grille on Engine Hood
MODEL 172.4

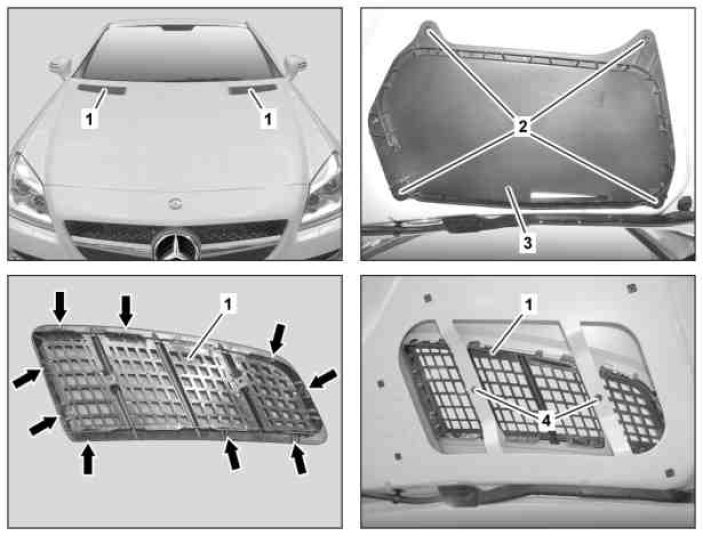

1 Air inlet grille
2 Bolts
3 Cover
4 Bolts








110 589 03 59 00
Mounting wedge
