Removal and Replacement

AR88.20-P-2200W Remove/Install Rear Bumper
MODEL 172.4

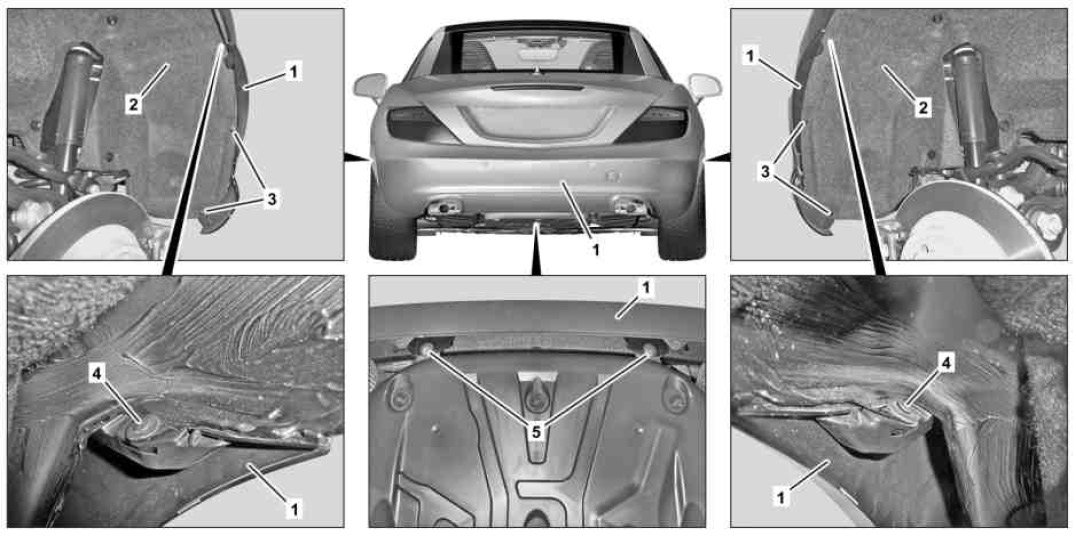

1 Rear bumper
2 Fender liner
3 Expansion clip
4 Expansion clip
5 Bolts

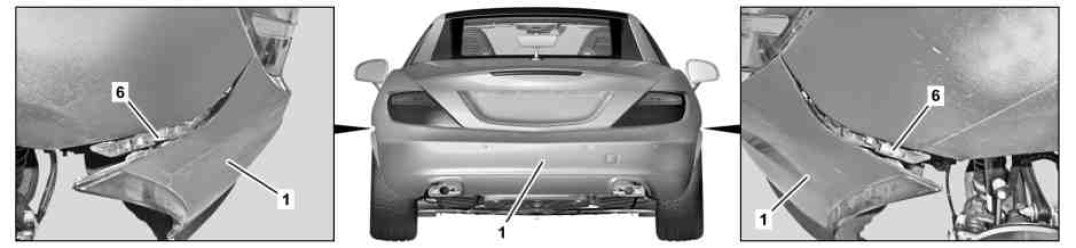

1 Rear bumper
6 Retaining rail

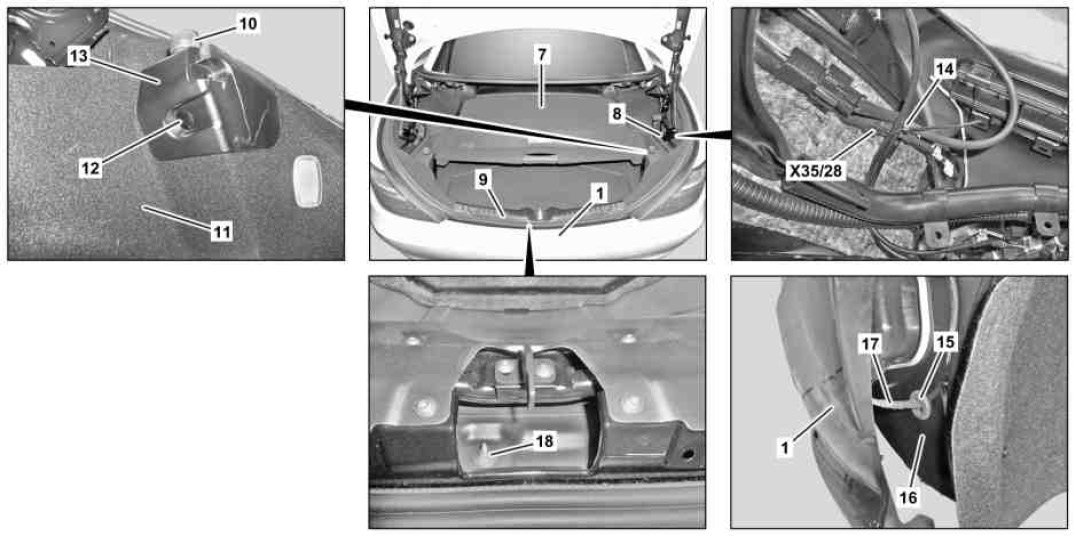

1 Rear bumper
7 Trunk partition
8 Brush frame
9 Rear center section paneling
10 Rubber pad
11 Side luggage compartment lining
12 Expansion clip
13 Support
14 Cable tie (with code (230) Exclusive parking assist)
15 Grommet (with code (230) Exclusive parking assist)
16 Rear fender
17 Wiring harness (with code (230) Exclusive parking assist)
18 Nut

X35/28 Electrical connector for rear bumper parking system (with code (230) Exclusive parking assist)











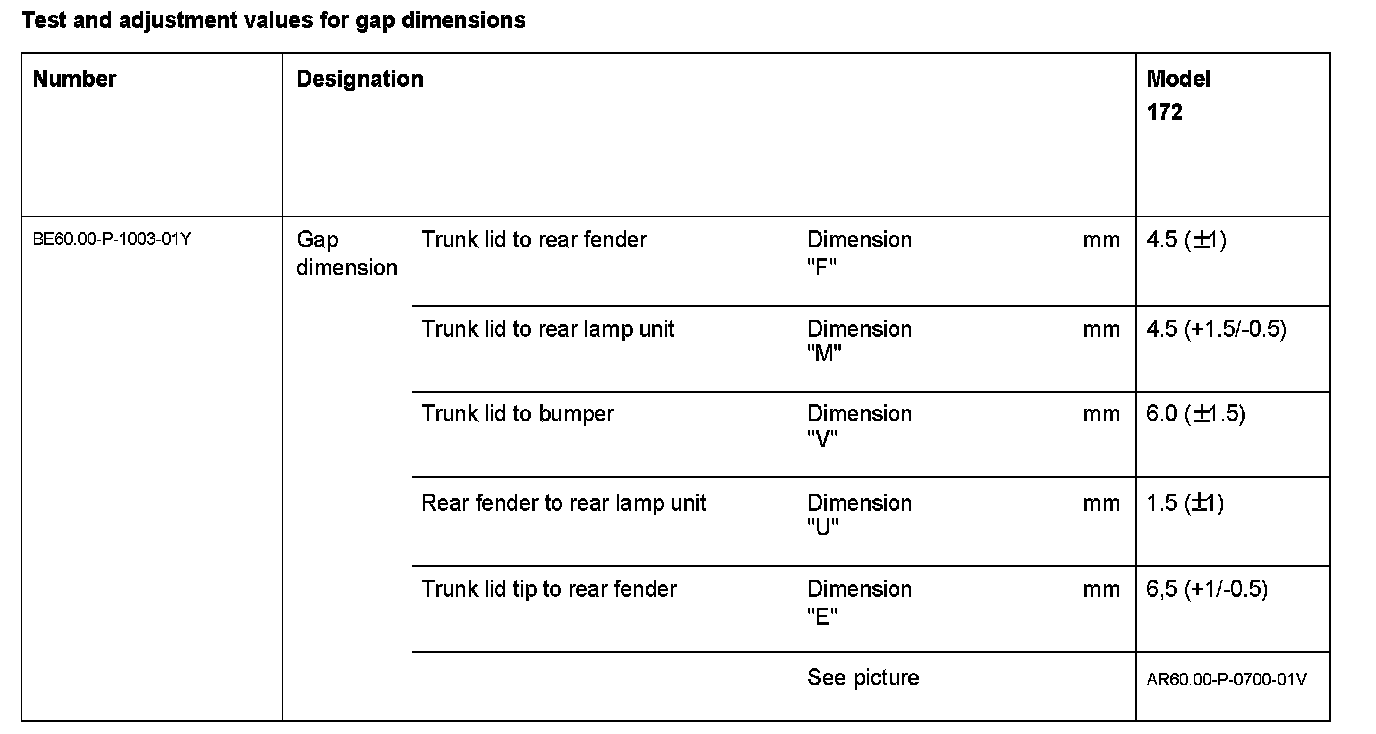

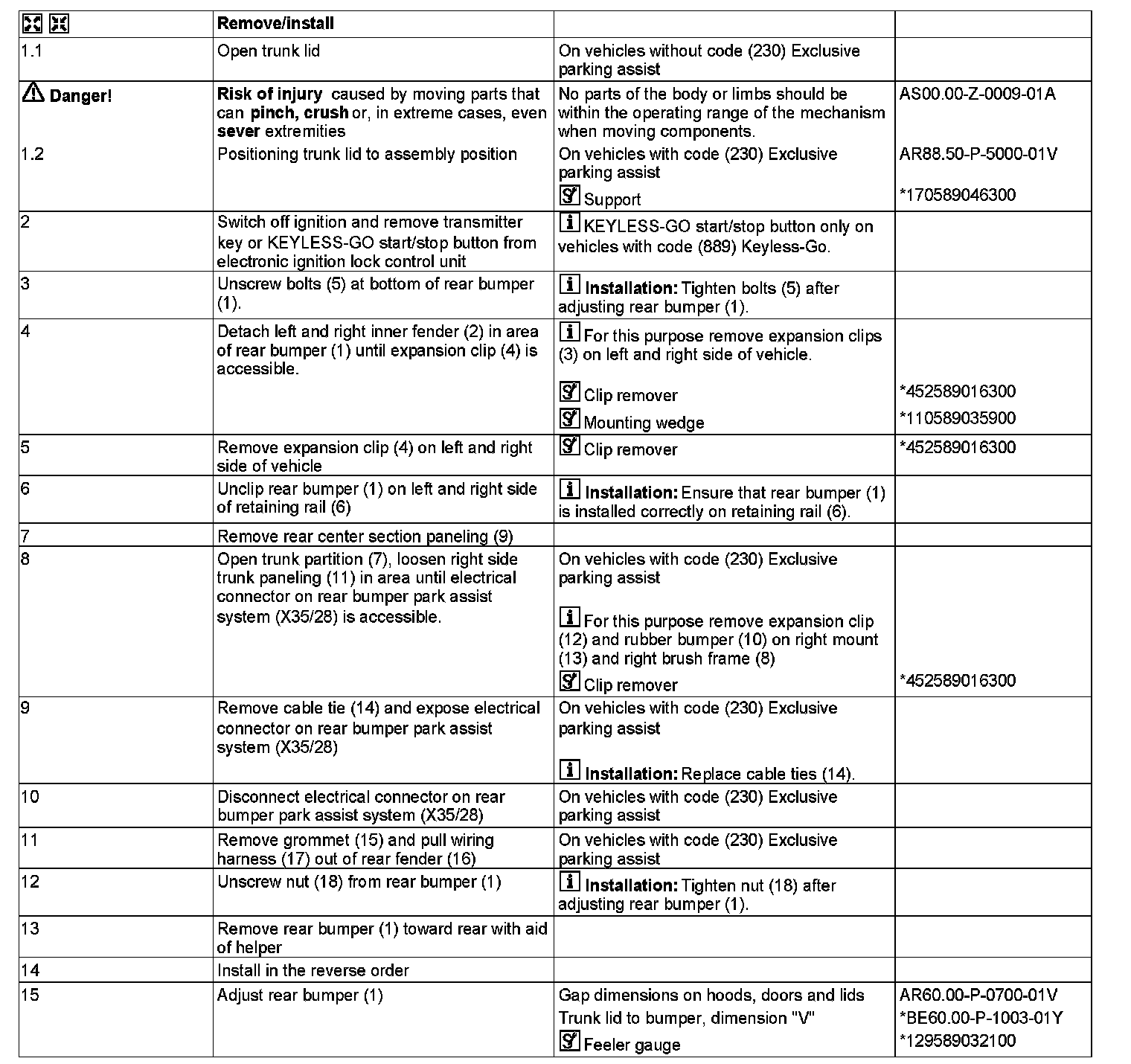

110 589 03 59 00
Mounting wedge





129 589 03 21 00
Feeler gauge





170 589 04 63 00
Support





452 589 01 63 00
Snap-release tool
